POSMarket SKU: Z2242
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

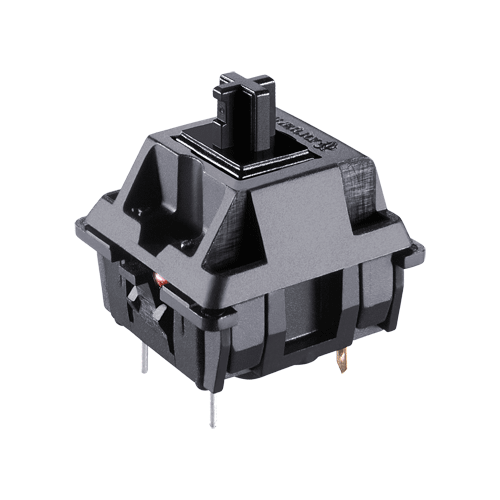

The Original Key module with CHERRY Gold Crosspoint Technology, Black Switch without pressure point, linear actuation
| Switch type: | MX |
| Protection class: | IP40 |
| Operation characteristics: | BLACK SWITCH Linear (60 cN) |
| Fastening: | Product dependant, see table Models |
| Switching voltage: | 12 V AC/DC max. |
| Switching current: | 10 mA AC/DC max. |
| Dielectric strength: | 500 V / 50Hz |
| Durability: | > 50 million actuations |
| Contact configuration: | Single-pole contact |
| Actuator travel: | 4.0 -0.4 mm |
| Pretravel: | 2 ± 0.6 mm |
| Initial force: | 30 cN min. |
| Actuation force: | 60 ± 20 cN |
| Bounce time: | < 5 ms (during actuation with 0,4 m/s) |
| Standard lead spacing: | 19.05 mm (16 mm min.) |
| Lighting: | Product dependant, see table Models |
| Decoupling diode: | Product dependant, see table Models |
| Wire jumper: | Product dependant, see table Models |
| Insulation materials: | Thermoplastics (min.UL 94 HB) |
| Spring: | Stainless steel |
| Contacts: | High-quality gold alloy |
| Storage Temperature: | 5 C to 40 C |
| Operating Temperature: | -40 C to 70 C |
| Humidity: | Storage: average <50% max. 3 months / 75% max. 15 days, operation: 5% to 95% without condensation |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| MX1A-11DW | Keyswitch MX1A-11DW | $CALL | ||
| MX1A-11NW | Keyswitch MX1A-11NW | $CALL |
| Filename | Size | ||
|---|---|---|---|
 |
Cherry MX1A Datasheet | 37KB | Download |
