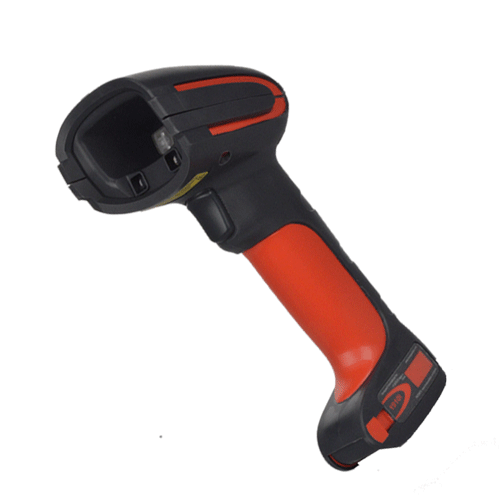

Honeywell IT1910i

$CALL

POSMarket SKU: Z2118

1910iER-3USB: Industrial Scanner with USB Cable

The Granit 1910i industrial-grade, area-imaging scanner is designed to withstand the varied demands that exist in harsh working environments. Featuring a custom built housing that is redefining the standard for scanner reliability, the IP65 rated 1910i is built to survive 5000 1 m tumbles and 50 drops to concrete from 2 m even at -30 Degrees C. As a result, businesses deploying this industry leading offering can expect to experience minimal device downtime and a lower overall cost of ownership.

Product Rating
Product Overview
  • Industrial-Grade Area-Imaging Scanner
  • Class-Leading Durability
  • Optimized for Scanning-Intensive Industrial Applications
  • Outstanding Scan Performance on Poor Quality and Damaged Bar Codes
  • Extended Linear Depth of Field
  • Remote MasterMind Scanning Management Software
Product Specifications
Scan EngineAdaptus 6.0 Area Imager
Light SourceRed LED
Scan PatternArea Imager (838 x 640 pixel array)
Motion ToleranceUp to 610 cm/sec (240 Inch/sec) at 16.5 cm
361 cm/s (150 Inch/sec) at 25 cm
both on 13 mil UPC barcode
Image CaptureBinary,TIFF or JPEG output
Capture AreaVGA, 838 x 640
Contrast Ratio20% Minimum reflective difference
Resolution1D Code 39 Max. 0.127 mm / 5 mil
2D Datamatrix 0.191 mm / 7.5 mil
Depth of fieldCode 39: 7.5 mil - 4.8 to 31.0 cm
Code 39: 20 mil - 1.5 to 74.9 cm
UPC: 13 mil - 1.5 to 54.3 cm
EAN-13: 13 mils - 1.5 to 54.3 cm
Data Matrix: 10 mil - 7.1 to 26.1 cm
PDF417: 6.7 mil - 6.9 to 22.6 cm
QR Code: 20 mils - 2.0 to 49.5 cm
Performance may be impacted by Bar code quality and environmental conditions
Tilt AngleER Focus: Horizontal 31.6 Degree, Vertical 24.4 Degree
Pitch Angle45 Degree
Skew Angle65 Degree
Ambient Light Immunity0 to 100,000 Lux
Symbologies supported1D: Codabar, CODE 3 of 9 including PARAF, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, Code 11, Code 93, Code 128, UPC, EAN/JAN, GS1 Databar.
2D: PDF417, MicroPDF417, Maxicode, Data Matrix, QR Code, Aztec, Aztec Mesas, Code 49 & EAN-UCC Composite.
Postal: Australian 4-state, Postnet, Planet Code, British Post, Canadian Post, Japanese Code, KIX
Programming MethodScan codes in Manual
Remote MasterMind Scanner Management Software
Indicators/ControlsGood read indicators: Bright LED's, Enhanced Beeper Volume and Vibrator
InterfacesUSB, Keyboard Wedge and RS232 TTL Multi Interface
Supply Voltage4.0 to 5.5 VDC
Power ConsumptionOperating: 2.35W (470 mA @ 5VDC)
Standby: 0.5W (100 mA @ 5 VDC)
Drop SpecificationDesigned to withstand 50 x 2M drops to concrete at -30 Degree C
Environmental SealingIP65
ESD Protection+/- 20 kV air discharge
+/- 8 kV contact discharge
Operating Environment-30 Degree ~ 50 Degree C, Relative Humidity up tp 95% none condensing
Storage Environment-40 Degree ~ 70 Degree C, Relative Humidity up tp 95% none condensing
External Dimensions (WxDxH)75 x 133 x 195 mm
Weight300 g
ModelDescriptionPriceStock
1910iER-3USB Industrial Scanner with USB Cable $CALL
Call
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document Honeywell IT1910i Datasheet 151KB Download
Product Videos
No videos found for this product.

Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
