Product Overview

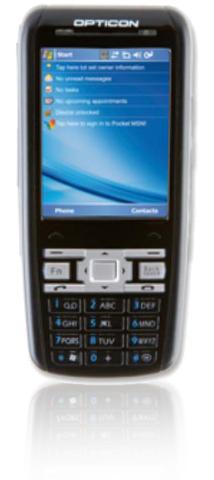

The H19A is a high-performance Quad-band PDA with an integrated 1D scan engine, a dial keypad, multiple modes of wireless communication (GSM/GPRS/EDGE, WiFi and Bluetooth) and a GPS receiver to offer mobile flexibility and position tracking.
The barcode scanner allows you to collect data, interact with your mobile software solution and send your information to a central ERP system. The H19 can withstand multiple drops to concrete from 1.2 meter as well as adverse environmental conditions, with its IP 54 compliant design.
All-in-one
Micosoft Windows Mobile 6 Professional features Direct Push e-mail technology, Internet browsing, synchronization with Outlook Mobile Calendar, Contacts and e-mail, and the ability to work on applications in the Office Mobile suite such as Word, Excel and PowerPoint. With the featured 2.8-inch color LCD, the H19 can also be used for touch screen operations such as signature capturing.
GPS integration
The H19 is standard equipped with GPS. Your workforce can also record the geographical location with other registrations, like adding real-world coordinates (X,Y) to the scanned data.
Functionality: Memory FlashROM: 512 MB. Memory RAM: 64 MB. Memory Expansion: external mini SD.
Microprocessor: Samsung S3C2440A 400 Mhz. Display: 2.8 in Transflective TFT LCD with backlight, 240 x 320 pixels, 16-bit color.
Indicators: 2 LEDS (red/orange/green/blue), speaker, vibrate.
Input devices: Touch panel with stylus, 2 scan keys, alphanumeric keypad, virtual keyboard, hand writing recognition, 5-way direction keys, hot keys, phone buttons.
O/S: Windows Mobileâ„¢ 6 Professional.
Operation
CPU Samsung S3C2440A 400 Mhz
O/S Windows Mobile™ 6 Profesional
Software Excel Mobile, Powerpoint Mobile, Word Mobile, Internet Explorer, ActiveSync, Internet sharing, Pocket MSN, Phone application, Opticon Scanner application, Accessories
RTC Supports year, month, day, hour, minute, second (leap year supported)
Memory
FlashROM 512 MB
RAM 128 MB
Expansion User accessible mini SD
Display
Type Graphic Transflective TFT LCD with touch panel, 16-bit color with adjustable backlight
Size 2.8”, 240 x 320 pixels
Mode Portrait / Landscape
Operating indicators
Visual 2 LEDS (red/orange/green/blue)
Non-visual Vibrate, Speaker (.wav)
Operating keys
Entry options 24 keys total, 12 key (alpha)numeric keypad, 5-way navigation keys, function key, backspace key, 1 power key, 2 hot keys, 2 phone keys, reset key, volume key, voice record, 2 scan keys, virtual keyboard, handwriting recognition
Communication
USB Mini USB, Ver. 1.1, client
Bluetooth Ver. 1.2, range up to 10 m
W-LAN WiFi, IEEE.802.11b/g
Telecom GSM/GPRS/EDGE, quad-band 850/900/1800/1900, GSM Class 12, EDGE Class 10
GPS NMEA 0183, SiRF Star III, 57.6 kbps
Audio Speaker/microphone (mono), headset connector (stereo)
Extension User accessible miniSD I/O
Power
Rechargeable battery Lithium-Ion Polymer, 4.2 V 1440 mAh
High-capacity battery Optional 4.2 V 2600 mAh
Backup battery Lithium rechargeable
Operating time Talk time 4 hours, Standby time 150 hours
Data retention time Backup Battery 5 minute RTC after main battery removal, 168 hours RTC in main battery low power
Charging method Enclosed power supply, separate USB Cable, separate car charging adapter, separate cradle CRD19 series with spare battery bay
Battery charging time Ca. 4 or 8 hours when charging through Power supply, Ca. 6 or 12 hours when charging by USB cable connected to PC (resp. standard or High-capacity battery)
Barcode scanner Optics
Light source 650 nm visible laser diode
Scan rate 100 scans/sec
Reading pitch angle -35 to 0°, 0 to +35°
Reading skew angle -50 to -8°, +8 to +50°
Reading tilt angle -20 to 0°, 0 to +20°
Curvature R>15 mm (EAN8), R>20 mm (EAN13)
Min. resolution at PCS 0.9 0.127 mm / 5 mil
Min. PCS value 0.45
Depth of field 65 - 645 mm / 2.56 - 25.39 in (1.0 mm / 39 mil), 45 - 415 mm / 1.77 - 16.34 in (0.5 mm / 20 mil), 45 - 255 mm / 1.77 - 10.04 in (0.25 mm / 10 mil), 45 - 145 mm / 1.77 - 5.71 in (0.15 mm / 6 mil), 55 - 115 mm / 2.17 - 4.53 in (0.127 mm / 5 mil), at PCS 0.9 Code 39
Supported Symbologies
Barcode (1D) JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 39, Code 93, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code Chinese Post, Korean Postal Authority code
2D code Composite Codes, MicroPDF417, PDF417
Durability
Temperature in operation -10 to 50 °C / 14 to 122 °F
Temperature in storage -20 to 60 °C / -4 to 140 °F
Humidity in operation 20 - 80 % (non-condensing)
Humidity in storage 20 - 90 % (non-condensing)
Drop test 1.2 m / 4 ft drop onto concrete surface
Protection rate IP 54
Physical
Dimensions (w x h x d) 62.3 x 140.8 x 25.5 mm / 2.45 x 5.54 x 1.00 in
Weight body Ca. 195 g / 6.9 oz (incl. battery)
Case Black
Regulatory & Safety
Product compliance CE, FCC, VCCI, PTCRB, GCF, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II
