SIFER 994750

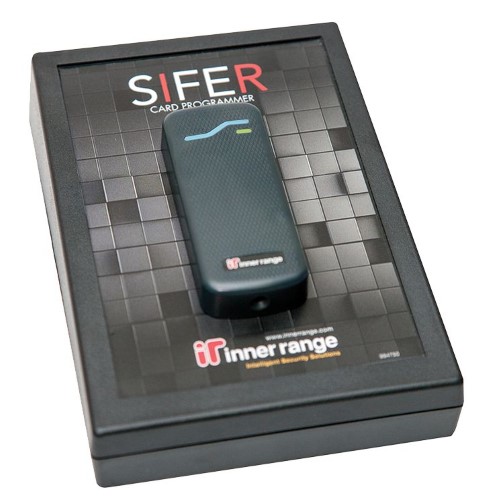

The SIFER Card Programming Station is an installer tool featuring a USB connected SIFER programming head, which is used in conjunction with the accompanying SIFER Card Programming Software. This system allows SIFER "User Programmable" cards, known as SIFER-U cards to be encoded with customised site codes and encryption keys by the installer. The programming station is also used to create the SIFER Reader Configuration Card which is necessary to configure SIFER readers to decrypt the sites unique encryption key.

The SIFER-U cards are available as ISO style cards or FOBS and are readily available from Inner Range distributors. Before leaving the Inner Range factory each SIFER-U cards is pre-programmed, with a standard encryption key, site code and unique card number. This allows SIFER-U cards to be used in the field as they are, or they can be encoded to the installers requirements using the SIFER Programming Station.

The SIFER card reader is a Smart Card reader designed and manufactured by Inner Range. It is a multi-drop RS-485 based reader that employs 128 bit AES encryption from the card through to the door module, providing a far superior level of security than that of traditional Wiegand based card readers. SIFER readers utilise the Mifare DESfire EV1 card format.

Features

• Secure 128bit AES Encryption
• Encrypted from Card to Access Module
• Mifare DESfire EV1 Card Format
• Water & Dust Resistant to IP67
• Vandal Resistant (fully potted)
• Flexible LED Assignment
• Audible Buzzer (can use as DOTL)
• Multi-drop RS-485 Reader LAN
• Individual Reader Heartbeat Monitoring
• Integriti Auto Reader Discovery
• OSDP Compatible
• Compatible With Inner Range Encrypted SIFER Cards
• Support For Custom Site Codes and Site Specific Encryption
• Global Configuration from Integriti Software (including firmware updates)
• Read-Write Functionality
• Small Footprint (dimensions: 39 (W) x 93 (H) x 15 (D) mm)
