Integriti IK-996001
$3,396.25 (incl. GST)
POSMarket SKU: Z15969
IK-996001: ISC Controller Kit, 32 Zone, 8 Aux Relay
ISC Controller Kit, 32 Zone, 8 Aux Relay
Product Overview

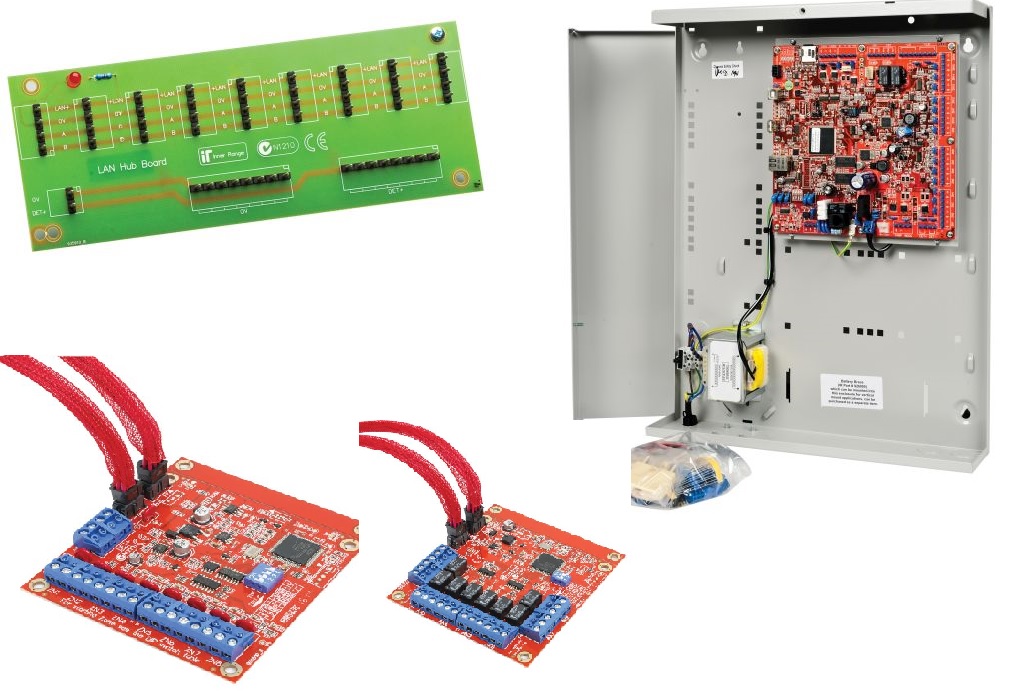

This ISC Controller kit contains the following components:
1 x LAN Hub Board 9-Way RS485 Hub with DET Plus & Minus Power Hub

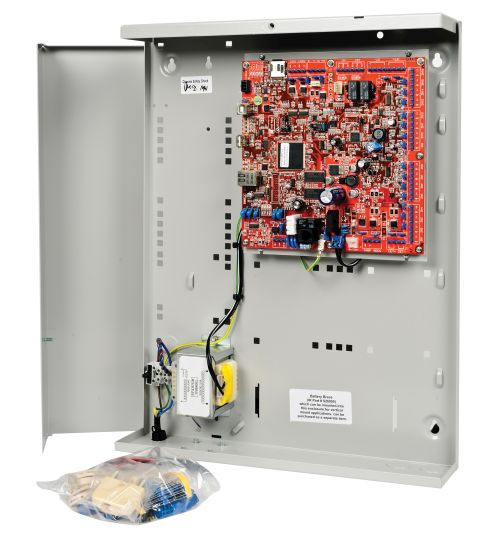

1 x Integriti Security Controller (ISC) in Medium Powered Enclosure
2 x Integriti UniBus 8 Input Expander to suit ISC / IOEXP
1 x Integriti UniBus 8 Relay Output Expander to suit ISC / IOEXP

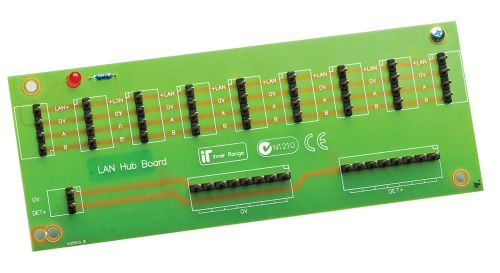

LAN Hub Board 9-Way RS485 Hub with DET Plus & Minus Power Hub
The LAN Hub board makes it simple to keep your Concept LAN systematic and manageable. Four types of passive LAN HUBs are available for the distribution of Concept RS-485 networks and detector +/- power. The 995910 provides a single 9-Way HUB with additional terminals for detector positive and zero volt connections.
The Integriti Security Controller (ISC) is an IP-based master controller for the Integriti modular hardware system. Equipped with 16 Zone Inputs, 2 Auxiliary Relay Outputs, Power Supply, Ethernet Port, Modem, and Internal/External Siren outputs, the ISC can be used either stand-alone or expanded further via its UniBus and RS-485 Sub-LAN ports. The flexible, modular design of the ISC allows a single stand-alone controller to be expanded to form a network of IP or RS-485 expansion modules supporting up to 3,000 Zone Inputs, 3,000 Outputs, 250 Areas and over 1,000 Card Readers and 250 Doors. User capacity of up to 100,000 users is available, and capacity for 1,000,000 users is also available with the User Expansion Kit (Part. 996002L5)

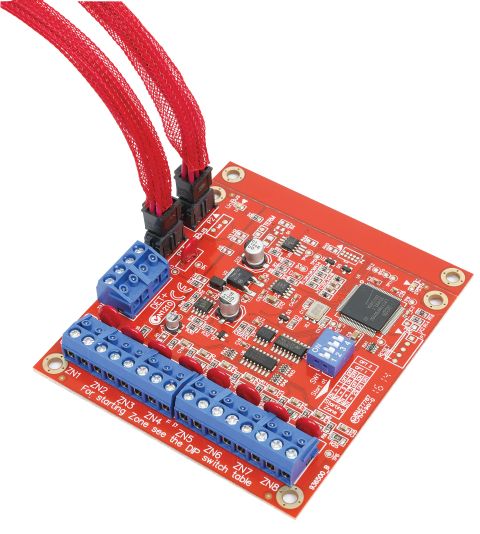

Integriti UniBus 8 Input Expander to suit ISC / IOEXP
The UniBus 8 relay output expander board provides eight independent, high current normally open or normally closed relay outputs, offering a general purpose interface in applications such as warning devices (strobes, etc.), building automation, process control and access control. The board is connected directly to the host module or another UniBus Board via the UniBus cable supplied.

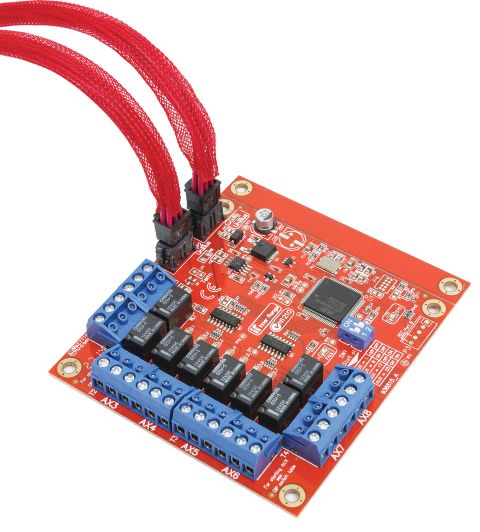

Integriti UniBus 8 Relay Output Expander to suit ISC / IOEXP
The UniBus 8 relay output expander board provides eight independent, high current normally open or normally closed relay outputs, offering a general purpose interface in applications such as warning devices (strobes, etc.), building automation, process control and access control. The board is connected directly to the host module or another UniBus Board via the UniBus cable supplied.
1 x LAN Hub Board 9-Way RS485 Hub with DET Plus & Minus Power Hub
1 x Integriti Security Controller (ISC) in Medium Powered Enclosure
2 x Integriti UniBus 8 Input Expander to suit ISC / IOEXP
1 x Integriti UniBus 8 Relay Output Expander to suit ISC / IOEXP
LAN Hub Board 9-Way RS485 Hub with DET Plus & Minus Power Hub
The LAN Hub board makes it simple to keep your Concept LAN systematic and manageable. Four types of passive LAN HUBs are available for the distribution of Concept RS-485 networks and detector +/- power. The 995910 provides a single 9-Way HUB with additional terminals for detector positive and zero volt connections.
- LED power indicator
- Supplied complete with terminal blocks and mounting posts or self-adhesive mounts
- 180mm(L) x 70mm(W)
The Integriti Security Controller (ISC) is an IP-based master controller for the Integriti modular hardware system. Equipped with 16 Zone Inputs, 2 Auxiliary Relay Outputs, Power Supply, Ethernet Port, Modem, and Internal/External Siren outputs, the ISC can be used either stand-alone or expanded further via its UniBus and RS-485 Sub-LAN ports. The flexible, modular design of the ISC allows a single stand-alone controller to be expanded to form a network of IP or RS-485 expansion modules supporting up to 3,000 Zone Inputs, 3,000 Outputs, 250 Areas and over 1,000 Card Readers and 250 Doors. User capacity of up to 100,000 users is available, and capacity for 1,000,000 users is also available with the User Expansion Kit (Part. 996002L5)
Integriti UniBus 8 Input Expander to suit ISC / IOEXP
The UniBus 8 relay output expander board provides eight independent, high current normally open or normally closed relay outputs, offering a general purpose interface in applications such as warning devices (strobes, etc.), building automation, process control and access control. The board is connected directly to the host module or another UniBus Board via the UniBus cable supplied.
Integriti UniBus 8 Relay Output Expander to suit ISC / IOEXP
The UniBus 8 relay output expander board provides eight independent, high current normally open or normally closed relay outputs, offering a general purpose interface in applications such as warning devices (strobes, etc.), building automation, process control and access control. The board is connected directly to the host module or another UniBus Board via the UniBus cable supplied.
Product Specifications
| Security Controller | |
| Part number | 996001AUPS |
| Physical | |
| Enclosure Dimensions | Medium size enclosure 460(L) x 358(W) x 85(D) (mm) |
| PCB Dimensions | 200(L) x 200(W) x 45(D) (mm) |
| Shipping Weight | 6.5kg (In medium enclosure with mains transformer and cover) |
| Installation Environment | 0ºC - 50ºC @15% - 90% Relative humidity (non-condensing) |
| Cabinet Battery Bracket | To suit 12V 7AH sealed lead acid battery |
| Electrical | |
| Power Supply Type | Type A (EN50131-1) |
| Transformer Input Voltage | 240V AC -10% / +10%. 50Hertz |
| Transformer Output | 16.5V AC. 50 Hertz |
| Current Consumption | Maximum 500 mA from 240V AC Source |
| Fuse Protection | Separate AC mains input fuse. 1.0 AMP Slow Blow M205 (20mm) |
| PCB AC Input Voltage | 16 to 18V AC. 50/60 Hertz |
| Battery Charger Output | 13.75VDC -0.15/+.05 V (AC power required) |
| 12V, Sealed Battery Capacity | Use 7.2AH or 18AH Lead Acid Type: Max 18AH |
| Battery Input Fuse | 5 Amperes |
| Low Battery Alarm | < 11V DC +/- 100mV |
| Deep Discharge Protection | Activates at 10.4 V +/-100mV. Restores at 12.4V +/- 100mV |
| LAN “POS†& DET | Output Voltage: 13.75V DC -0.15/+.05 V (When AC power Present) |
| LAN “POS†& DET+ Smartfuse trip current | 2 Amperes |
| Maximum Ripple | At maximum ancillary load current: < 200mV P-P / 75mV RMS |
| Low DC Voltage Alarm | < 11V DC +/- 100mV |
| Siren Drivers | Each capable of driving a 4 Ohm speaker (or 2 x 8 Ohm in parallel) |
| RS-485 & UniBus Parameters | |
| UniBus In-Cabinet Expansion | Up to 6 UniBus devices |
| RS-485 Sub-LAN | Up to 250 RS-485 Sub-LAN Modules (maximum of 99 of any one type) |
| UniBus 8 Zone Expander | |
| Part number | 996500PCB&K |
| Physical | |
| PCB Size Code | Integriti “C†size |
| PCB Size | 94(L) x 94(W) (mm) |
| PCB size including snap off strip | 105(L) x 94(W) (mm) |
| Height | 15(D) (mm) (28mm with UniBus cable connected) |
| Shipping Weight | 100grams |
| Installation Environment | 0ºC - 70ºC @15% - 90% Relative humidity (non-condensing) |
| Electrical | |
| Power Supply Input | 11V to 14V DC via host module |
| Static Current Consumption | 75mA. (not including detector power) |
| DET | Output Voltage 13.75V DC - sourced from host |
| DET+ Output Current | Limited to available current from host |
| Connections | |
| Zone Inputs | 8 |
| DET+ Out | 4 |
| UniBus Port | 1 |
| UniBus Loop-through Port | 1 |
| Connection to Host Module | Via 270mm UniBus patch lead (supplied) |
| Power Considerations The UniBus host module supplies DET+ current and static device current to all connected UniBus devices. | |
| Total current consumption is, therefore the sum of all | - Static Current of all connected UniBus devices - Static Current of host module - Host module battery charging current - Ancillary devices connected to all DET+ connections - Ancillary devices connected to host module’s RS-485 LAN+ |
| Integriti UniBus 8 Relay Output Expander | |
| Pat number | 996515PCB&K |
| Physical | |
| PCB Size Code | Integriti “C†size |
| PCB Size | 94(L) x 94(W) (mm) |
| PCB Size Including Snap Off Strip | 105(L) x 94(W) (mm) |
| Height | 15(D) (mm) (28mm with UniBus cable connected) |
| Shipping Weight | 161grams |
| Installation Environment | 0ºC - 70ºC @15% - 90% Relative humidity (non-condensing) |
| Electrical | |
| Power Supply Input | 11V to 14V DC via host module |
| Static Current Consumption | 45mA PLUS 16mA per relay Approximately 175mA when all Relays are on. |
| Contact Rating | |
| Maximum Switching Current | 1.0 Amp @ 24VDC. or 0.5 Amp @ 50VAC (Per Relay) NOTE: While the relays have higher AC Voltage contact ratings, the manufacturer does not recommend connection of AC voltages above 50VAC to the relay contact connections. |
| Connections | |
| Relay Contacts | 8 x NO/NC outputs - 24 Connections |
| UniBus Port | 1 |
| UniBus Loop-through Port | 1 |
| Connection to Host Module | Via 270mm UniBus patch lead (supplied) |
| Power Considerations The UniBus host module supplies DET+ current and static device current to all connected UniBus devices. | |
| Total current consumption is, therefore the sum of all | - Static Current of all connected UniBus devices - Static Current of host module - Host module battery charging current - Ancillary devices connected to all DET+ connections - Ancillary devices connected to host module’s RS-485 LAN+ |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| IK-996001 | ISC Controller Kit, 32 Zone, 8 Aux Relay | $3,396.25 | Add to Cart |
