POSMarket SKU: Z16110
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

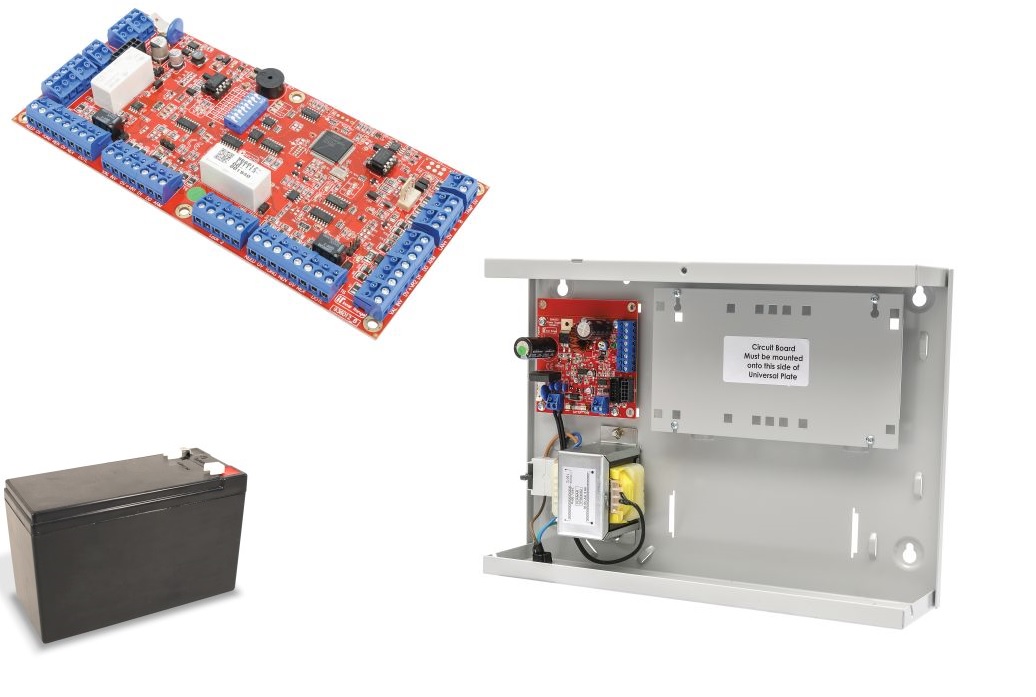

SLAM 2 Door Controller Kit
| Standard 2 Door LAN Access Module (SLAM) | |
| Part number 996012PCB&K | |
| Physical | |
| Enclosure Options | Small - 995200PEI Series - 252(L) x 358(W) x 85(D) (mm) (with 2Amp PSU - houses 1 SLAM) Medium - 995201PEI Series - 460(L) x 358(W) x 85(D) (mm) (with 3Amp SMART PSU - houses up to 3 SLAM’s) XLarge - 995203PEI Series - 702(L) x 358(W) x 85(D) (mm) (with 3Amp PSU - houses up to 5 SLAM’s)* XLarge - 995203PE8 Series - 702(L) x 358(W) x 85(D) (mm) (with 8Amp PSU - houses up to 5 SLAM’s) WideBody - 995204PE8 Series - 580(L) x 510(W) x 95(D) (mm) (with 8Amp PSU houses up to 6 SLAM’s) Rack Mount - 995220PEI Series - 2RU 680(L) x 420(W) x 85(D) (mm) (with 3Amp PSU - houses up to 4 SLAM’s)* |
| PCB Size Code | Integriti “B†size |
| PCB Dimensions | 200(L) x 94(W) x 45(D) (mm) |
| Weight | 8.2 k.g. (Based on medium enclosure, mains transformer, 7AH battery and cover) |
| Installation Environment | 0°C - 70°C @15% - 90% Relative humidity (non-condensing) |
| Electrical (For PCB Only) | |
| Power Supply Input | 11V to 14VDC |
| Current Consumption | 110mA standby. 175mA with lock relays on NOTE: Current consumption does not include the current required by readers or other external devices such as locks, buzzers, lamps or any device attached to the DOTL, Valid, Invalid and RS-485 Reader connections |
| Over Current Protection | Reader +V connections. Protected with self-resetting PTC’s |
| Contact Ratings | |
| Lock Relays | 5 Amps @ 30VDC |
| DOTL Relays | 1 Amp @ 30VDC (Door Open Too Long output) |
| Connections | |
| Lock 1 & 2 | Includes Lock+, Lock-, NO/COM/NC |
| Door 1 & 2 | Includes Reed, 2 x 0v, Tongue, REN, REX, DOTL contacts |
| Wiegand Reader 1 & 2 | Includes Valid, Invalid, 0V, Reader+, D1, D0, ARM |
| Lock Power | Includes Lock+, Lock- connections from external PSU |
| Cabinet Tamper | 2 pin connection for cabinet tamper switch |
| RS-485 LAN | 1, Includes LAN+, LAN-, A, B. (LAN addressing set via DIP switches) |
| RS-485 Reader Port | 1 (allows up to 4 Inner Range SIFER or OSDP compatible readers to be connected via RS-485 multi-drop LAN) |
| External Power Supply Monitoring (Compatible with Inner Range 3 & 8Amp SMART PSU’s) | |
| AC Fail | External PS AC Fail |
| Low Battery | External PS Low Battery |
| LAN Fuse | External PS LAN Fuse |
| Detector Fuse | External PS Detector Fuse |
| Low Volts | External PS Low Volts |
| PSU Fail | External PS Fail |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| IK-996012S3PSB | SLAM 2 Door Controller Kit, Sm. Enclosure, 3 Amp PS, Battery | $1,124.20 | Add to Cart | |
| IK-996012S2PSB | SLAM 2 Door Controller Kit, Sm. Enclosure, 2 Amp PS, Battery | $1,026.99 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
996012PCBK Datasheet.pdf | 4MB | Download |
|
996012PCBK Installation Guide.pdf | 232KB | Download |
