Integriti 996560PCB&K
POSMarket SKU: Z16196

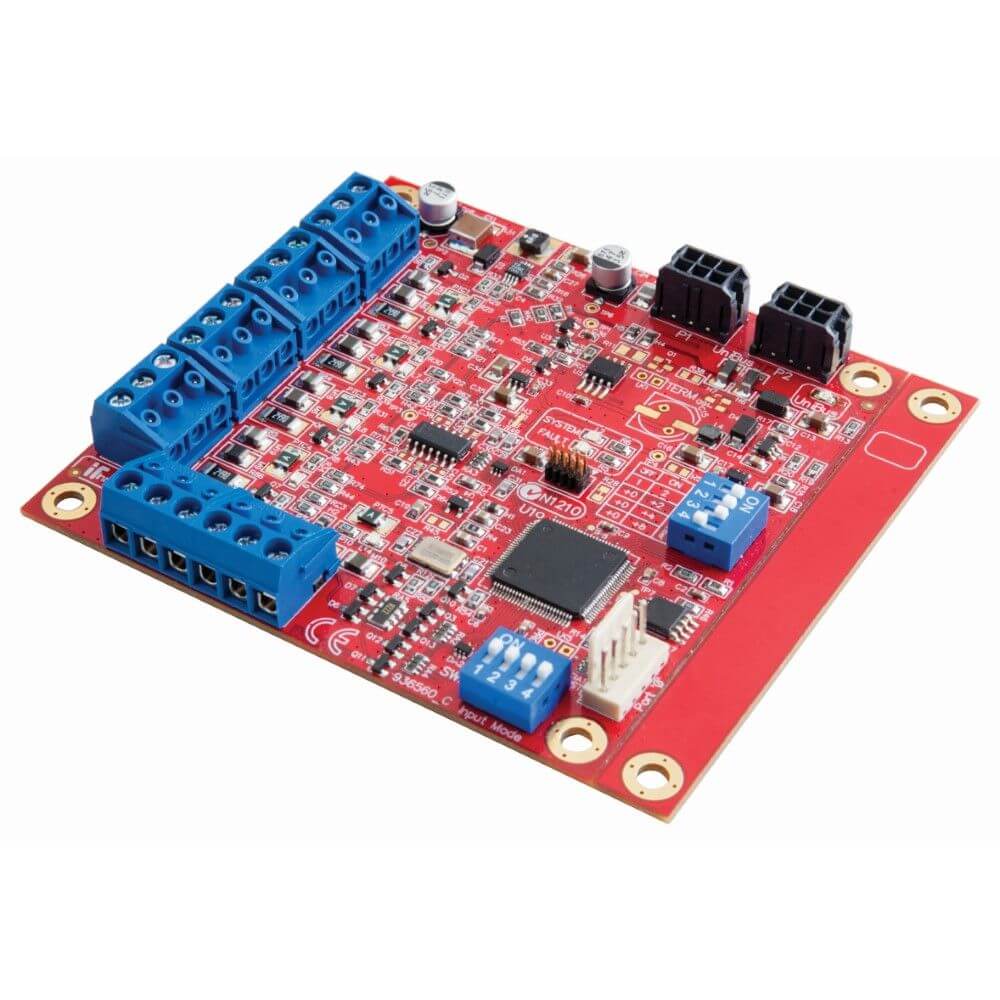

UniBus 4 Analogue Input Expander
Product Overview
Features
- 4 universal analogue zone inputs
- 3 mode options per input - serial, voltage or current loop
- Compatible with Inner Range serial temperature sensor
- Programmable hysteresis setting
- 24V DC output for current loop supply
- UniBus loop-through connectors
- 2 LED status/fault indicators
- Resettable surge protected inputs
Product Specifications
| UniBus 4 Analogue Input Expander | |
| Part number | 996560PCB&K |
| Physical | |
| PCB Size Code | Integriti "C" size |
| PCB Size | 94(L) x 94(W) (mm) |
| PCB size including snap off strip | 105(L) x 94(W) (mm) |
| Height | 15(D)(mm) (28mm with UniBus cable connected) |
| Shipping Weight | 100grams |
| Installation Environment | 0ºC - 70ºC @15% - 90% Relative humidity (non-condensing) |
| Electrical | |
| Power Supply Input | 11V to 14V DC via host module |
| Static Current Consumption | 50mA idle ~ 230mA (Max with all inputs in loop mode supplying 20mA per input) |
| CL+ Outputs | 24V DC Current Loop Output Voltage |
| 1W+ Output | 5VDC for connection to +DAL on 995089 Serial Temperature Sensor |
| Connections | |
| Analogue Inputs | 4 |
| CL+ | 1 per Input |
| 1W+ | 1 |
| Serial Sense Inputs | 4 |
| UniBus Port | 1 |
| UniBus Loop-through Port | 1 |
| Connection to Host Module | Via 270mm UniBus patch lead (supplied) |
| Power Considerations The UniBus host module supplies current and static device current to all connected UniBus devices. | |
| Total current consumption is, therefore the sum of all | - Static Current of all connected UniBus devices - Static Current of host module - Host module battery charging current - Ancillary devices connected to all DET+, CL+, 1W+ connections - Ancillary devices connected to host module’s RS-485 LAN+ |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 996560PCB&K | UniBus 4 Analogue Input Expander to suit ISC / IOEXP | $933.63 | Add to Cart |
