POSMarket SKU: Z17376
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

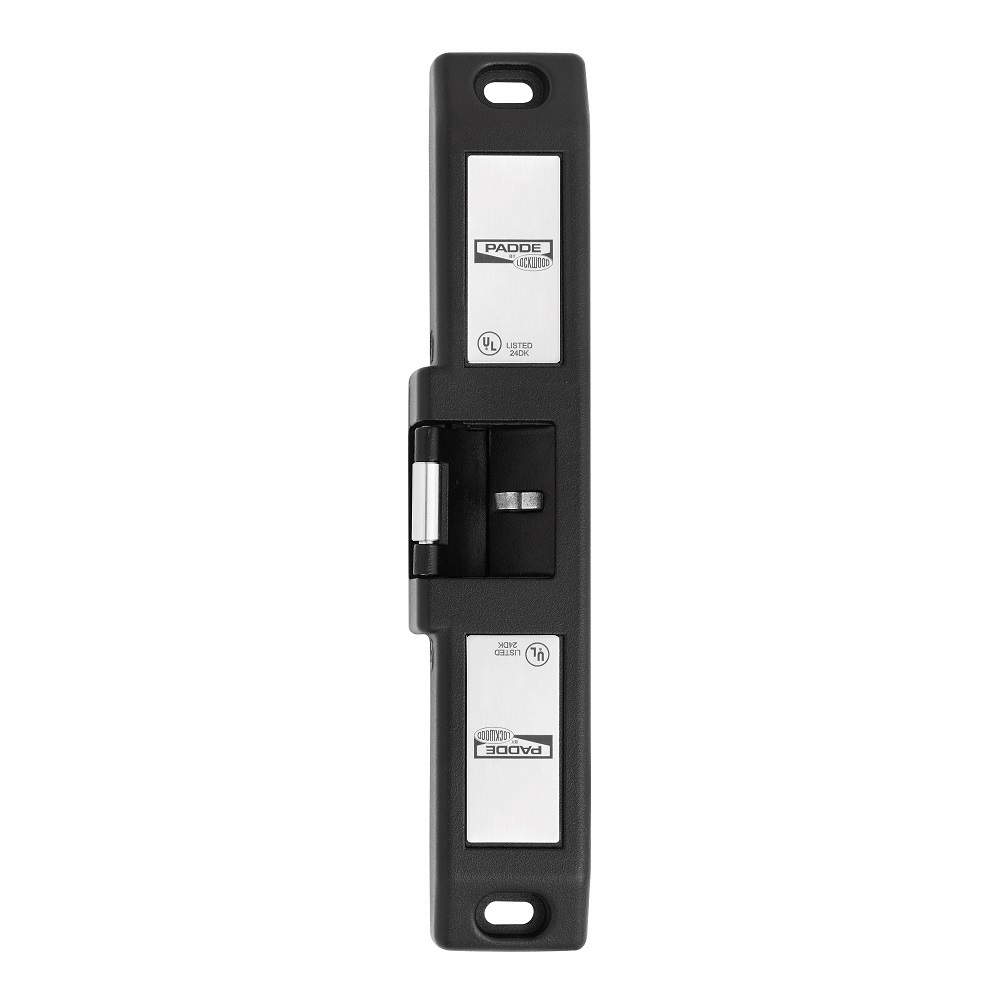

ES2600 Panic Bar Monitored Electric Strike
| ES2600 Panic Bar Monitored Electric Strike | ||
| General | ||
| Voltage | 12 or 24Vdc | |
| Current | 175mA @ 12Vdc - 88mA @ 24Vdc | |
| Solenoids | Solenoids rated for continuous use. | |
| Monitoring | ||
| Solenoid Monitor | - 1 amp NO/NC microswitch | |
| Door / Latch Monitor | - 1 amp NO/NC microswitch | |
| Holding Force | 650kg Static Strength Rating | |
| Endurance | Cycle tested to 1,000,000 operations | |
| Additional | Anti friction roller (patented) Suits panic bars with 15 to 20mm Pullman latch projection | |
| Environment | ||
| Operational temperature range | - 20C to +60C | |
| Body | Solid Stainless Steel Construction | |
| Keeper | Stainless Steel | |
| Latch | Suitable for 15-20mm pullman latch | |
| Standards and Compliance | Approved to UL1034 (highest level) CE Approved | |
| Specification Statement | The strike should be constructed of solid stainless steel, have a minimum holding force of 650kg and have an endurance rating of 1 million cycles. Maximum penetration into the door frame should not exceed 12mm. The one strike must be changeable from fail safe to fail secure on site where required. The strike should not consume current greater than 175mA at 12Vdc and have a solenoid rated for continuous use. Certifications must include CE and C-Tick. | |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| ES2600-1 | Strike, 650kg, Monitored, PTL, Roller Keeper for Panic Bar, 12V DC | $552.48 | Add to Cart | |
| ES2600-3 | Strike, 650kg, Monitored, PTL, Roller Keeper for Panic Bar, 24V DC | $552.48 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
ES260_2600 Electric Strike Installation Guide | 727KB | Download |
|
Electric Strikes Catalogue.pdf | 980KB | Download |
|
Electromechanical Door Solutions Catalogue.pdf | 7MB | Download |
