POSMarket SKU: Z17068
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

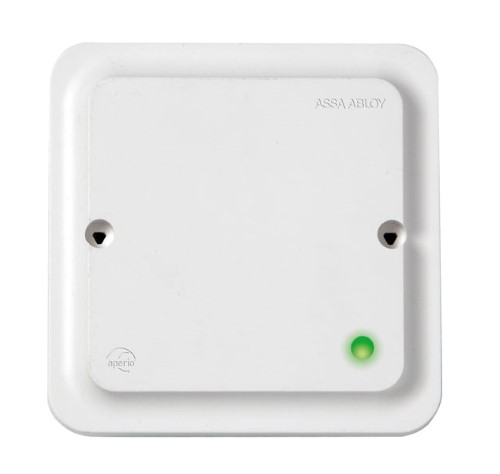

Communication Hub and EAC Interface
| AH30 Aperio 1:8 RS485 Hub | ||
| Technical Specifications | ||
| Approvals (Certification) | CE, ETL, FCC, IC, C-Tick | |
| Safety and emissions | FCC 47CFR Part 15 subpart B and subpart C; IC RSS-210; EN ETSI 301 489-17 v2.1.1; EN ETSI 300 328 v1.7.1; EN 60950-1 ed.2 2007; UL 294-2010; C22.2 | |
| Dimensions (H x W x D) | 82 x 82 x 37 mm; 3.22†x 3.22†x 1.45†| |
| Radio standard | IEEE 802.15.4 (2.4 GHz) - 16 channels (11-26 - note that channel 26 is disabled for North America) | |
| Encryption (radio communication) | AES 128-bits | |
| Wireless operating range | typical range of 15 to 25 meters depending on building environments | |
| Receiver sensitivity | - 100 dBm 20%PER | |
| Wireless transmit power | 10 dBm/MHz | |
| Internal antenna | two cross-polarized dipoles | |
| External antenna | one reverse polarity SMA external dipole antenna connector - must not have larger antenna gain than 3,9dBi. | |
| Class of protection | IP20 | |
| Operating temperature range | 5° C to 35° C | |
| Humidity | < 95% (non-condensing) | |
| Status | LED (red/green/orange) | |
| Ordering | ||
| Information AC-MER-AH30RN1-RC | AH30 1-to-8 Standard Aperio® RS485 communications hub package contains : • One hub with installation instructions • Wall-mountable housing • Fixing screws | |
| Related Products | AC-MER-CONT-1DR Access Platform EP1501 single door controller with PoE support (Mercury EP1501) | |
| AC-MER-CONT-2DR | Access Platform EP1502 door controller (Mercury EP1502) | |
| AC-MER-CONT-64DR | Access Platform EP2500 door controller (Mercury EP2500) | |
| AC-MER-APD-10-USB | AS-APRD1/PAP1 USB radio dongle Programming Application Tool (see below for more details) | |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| AH20-2-0 | Hub 1:1 Advanced Wiegand | $451.41 | Add to Cart | |
| AH30-3-0 | Hub 1:8 RS485 | $213.68 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
Communication Hub and EAC Interface Brochure.pdf | 58KB | Download |
|
Aperio Quick Installation Guide.pdf | 2MB | Download |
