Tensor E10180T

from $26.57 (incl. GST)

POSMarket SKU: Z15729

This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

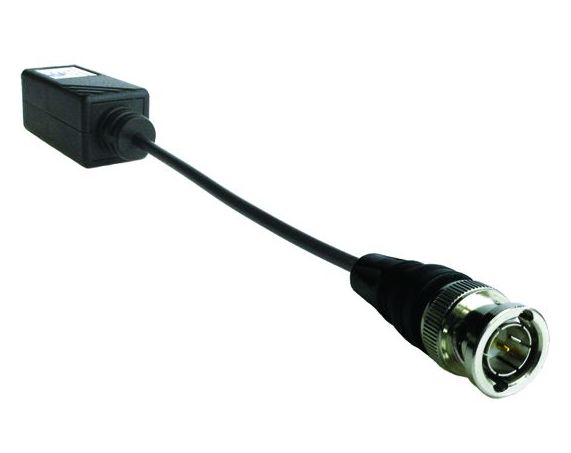

BNC Male Video Balun

Product Rating
Product Overview
In many security applications, video signal is carried over 75 ohm coaxial cabling and there is a need to convert to balanced transmission using lower cost 100 ohm Cat 5 twisted pair cables.

The E10180T video balun will enable video signal carried on Cat 5 cable to be converted to BNC coaxial interface for direct connection to the DVR. The mini coaxial tail of the BNC Male will allow ease of installation at the DVR end where space is often limited.

Features
  • 1 video path from BNC Male with 100 mm mini coaxial cable to RJ45 unshielded Jack.
  • Bi-directional signal conversion.
  • High Reliability and Durability
  • Housed in a fire retardant wall mountable Case
  • Impedance 75 to 100 Ohm
  • High quality and performance
  • Passive device (no power supply required)
  • Stable over working temperature between 0 °C to +55 °C
  • E10180TC:
  • BNC Male to Insulation Displacement Connector (IDC)
  • With 100mm mini coaxial tail for easy connection in tight spots
  • Passive device (no power required)
  • Compatible with E10180C/E10180V/E10185C/E10180SC/E10185PC
  • Suitable for CAT5E Cable
Need help finding the right part or accessory for your CCTV/ Camera? Ask us, our expert team has specialised training & experience to help find the right solution for your business.
Call 1300 737 998
Product Specifications
E10180T
Bandwidth:DC to 8 MHz
Insertion Loss:< 2 dB to 8 MHz
Impedance:75 ohm BNC, 100 Ohm RJ45
Maximum Signal Voltage:1.1 Vp-p
Return Loss:> 15 dB to 8 MHz
Common Mode Rejection:> 40 dB @ 8 MHz
RJ45 ContactsGold, 50 micro inch
Temperature Range:0 to 55°C operating, -22 to 80°C Storage, 95% Relative Humidity
Casing:Fire Retardant Plastic ABS UL 94V-0
Maximum Distance:Colour: Up to 400 m Cat 5e B&W: Up to 600 m Cat 5e
Grounding:At one end Recommended
Compatible with:E10180S / E10180R / E10185R / E10185S / E10185PL
E10180TC
Bandwidth DC to 8MHz
Insertion Loss < 2 dB to 8MHz
Impedance 75 ohm BNC, 100 ohm RJ45
Maximum Signal Voltage 1.1 Vp-p
Return Loss > 15 dB to 8 MHz
Common Mode Rejection > 40 dB @ 8 MHz
RJ45 Contacts Gold, 50 micro inch
Temperature Range 0 to 55 oC operating, -22 to 80oC Storage
95% Relative Humidity
Casing Fire Retardant Plastic ABS UL 94V-0
Maximum Distance Color: Up to 400 m Cat 5e
B&W Up to 600 m Cat 5e
RJ45 Connections E10180R, E10180S, E10180T 4/+ 5/- E10184S 7/+ 8/-
ModelDescriptionPriceStock
E10180T BNC Male Video Balun 100mm Tail RJ45 Jack $26.57
Call
 Add to Cart
E10180TC BNC Male Video Balun 100mm Tail Quick Connect IDC $26.57
Call
 Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document E10180T Datasheet 146KB Download
