Magtek Excella

$CALL

POSMarket SKU: Z5165

This model is available in 6 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

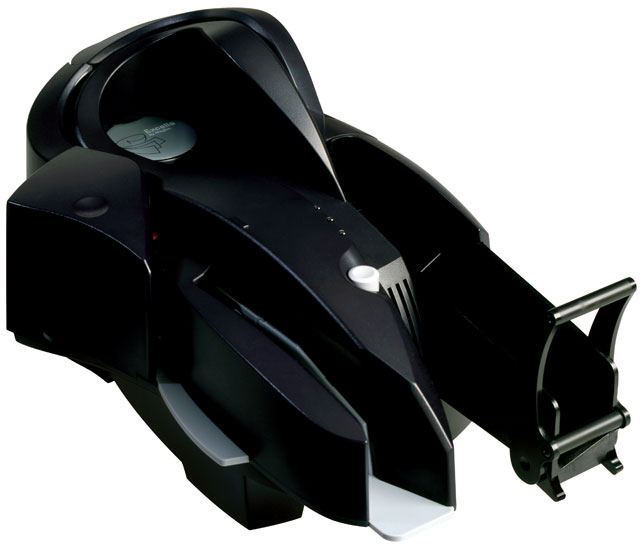

bFront and back scanning and printing.bbrThe Magtek Excella scans both sides of a check at once allowing users to process checks print endorsements and more quickly and easily. The Excella can process batches of up to 70 checks at once or a single check via manual feed. The Excella includes a USB connection and a resolution of 200 dpi.

Product Rating

Product Overview

No additional details found for this product.

Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.

Product Specifications

MagTek Excella Details

Reads E13B and CMC7 MICR fonts Captures front and back image of check in a single pass Endorsement printer prints horizontal message on back of the check (e.g. endorsement information) Endorsement message is programmable Message height: 1/8" consisting of 12 pixels Resolution: 200 dpi (scaling to 100 dpi) Black & white/grayscale images are standard Image compression: CCITT G4 or JPEG Image files: TIFF 6.0 (other formats can be made available) Optional image storage memory available with multi-media memory cards installed at the factory Manual feed bypass (to feed a single check) Automatic feeder with capacity for up to 70 documents Output hopper/stacker with capacity for up to 70 documents USB 2.0 (USB 1.1 compatible) and Ethernet 100Base-T Auxiliary interface: RS-232 serial Smart cable management
General Info
Color Black Light Gray	Dimensions Height: 7 in Width: 7.5 in Length: 13.25 in	Weight 3.59 lbs
Interface
USB 2.0 (USB 1.1 compatible) and Ethernet 100Base-T

Specifications

Operating
Reference	ANSI X9.27
Power Input	24 VDC 2.5 Amps
Current	1.5 A Max
Document Speed	13 ips
Document Size	4 in X 8.5 in
Printer/Cartridge	Image Resolution: 200 dpi (scaling to 100 dpi) black/white and grayscale images Image Compression: CCITT G4 or JPEG Image Storage Memory: Optional image storage memory available with multi-media memory cards installed at the factory
Check Feed & Hoppers	Manual feed of a single check Automatic feeder with capacity for up to 70 documents Output hopper/stacker with capacity fo rup to 70 documents
MICR Fonts Supported	E13-B CMC-7
Interface Options	USB 2.0 (USB 1.1 compatible) and Ethernet 100Base-T

Model	Description	Price	Stock
22310102	Excella,USB interface. Includes cable and US power supply.	$CALL	Call
22410302	RS-232 Single-Interface Cable for the MICRImage	$CALL	Call
64300090	Power Adapter for the MICRImage Check Reader	$CALL	Call
22517583	PC Cable (6 feet, USB, White) for the MiniMICR	$CALL	Call

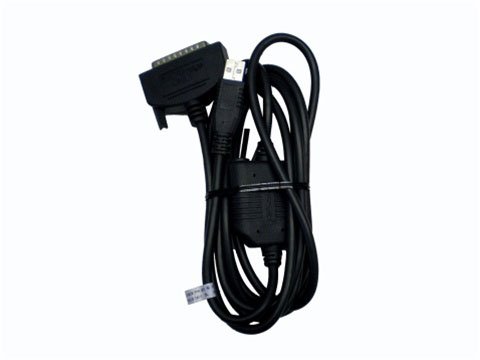

22410313	USB Cable Adapter (DB-25M to USB-A) for the MICRImage	$CALL	Call
22517582	PC Cable (6 feet, USB, White) for the MiniMICR	$CALL	Call

Product Accessories

Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.

	Filename	Size
	excella	3MB	Download
