Datalogic QuickScan L: QD2300

POSMarket SKU: Z5043

This model is a special order item. Please contact one of our experts on 1300 737 998 for details.

bMultiple Interfaces Keyboard wedge RS-232 and USBbbrUsed in retail and office application environments the Datalogic QuickScan L QD2300 reader provides a snappy scanning performance and is capable of reading a wide range of barcodes including the majority of 1D and GS1 DataBarcodes previously known as RSS. The QuickScan L QD2300 reader has been designed with durability in mind. It meets the IP42 sealing rating against dust and liquid spills and has a 5 ft 1.5 m drop specification. This scanner also has a greater than 1 million duty cycle trigger specification as well as sustainable 20 kV of Electro Static Discharge ESD. These are the best class specifications of any product on the market.

Product Rating
Product Overview

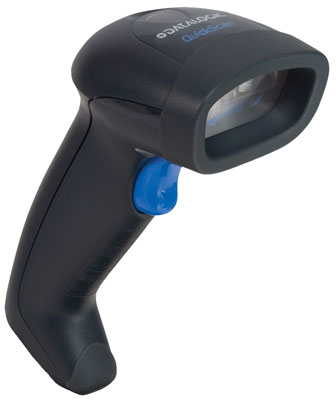

The Datalogic QuickScan L: QD2300 barcode reader is a barcode scanner with laser technology at an affordable price. The QuickScan L: QD2300 reader is the perfect solution for general purpose users who prefer laser scanning technology and need to read barcodes at nominal distances. This scanner is lightweight and small with an ergonomic form factor which provides the user with ease of scanning during daily operations. The wider than usual scan angle allows users to read a longer barcode from a shorter distance. The gun shaped ergonomic design fits most users' hands comfortably and the scanner only weighs 4.5 oz / 128 gr (without the cable).

  • Light Weight Scanner: 4.5 oz / 128 g
  • Gun Shaped Ergonomics: Easy to handle
    and use

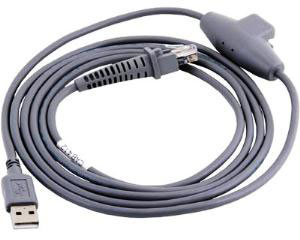

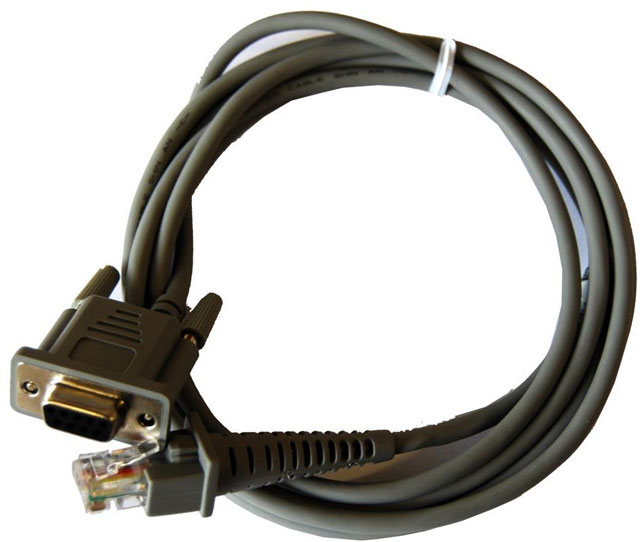

  • Multiple Interfaces: Keyboard Wedge,
    RS-232 and USB
  • User Replacable Scanner Window:
    Additional window kits can be ordered to
    replace scratched windows

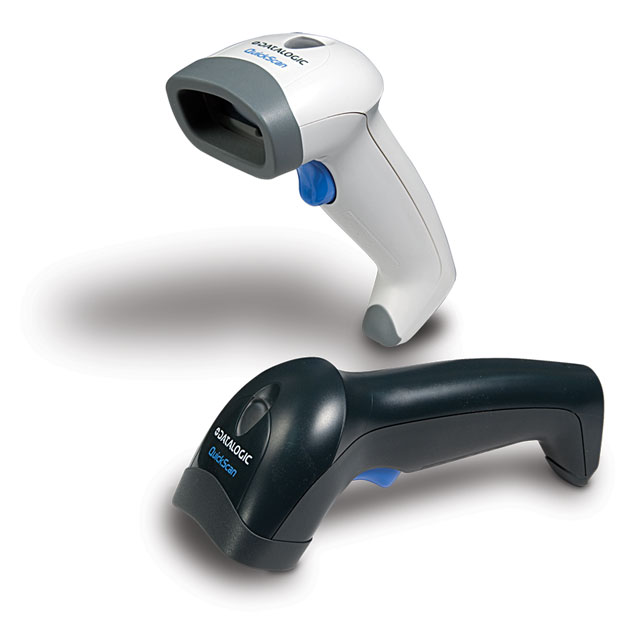

  • Available as a €˜Plug & Play€™ Kit: Kits
    include: a scanner (white or black), an
    interface cable and a €˜hands-free€™ stand
  • Same Cables as Gryphon„¢ and Heron„¢:
    Provides a migration path for exsisting
    Datalogic handheld readers
  • Supports Linear Bar Codes and GS1
    DataBar„¢ Symbologies: Designed for
    general purpose bar code scanning
    applications
  • Gooseneck Stand Available: Allows the
    customer the option of using the scanner
    in a hands-free mode (available in white
    or black)
Product Specifications
Scan EngineHigh Performance Linear Imaging Engine
Light Source650 nm Laser Diode
Scan PatternSingle Line
Scan Rate100 scans per second
Contrast Ratio30% minimum reflectance
Resolution5 mils / 0.10 mm
Pitch Angle+/- 65 deg.
Skew Angle+/- 60 deg.
Tilt Angle± 30°
Symbologies supportedInterleaved 2/5, Code 39 (and full ASCII, TriOptic), Discrete 2/5, UPC/EAN (with supplementals), UCC/EAN128, Code 128, Code 128 full ASCII, Code 93, CODABAR, Code MSI, Code 11,I ATA, GS1 DataBar„¢ (RSS), Chinese 2 of 5
Indicators/ControlsLED
Programmable Beeper
Operating ModesToggle, Trigger, Force, Level, Flash, Diagnostic Alternative, Low power, Presentation.
Communication TypeCorded
InterfacesRS-232, Keyboard Wedge and USB (Keyboard and HID)
Supply Voltage5 VDC ± 10%
Power ConsumptionOperating: 100 mA @ 5 VDC
Standby: <35 mA
Drop SpecificationWithstands drops from 5 ft / 1.5 m to concrete
Environmental SealingIP42
ESD ProtectionFunctional after 20kV discharge
Operating Environment32 °F to 122 °F / 0 °C to 50 °
Storage Environment40 °F to 158 °F / -40 °C to 70 °C
EMC/Safety StandardsFCC Part 15 Class B, ICES-003 Class B European Union EMC Directive (CE),Taiwan EMC (BSMI)
LED Eye Safety IEC60825-1, EN60825-1 (Do not stare into LED Beam)
External Dimensions (WxDxH)706.7 x 2.8 x 2.6 in / 170 x 71 x 67 mm
Weight4.5 oz / 128 g (excluding the cable)
Product Configurations
No configurations found for this product.

Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.

Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document quickscan desk 801KB Download
Product Videos
No videos found for this product.

Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
