Hikvision DS-7200HUHI-K2

from $395.59 (incl. GST)

POSMarket SKU: Z15041

This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

Hikvision Turbo HD DVR DS-7200HUHI-K2 series.

Product Rating
Product Overview
Part of Hikvision's 'TVI4.0' series of digital video recorders, the DS-7200HUHI-K2 series is a 4/8/16 channel DVR that has been designed to support up to 5MP TVI cameras at 12 frames per second over coxial cable. Offering compatibility with multiple video formats ranging from standard definition analogue, 2MP AHD, 2MP HD-CVI, 5MP HD-TVI and up to two 6MP IP, this DVR supports H.265/H.265+ intelligent video compression technology which dramatically reduces bandwidth and storage requirements by up to 50%. Additionally, this machine provides 16 BNC input interfaces and is capable of providing 4K(UHD) video outputs via HDMI. Other benefits of TVI 4.0 include: The absence of video delay in live viewing, bi-directional signaling, and long video transmission range of up to 800m over coaxial cable. All of this adds up to an incredible breakthrough in the evolution of analogue video transmission.

FEATURES
  • 4/8/16 Channel HD-TVI 4.0 DVR
  • Up to 2 channel IP - 6MP max
  • H.265/H.265+ encoding
  • 5MP@12fps, 4MP@15fps, 3MP@18fps, 2MP@ 25fps
  • Up to 800m for 1080p and 1200m for 720p
  • 2x HDD Bays
  • HDMI output up to 1080P resolution
  • VGA and CVBS output
  • Mobile application and PC client
  • P2P - quick remote access setup
Product Specifications
Model DS-7204HUHI-K2
DS-7208HUHI-K2
DS-7216HUHI-K2
Recording
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution When 8 MP Lite mode is not enabled:
8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

When 8 MP Lite mode is enabled:
8 MP Lite/3MP/1080P/720P/WD1/4CIF/VGA/CIF
Frame rate Main stream:
When 8 MP Lite mode is not enabled:
8 MP@8 fps/5MP@12 fps/4 MP@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
*: 8 MP@8 fps is only available for channel 1 of DS-7204HUHI-K2.

When 8 MP Lite mode enabled:
8 MP Lite/3MP/1080P/720P/WD1/4CIF/VGA/CIF@15 fps
*: 8 MP Lite is only available for DS-7204HUHI-K2.

Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 10 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bit rate 64 Kbps
Video and Audio
IP video input 4-ch (up to 8-ch)
8-ch (up to 16-ch)
16-ch (up to 32-ch)

Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input 4-ch
8-ch
16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD input 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 ×480
VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio input 4-ch, RCA (2.0Vp-p, 1 KΩ)
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback 4-ch
8-ch
16-ch
General
Power supply 12 VDC
Consumption (without HDD) ≤ 10 W; ≤ 20 W; ≤25 W
Working temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working humidity 10% to 90%
Dimension (W x D x H) 380× 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight (without HDD) ≤ 1.16 kg (2.6 lb) ≤ 1.78 kg (3.9 lb) ≤ 2 kg (4.4 lb)
ModelDescriptionPriceStock
DS-7216HUHI-K2 TVI4.0 16ch DVR, H.265+, HDTVI/HDCVI/AHD/CVBS, 2 HDD Bays, 5MP@12fps, 3TB HDD $938.44
Call
 Add to Cart
DS-7208HUHI-K2 TVI4.0 8ch DVR, H.265+, HDTVI/HDCVI/AHD/CVBS, 2 HDD Bays, 5MP@12fps, 3TB HDD $572.69
Call
 Add to Cart
DS-7204HUHI-K2 TVI4.0 4ch DVR, H.265+, HDTVI/HDCVI/AHD/CVBS, 2 HDD Bays, 5MP@12fps, 2TB HDD $395.59
Call
 Add to Cart
ModelDescriptionPrices From
Hikvision Rack Mount Ears Rack Mount Bracket Kit $4.85 View Product
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document DS72xxHUHIK2 Datasheet.pdf 1MB Download
PDF Document DS72xxHUHI User Manual.pdf 12MB Download
Product Videos
No videos found for this product.

Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.

Contact our Team
Warehouse Locations
Warehouse Locations
NSW
  • Huntingwood 2148
  • Rosehill 2142
  • Rydalmere 2116

QLD
  • Acacia Ridge 4110
  • Tingalpa 4173

VIC
  • Box Hill 3128

WA
  • Burswood 6100

Related Products

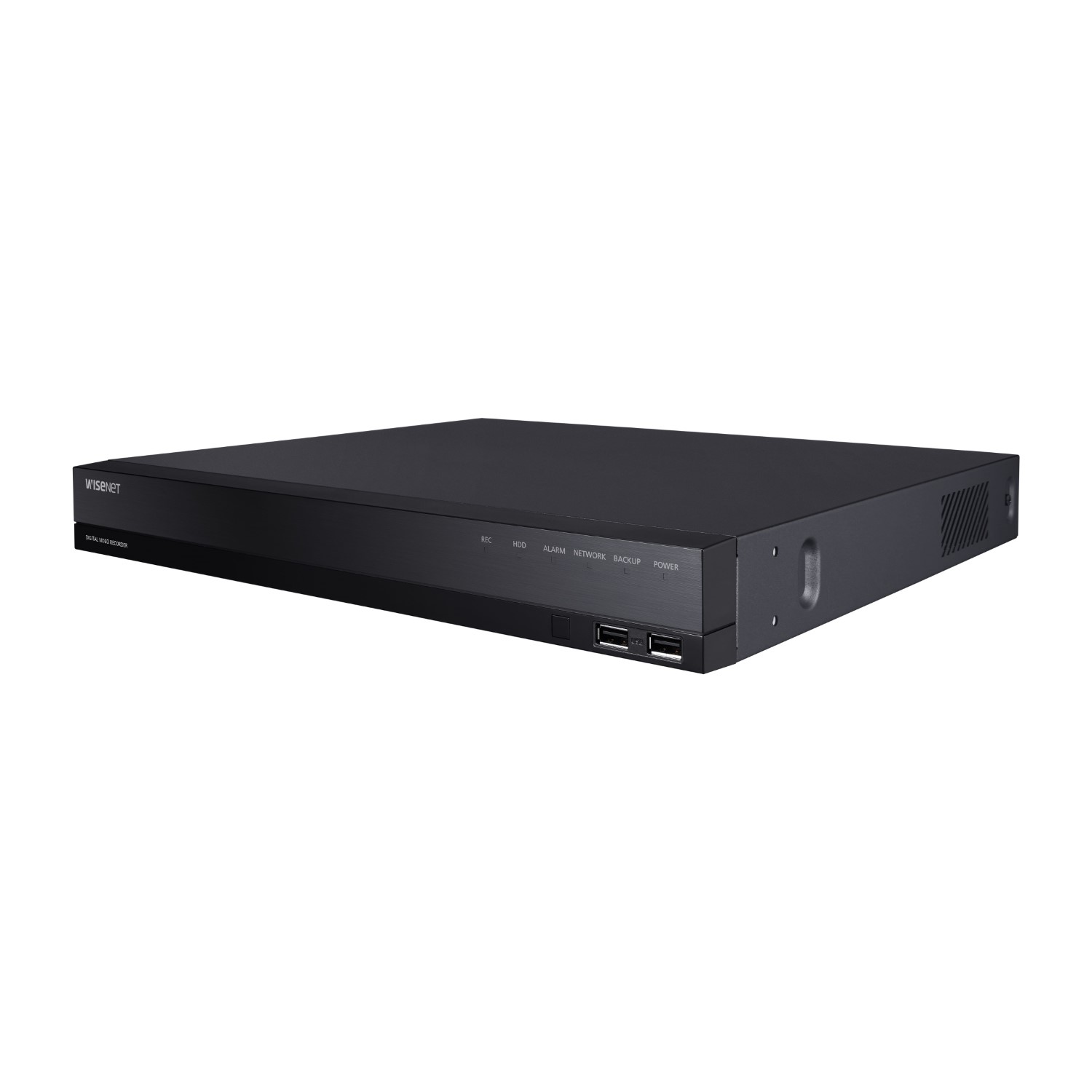

Hanwha HRX-1620 Hanwha HRX-1620
