POSMarket SKU: Z15052
This product has been discontinued by the manufacturer. Please contact our team on 1300 737 998 for advice on a suitable replacement or we may be able to source refurbished units.

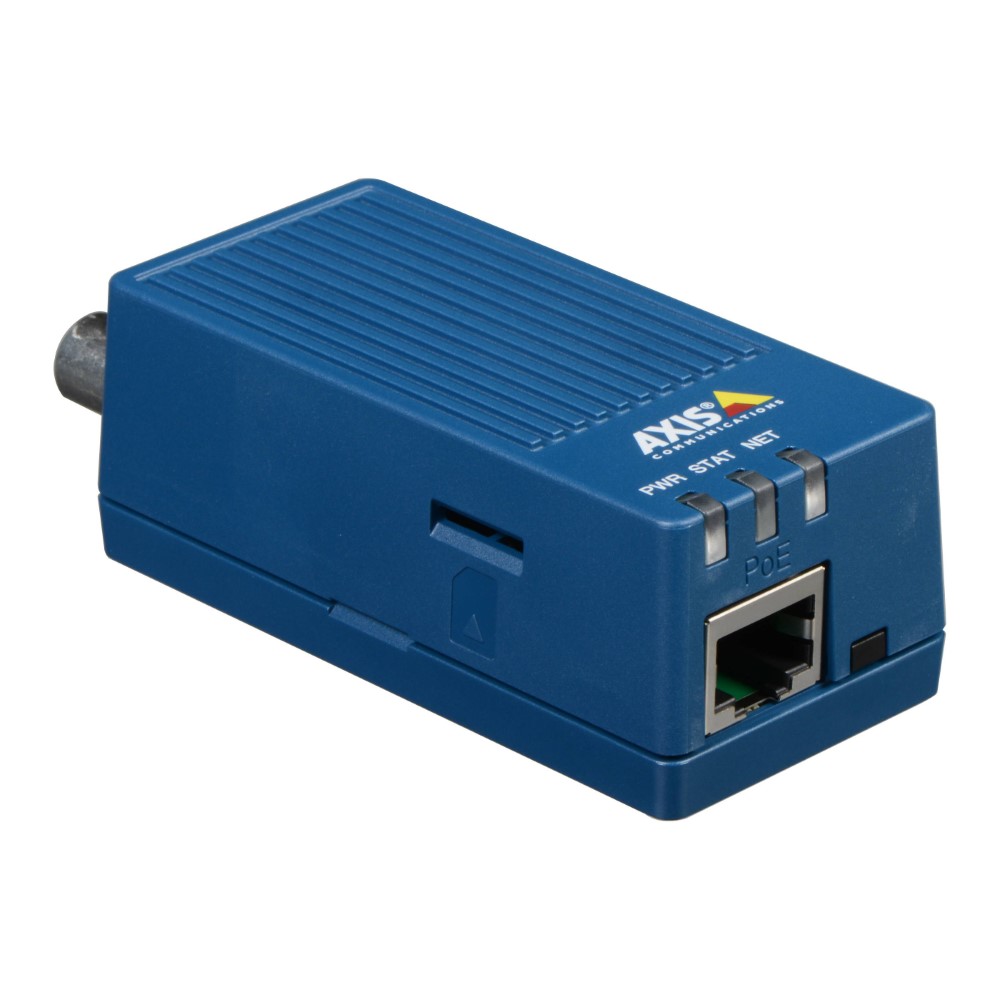

Axis' video encoder that offers big performance in a small design
| Video | |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High profile Motion JPEG |
| Resolutions | NTSC: 176 x 120 to 720 x 480 PAL: 176 x 144 to 720 x 576 |
| Frame Rate | 25/30 fps (PAL/NTSC) in all resolutions |
| Video Streaming | Multiple, individually configurable streams in H.264 and MJPEG Controllable frame rate and bandwidth, VBR/MBR H.264 |
| Image Settings | Compression, color, brightness, contrast, Rotation (0°, 90°, 180°, 270°), aspect ratio correction, mirroring of images, text and image overlay, privacy mask, enhanced deinterlace filter, video termination, anti-aliasing, temporal noise filtering, sharpness, noise reduction, local enhancement |
| Network | |
| Security | Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log, centralized certificate management |
| Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX and Axis Camera application Platform Axis Video Hosting System (AVHS) with One-Click Camera Connection ONVIF Profile S support |
| Analytics | Video motion detection, active tampering alarm |
| Event Trigger | Intelligent video, video loss, edge storage events |
| Event Action | File Upload: FTP, SFTP, HTTP, HTTPS network share, and email Notification: email, HTTP, HTTPS, and TCP External output activation Pre- and post-alarm video buffering PTZ preset Status LED |
| Data Streaming | Event data |
| Web Browser | Camera live view, Video recording to file (ASF), Windows XP, Vista, Server 2008, 7, 8, Server 2012, DirectX 9c or higher |
| Video Management Software | AXIS Camera Companion, AXIS Camera Station, Video management software from Axis' Application Development Partners |
| General | |
| Casing | Material: PC+ABS CX7240 |
| Memory | 256 MB flash |
| RAM | 256 MB |
| Power | Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 1 |
| Connectors | 1 x Analog composite video BNC input 1 x RJ-45 10Base-T/100Base-TX PoE 1 x RS-485/422 |
| Edge Storage | 1 x microSD/SDHC/SDXC slot (supports cards up to 64 GB) Supports recording to attached NAS |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Operating Humidity | 10 to 85%, non-condensing |
| Dimensions | 3.5 x 1.1 x 1.5" / 9.0 x 2.9 x 3.8 cm |
| Weight | 2.5 oz / 70.8 g |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 0764-001 | M7011 1ch Video Encoder, H.264, PoE 802.3af | $402.88 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
M7011 Datasheet.pdf | 457KB | Download |
|
M7011 User Manual.pdf | 960KB | Download |
|
M7011 Installation Guide.pdf | 1MB | Download |
Most of our shipments are delivered using Australian courier companies such as Toll, Star Track Express, TNT or Border Express. Over 90% of orders are delivered within 2 business days.
Contact our sales team to see if the item you want to purchase is available to collect from the warehouse nearest to you.
We have many international clients. Contact our sales team for delivery costs and times.
POSMarket can provide your business with the hardware, software, services and consumables you need to take your business to the next level. We can develop custom software for your next project or customise a solution from off-the-shelf software to suit your needs.
Request a Consultation Today

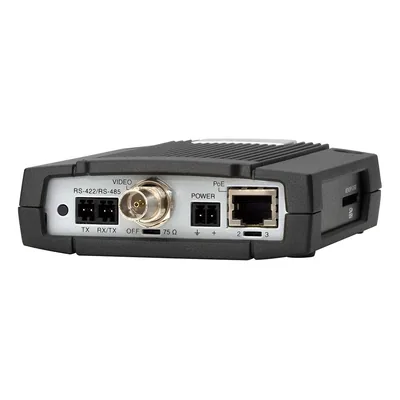

Axis Q7401

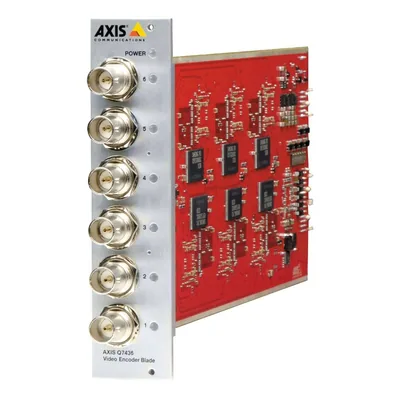

Axis Q7436

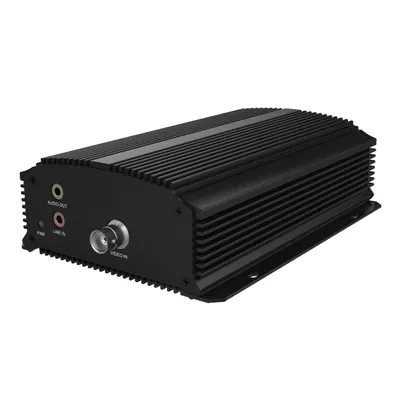

Hikvision DS-6701HUHI
