POSMarket SKU: Z1821
This model is available in 8 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

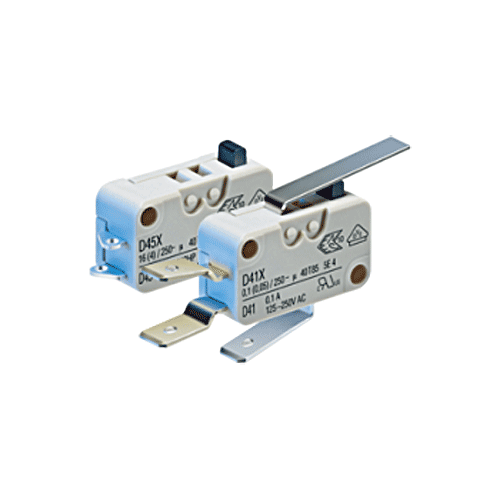

Cherry D4-Series Snap action Miniature Switch
| Contact configuration | S.P.D.T., S.P.S.T. - N.O., S.P.S.T. - N.C |
| Conact gap | < 3 mm (ยต) |
| Switching voltage | 250 V AC (400 V on request) |
| Switched current max. | < 0,1 to 21 A, depending on model |
| Total travel | 2,6 mm |
| Ambient temperature | 40T85; 40T125; 40T150 |
| Proof tracking index | PTI 300 |
| Housing / cover | PET (UL94 V-0) |
| Actuator POM | (max. 85 °C) alternative PET (UL94 V-0) |
| Terminals | CuZn alternative Cu |
| Auxiliary actuator | nickel-plated steel, alternative stainless steel |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| D459-P4AA | D4-Series 15A/250V SPDT PCB Under Button | $2.13 | Add to Cart | |
| D413-V3RD | D4-Series 0.1A/250V QC6.3 Dogleg Button/RM Roller | $2.92 | Add to Cart | |
| D413-V3LD | D4-Series 0.1A/250V QC6.3 Dogleg Button/RM Lever | $2.41 | Add to Cart | |
| D41L-R1AA-ZH | D4-Series 0.1A/250V SPDT QC4 Button | $1.90 | Add to Cart | |
| D413-V3AA | D4-Series 0.1A/250V QC6.3 Dogleg Button | $2.13 | Add to Cart | |
| D489-V3AA | D4-Series 21A/250V SPDT Tab 6.3x0.8 Button | $1.93 | Add to Cart | |
| D449-R1ML | D4 Series 10A/250V QC4.8 Straight FM Actuator 74.5 | $1.86 | Add to Cart | |
| D44R-Q1AA | D4-Series 10A/250V SPDT QC4 Straight Button | $CALL |
| Filename | Size | ||
|---|---|---|---|
 |
Cherry D4 Series Miniature Switch Datasheet | 591KB | Download |
Cherry CSCSSeries
Keyboards > Switches
Cherry CSDKSeries
Keyboards > Switches

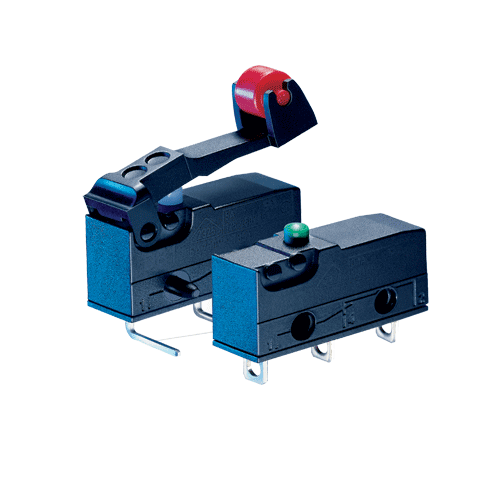

Cherry CSDBSeries
