POSMarket SKU: Z1912
This model is available in 32 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

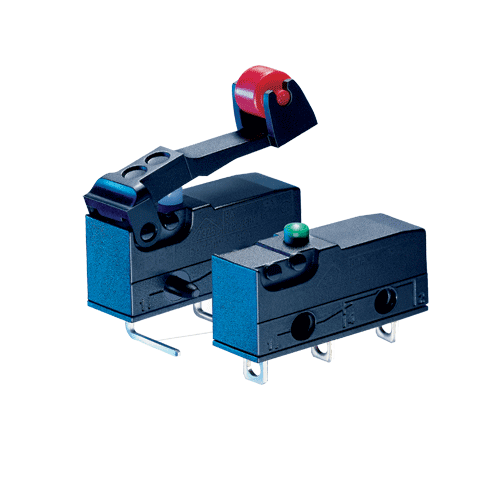

Cherry high precision Snap Action subminiature switch with high repeat accuracy
| Contact configuration | S.P.D.T., S.P.S.T. - N.O., S.P.S.T. - N.C. |
| Contact gap | < 3 mm (ยต) |
| Switching voltage | max. 250 V ACSwitched current0,1 to 10 A AC, dependig on model (see table) |
| Operating force | 70 to 280 cN without auxiliary actuator, depending on model |
| Total travel | 1,6 mm |
| Mechanical life | Min. 10 x 106 operations (see table) |
| Electrical life (max. load) | Up to 106 operations (see table) |
| Ambient temperature | -40 to +85 °C /120 °C |
| Proof tracking index | PTI 175 (PTI 250 on request) |
| Materials | PET (UL 94 V-0) |
| Base | PET (UL 94 V-0) |
| Cover | PBT (UL 94 V-0); PET (UL 94 V-0) |
| Actuator | PBT (UL 94 V-0) T120, POM (UL 94 HB) T85 |
| Contacts | AgSnO2, AgNi, AuAgPt (Crosspoint) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| DB1C-C1LB | DB-Series 5A/250VAC SPDT PCB Str5 Lever 4.8mm | $1.38 | Add to Cart | |
| DB2C-D1AA | DB-Series 10A/250VAC SPDT PCB Str2 Sph Hd | $1.44 | Add to Cart | |
| DB1C-D2AA | DB-Series 5A/250VAC SPDT PCB RL Sph Hd | $CALL | ||
| DB3C-B1AA | DB-Series 0.1A/250VAC SPDT QC Str Sph Hd | $CALL | ||
| DB3C-D2AA | DB-Series 0.1A/250VAC SPDT PCB RL Sph Hd | $CALL | ||
| DB3C-D1AA | DB-Series 0.1A/250VAC SPDT PCB Str2 Sph Hd | $CALL | ||
| DB1C-A1AA | DB-Series 5A/250VAC SPDT Solder Sph Hd | $CALL | ||
| DB3C-A1AA | DB-Series 0.1A/250VAC SPDT Solder Sph Hd | $CALL | ||
| DB2C-B1AA | DB-Series 10A/250VAC SPDT QC Str Sph Hd | $CALL | ||
| DB3C-D3AA | DB-Series 0.1A/250VAC SPDT PCB LL Sph Hd | $CALL | ||
| DB3A-D3AA | DB-Series 0.1A/250VAC SPDT PCB LL Sph Hd | $CALL | ||
| DB2C-A1AA | DB-Series 10A/250VAC SPDT Solder Sph Hd | $CALL | ||
| DB1C-D1AA-ZH 30 | DB-Series 5A/250VAC SPDT PCB Str2 Sph Hd | $1.43 | Add to Cart | |
| DB1C-D4AA | DB-Series 5A/250VAC SPDT PCB R Sph Hd | $CALL | ||
| DB3A-B1AA | DB-Series 0.1A/250VAC SPNO QC Str Sph Hd | $CALL | ||
| DB2C-D1SB-ZH | DB-Series 10A/250VAC SPDT PCB Str2 Sim Roller | $1.51 | Add to Cart | |
| DB1A-A1AA | DB-Series 5A/250VAC SPNO Solder Sph Hd | $CALL | ||
| DB1C-D5AA | DB-Series 5A/250VAC SPDT PCB L Sph Hd | $CALL | ||
| DB3C-C1AA | DB-Series 0.1A/250VAC SPDT PCB Str5 Sph Hd | $CALL | ||
| DB3C-B1RC-ZH 30 | DB-Series 0.1A/250VAC SPDT QC Str Roller 4.7mm | $1.86 | Add to Cart | |
| DB2C-C1LC | DB-Series 10A/250VAC SPDT PCB Str5 Lever 7mm | $1.84 | Add to Cart | |
| DB1C-B1RC | DB-Series 5A/250VAC SPDT QC Str Roller 4.7mm | $1.77 | Add to Cart | |
| DB3C-D1RC | DB-Series 0.1A/250VAC SPDT PCB Str2 Roller 4.7mm | $1.54 | Add to Cart | |
| DB3C-B1TC | DB-Series 0.1A/250VAC SPDT QC Str Roller 7.1mm | $1.46 | Add to Cart | |
| DB3C-D2MC | DB-Series 0.1A/250VAC SPDT PCB RL Med Lever HR | $1.46 | Add to Cart | |
| DB1C-A1LB | DB-Series 5A/250VAC SPDT Solder Lever 4.8mm | $1.38 | Add to Cart | |
| DB1C-D2LC | DB-Series 5A/250VAC SPDT PCB RL Lever 7mm | $1.38 | Add to Cart | |
| DB1C-B1LB | DB-Series 5A/250VAC SPDT QC Str Lever 4.8mm | $CALL | ||
| DB1C-B1AA | DB-Series 5A/250VAC SPDT QC Str Sph Hd | $CALL | ||
| DB1C-C1AA | DB-Series 5A/250VAC SPDT PCB Str5 Sph Hd | $CALL | ||
| DB3C-C1LB | DB-Series 0.1A/250VAC SPDT PCB Lever 4.8mm | $CALL | ||
| DB2C-C1AA | DB-Series 10A/250VAC SPDT PCB Str5 Sph Hd | $CALL |
| Filename | Size | ||
|---|---|---|---|
 |
Cherry DB Subminiature Switch Datasheet | 536KB | Download |
