POSMarket SKU: Z1820

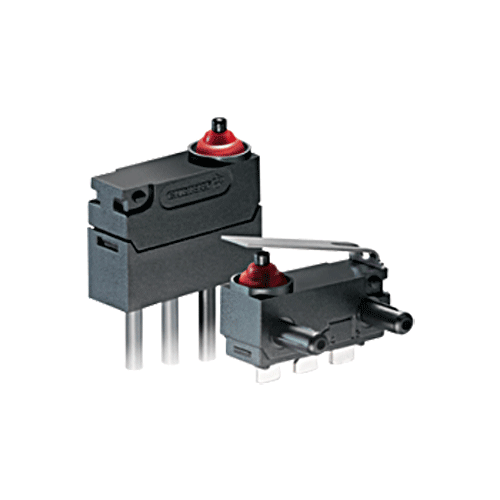

Cherry IP65 Sealed Snap Action sub-sub-miniature switch. 5mA up to 2A at 12VDC
| Contact configuration | S.P.D.T. |
| Contact gap | < 3 mm |
| Switching voltage max. | 12 V DC up to 60 V on request |
| Switched current | 0,005 bis 2 A DC |
| Operating force max. | 75 c without auxiliary actuator |
| Total travel ca. | 2,0 mm |
| Mechanical life min. | 500.000 operations |
| Electrical life (max. load) min. | 100.000 operations |
| Ambient temperature | €“ 40 to +85 C / 105 C |
| Base | PBT / PES |
| Cover | PBT + ASA |
| Actuator | POM (+85 Deg) |
| Auxiliary actuator | Stainless steel |
| Sealing gasket | SI (VMQ) |
| Terminals | CuZn (silver-plated) |
| Leads | Cu, Isolation PVC |
| Contacts | AuAg (Crosspoint) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| CSDK1G-TRD1 | DK-Series 2A/12V SPDT PCB R Lever | $1.69 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
Cherry DK Series Subminiature Switches Datasheet | 363KB | Download |
