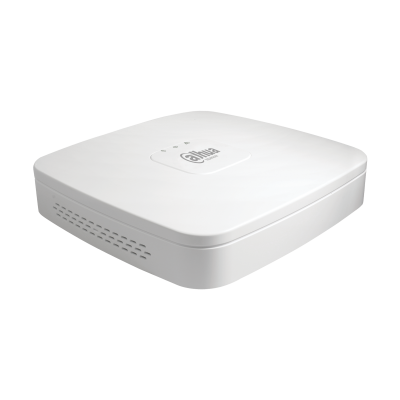

Dahua NVR2104-P-4KS2

$CALL

POSMarket SKU: Z18305

This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

4/8 Channel Smart 1U 1HDD 4/8 PoE Lite 4K H.265 Network Video Recorder

Product Rating
Product Overview
The Dahua NVR2000-4KS2 series is capable of transmitting 8MP image. It helps to save up to 50% HDD and storage space with its H.265 decoding technology compared with H.264.

Due to its cost-effective and easy-to-install design, this NVR is ideal for a wide range of applications such as home safety, grocery, warehouse, education, and financial institutions.

The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems that work independently of video management system (VMS). It features an open architecture that supports for multi-user access and is compatible with ONVIF 2.4 protocol, enabling interoperability with IP cameras.

Features and functions
  • Smart H.265+/Smart H.264+/H.265/H.264
  • Max 80Mbps incoming bandwidth
  • Up to 8Mp resolution preview&playback
  • Up to 1ch@8MP/4ch@1080P decoding
  • HDMI/VGA simultaneous video output
  • Support IPC UPnP, 4PoE ports
SMD
Plus by Camera With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

4K Resolution
The 4K resolution is a revolutionary breakthrough in image processing technology. 4K delivers four times the resolution of standard HDTV 1080p cameras and offers superior picture quality and image details. 4K resolution improves the clarity of a magnified scene to view or record crisp forensic video from large areas.

Smart Codec
With advanced scene-adaptive rate control algorithm, Dahua smart codec technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

ANR (Automatic Network Replenishment Technology)
Video record in SD card in IP cameras when the network breaks down, and after the network recovered, the video will be transferred to device and then recorded in it.

DMSS
The DMSS app is available on the iOS App Store and Google Play. It makes surveillance easy and simple, allowing you to remotely access back-end devices, view live video, receive event push notifications, and search for recorded videos from an iPhone, iPad, or Android phone at anytime from virtually anywhere.
Product Specifications
NVR2104-P-4KS2
System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Audio and Video
IP Camera Input 4 Channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Display
Interface 1 HDMI, 1 VGA
Resolution HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720
VGA: 1920×1080, 1280×1024, 1280×720
Decoding Capacity 1ch@8MP 30fps, 4ch@1080P 30fps
Multi-screen Display 1/4
OSD Camera title, Time, Camera lock, Motion detection, Recording
Recording
Compression H.265/H.264
Resolution 8MP/6MP/5MP/4MP/3MP/1080P/720P/D1&etc.
Record Rate 80Mbps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule(Regular(Continuous), MD, Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), and Tampering
Alarm input N/A
Relay Output N/A
Playback and Backup
Sync Playback 1/4
Search Mode Time /Date, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Third-party Support
Third-party Support Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more
Network
Interface 1 RJ-45 port (10/100Mbps)
PoE 4 ports (IEEE802.3at/af)
Network Function HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search (Support IP camera, DVR, NVS and etc.), Easy4ip
Optical Fiber Interface N/A
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, SDK, CGI
Storage
Internal HDD 1 SATA III Port, up to 6TB capacity for each HDD
HDD Mode Single
eSATA N/A
Auxiliary Interface
USB 2 ports (1 Rear USB2.0, 1 Front USB2.0)
RS232 N/A
RS485 N/A
Electrical
Power Supply Single, DC48V/1.25A
Power Consumption NVR: <5.3W (without HDD)
PoE: Max 25.5w for single port, 50w in total
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions (W×D×H) Compact 1U, 260mm×224.9mm×47.6mm (10.2″ x 8.9″ x 1.9″)
Net Weight 0.8kg (1.76 lb) (without HDD)
Gross Weight 1.6kg(3.53 lb)(without HDD)
Certifications
CE EN55032, EN55024, EN50130-4, EN60950-1
FCC Part 15 Subpart B, ANSI C63.4-2014
UL UL60950-1
NVR2108-P-4KS2
System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Audio and Video
IP Camera Input 8 Channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Display
Interface 1 HDMI, 1 VGA
Resolution HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720
VGA: 1920×1080, 1280×1024, 1280×720
Decoding Capacity 1ch@8MP 30fps, 4ch@1080P 30fps
Multi-screen Display 1/4/8/9
OSD Camera title, Time, Camera lock, Motion detection, Recording
Recording
Compression H.265/H.264
Resolution 8MP/6MP/5MP/4MP/3MP/1080P/720P/D1&etc.
Record Rate 80Mbps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule(Regular(Continuous), MD, Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), and Tampering
Alarm input N/A
Relay Output N/A
Playback and Backup
Sync Playback 1/4
Search Mode Time /Date, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Third-party Support
Third-party Support Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more
Network
Interface Interface 1 RJ-45 port (10/100/1000Mbps)
PoE 8 ports (IEEE802.3at/af)
Network Function HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search (Support IP camera, DVR, NVS and etc.), Easy4ip
Optical Fiber Interface N/A
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, SDK, CGI
Storage
Internal HDD 1 SATA III Port, up to 6TB capacity for each HDD
HDD Mode Single
eSATA N/A
Auxiliary Interface
USB 2 ports (1 Rear USB2.0, 1 Front USB2.0)
RS232 N/A
RS485 N/A
Electrical
Power Supply Single, DC48V/2A
Power Consumption NVR: <5.8W (without HDD)
PoE: Max 25.5w for single port, 80w in total
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions (W×D×H) Compact 1U, 260mm×224.9mm×47.6mm (10.2″ x 8.9″ x 1.9″)
Net Weight 0.8kg (1.76 lb) (without HDD)
Gross Weight 1.6kg(3.53 lb)(without HDD)
Certifications
CE EN55032, EN55024, EN50130-4, EN60950-1
FCC Part 15 Subpart B, ANSI C63.4-2014
UL UL60950-1
ModelDescriptionPriceStock
DHI-NVR2104-P-4KS2 4 Channel Smart 1U 4PoE Lite, 4K H.265 Network Video Recorder $CALL
Call

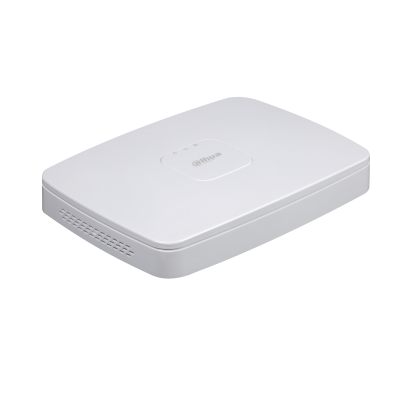

DHI-NVR2108-8P-4KS2 8 Channel Smart 1U 8PoE Lite 4K, H.265 Network Video Recorder $CALL
Call
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document NVR2104P4KS2 Datasheet.pdf 416KB Download
PDF Document Network Video Recorder User Manual.pdf 16MB Download
PDF Document HDD Installation Guide.pdf 13MB Download
PDF Document NVR21088P4KS2 Datasheet.pdf 598KB Download
