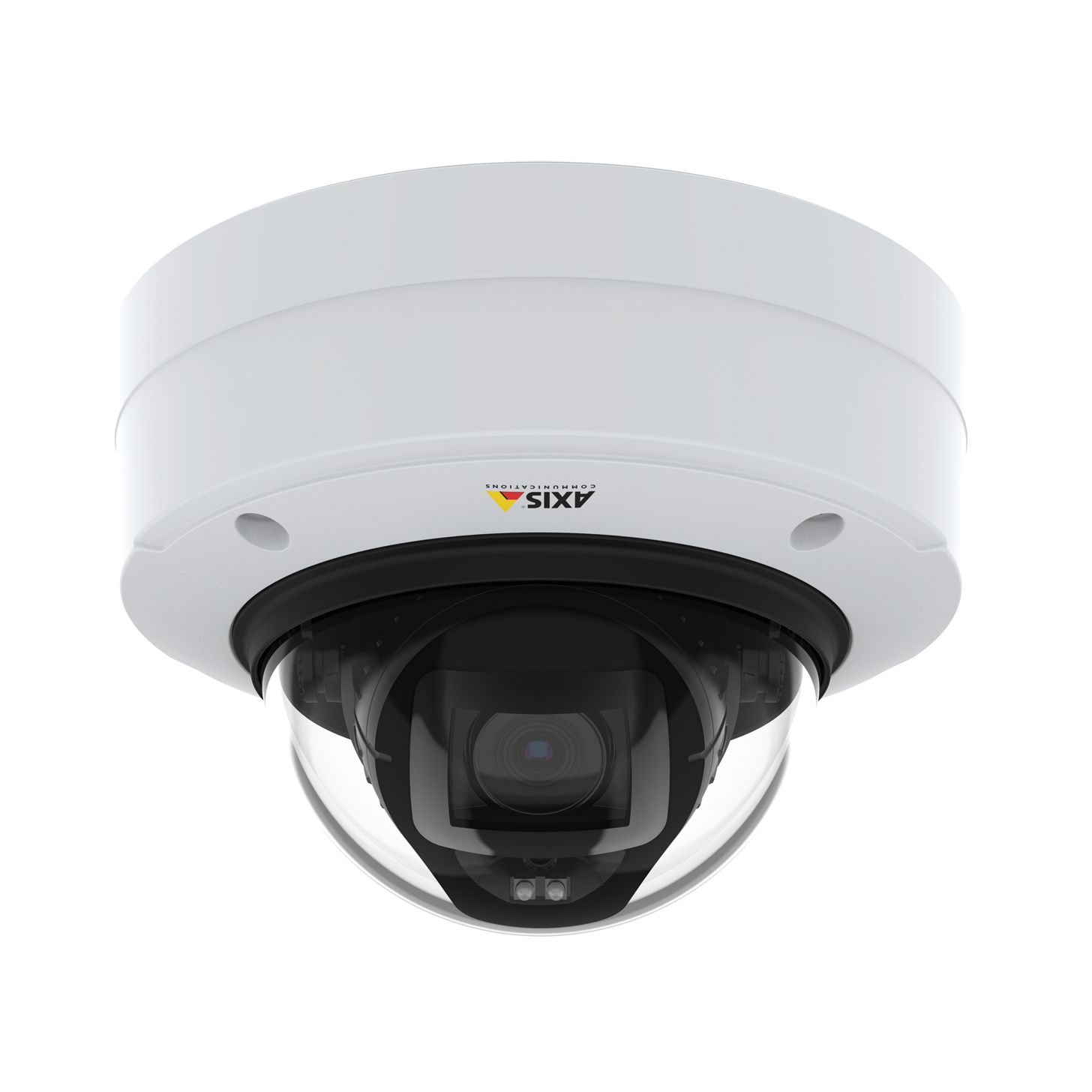

Axis P3248-LVE

$2,223.38 (incl. GST)

POSMarket SKU: Z14991

01598-001: P3248-LVE 8MP Dome Camera, Object Analytics, IR, IK10, IP66, 4.3-8.6mm VF Lens

Axis' streamlined outdoor-ready dome for any light that offers excellent image quality in brilliant 4K resolution.

Product Rating
Product Overview

The outdoor-ready Axis P3248-LVE / AXIS-01598-001 is a dome camera delivers outstanding 4K resolution in challenging light conditions including brilliant colours even in poor light, thanks to Lightfinder 2.0, forensic WDR and OptimizedIR. The video compression is efficient, as Zipstream technology significantly reduces storage and bandwidth needs and enhanced security features ensuring that the camera's firmware cannot be tampered with. It is also repaintable to blend in and is designed for easy and discreet installations.

The P3248-LVE camera uses a 1/1.8" progressive scan RGB CMOS sensor to capture 3840 x 2160 resolution video at up to 30 fps. IR LEDs provide up to 130' of night vision. A 4.3-8.6mm varifocal lens delivers a 100 to 53° horizontal field of view. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. A built-in memory card slot accepts microSD/SDHC/SDXC cards.

This dome camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X-, and IK10-rated enclosure for outdoor use in areas at risk of vandalism.

FEATURES

  • Lightfinder 2.0 and forensic WDR
  • Zipstream with H.264 and H.265
  • Signed firmware and secure boot
  • Two-way audio, supervised digital input and 1 digital output
  • Day/night functionality
  • IP66, IK10 rating
  • OptimizedIR

Product Specifications
>Networking
Camera
Sensor 8 MP 1/1.8" CMOS
Focal Length 4.3 to 8.6mm
Maximum Aperture f/1.5
Zoom Optical: 2x
Lens Field of View Horizontal: 100 to 53°
Vertical: 54 to 30°
IR Cut Filter Mechanical
Day/Night Yes
Minimum Illumination Color: 0.14 Lux
B&W: 0 Lux
Shutter Speed 1/8500 to 1/5 Seconds
Camera Angle Adjustment Horizontal: -180 to 180°
Vertical: -75 to 75°
Video
Streaming Resolution 3840 x 2160 at 30 fps
Supported Video Compression H.264, H.265, MJPEG
Multi-View Streaming Yes, 2 Streams
Automatic Gain Control Yes
Audio
1- or 2-Way Audio Two-Way
Audio Formats AAC-LC, G.711, G.726, LPCM, Opus
Built-In Mic No
External Audio Input 4-Pin Terminal Block
External Audio Output 4-Pin Terminal Block
Security Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log
Supported Protocols ARP, Bonjour, CIFS/SMB, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, MQTT, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SIP (SIPS), SMTP, SNMP v1/v2c/v3 (MIB-II), SOCKS, SRTP, SSH, SSL/TLS, TCP, UDP, UPnP, USGv6, syslog
System Integration
Application Programming Interface (API) Open API for Software Integration, Including VAPIX and AXIS Camera Application Platform
AXIS Guardian with One-Click Connection
ONVIF Profiles G, S & T

Support for SIP for Integration with VoIP Systems, P2P, or Integrated with SIP/PBX
Analytics Included: AXIS Object Analytics, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, AXIS Video Motion Detection, Active Tampering Alarm, Audio Detection

Supported: AXIS Perimeter Defender, AXIS Camera Application Platform Enabling Installation of Third-Party Applications
Event Trigger Yes
Event Action Recording, Notification, Alarm
Data Streaming Yes
Built-In Installation Aids Pixel Counter, Remote Focus, Remote Zoom, OptimizedIR with Adjustable IR Illumination Intensity
Environmental
Operating Temperature -40 to 122°F / -40 to 50°C
Startup Temperature -22 to 122°F / -30 to 50°C
Storage Temperature -40 to 149°F / -40 to 65°C
Operating Humidity 10 to 100%
IP Rating IP66
IK Rating IK10
General
Memory 2048 MB RAM / 512 MB Flash
Media/Memory Card Slot Single Slot: microSD/microSDHC/microSDXC
Pan/Tilt None
I/O Connections 1 x RJ45
1 x 4-Pin Terminal Block
IR Illuminators 850 nm
IR Range 130' / 39.6 m
Video Management Software AXIS Companion
AXIS Camera Station
Video Management Software from Axis Application Development Partners
Internal Storage None
External Storage Options NAS
Power Source PoE 802.3af (15 W), PoE 802.3at (30 W)
Power Consumption 8.6 W
Dimensions ø: 5.9 x H: 4.1" / ø: 149.0 x H: 104.0 mm
Weight 1.8 lb / 800 g
ModelDescriptionPriceStock
01598-001 P3248-LVE 8MP Dome Camera, Object Analytics, IR, IK10, IP66, 4.3-8.6mm VF Lens $2,223.38
Call
Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document P3248LVE Datasheet.pdf 511KB Download
PDF Document P3248LVE installation guide.pdf 6MB Download
Product Videos
AXIS P3247/48-LV/-LVE - Streamlined varifocal domes in 5 MP and 4K

AXIS P32 Network Camera Series, new additions.
