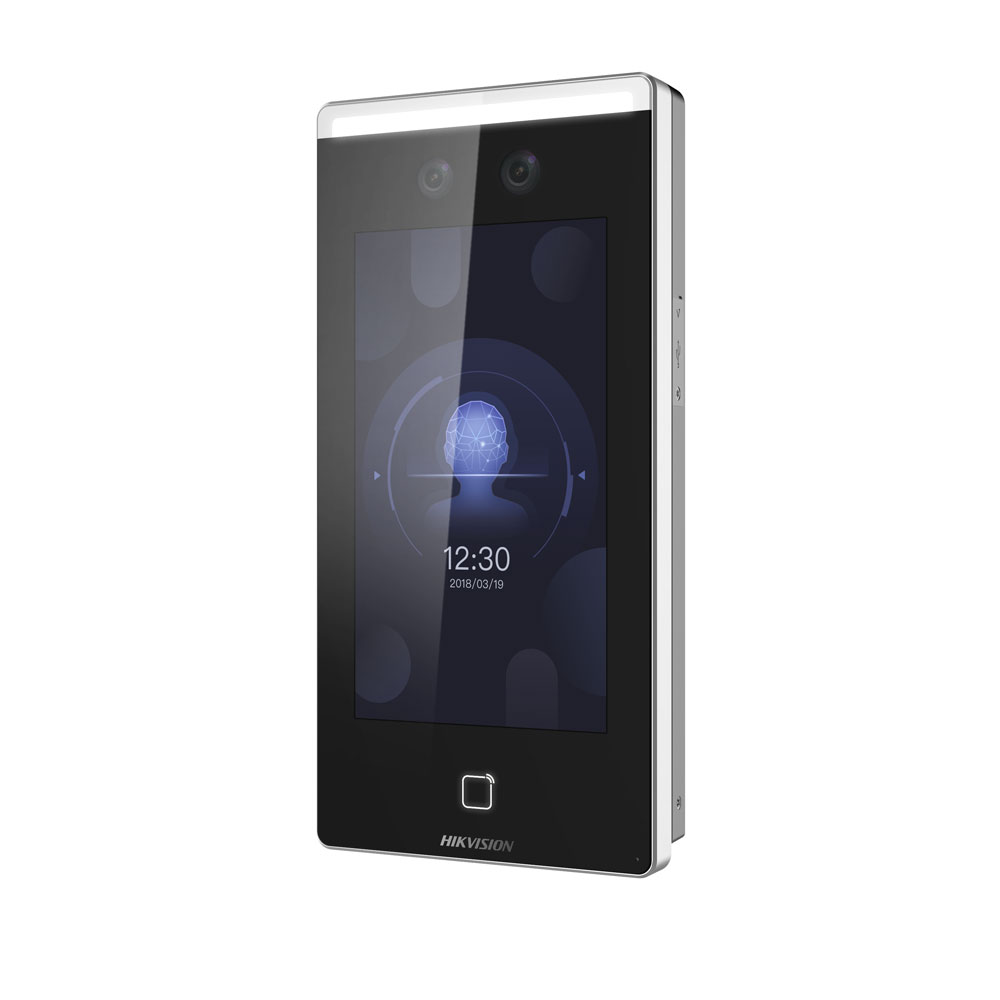

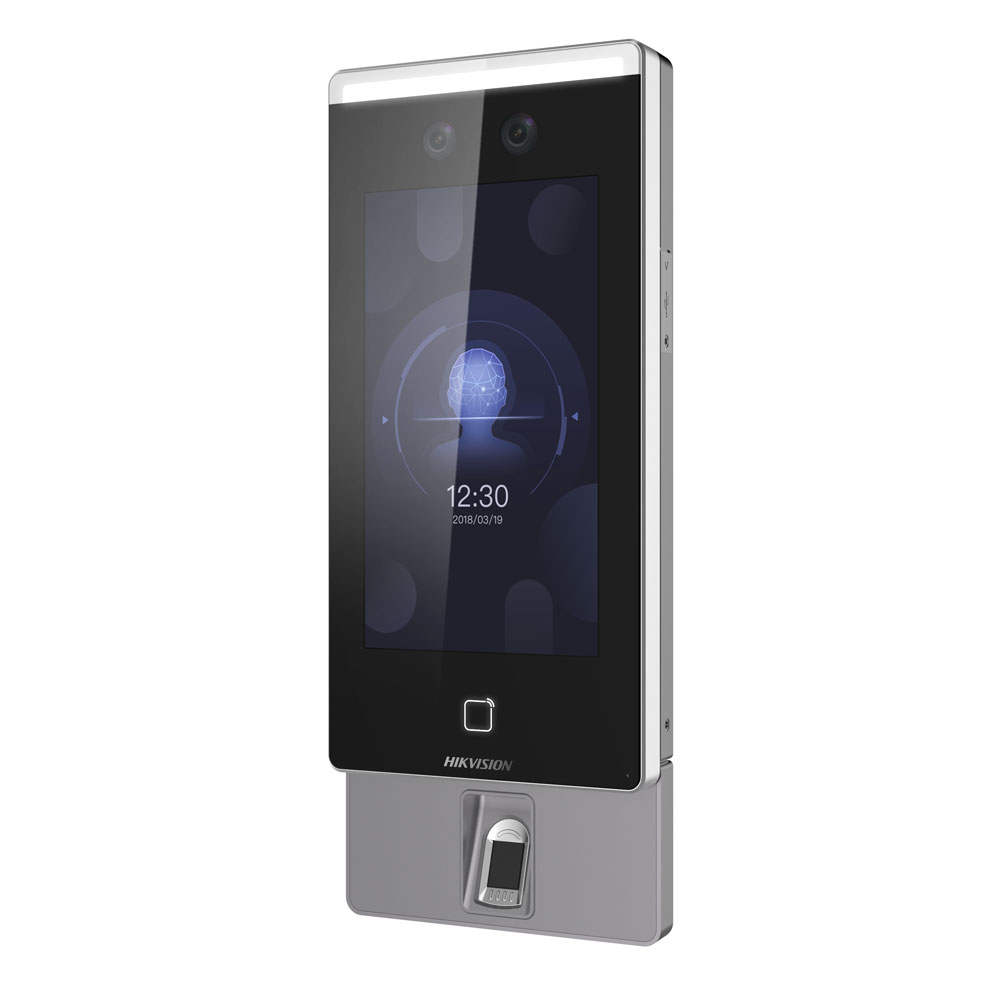

Hikvision DS-K1T671

The Hikvision's DS-K1T671 series is capable of connecting to an access control system via Wiegand to achieve a touchless environment for sites such as hospitals, schools or campuses.

The DS-K1T671 series face recognition terminal is a kind of access control device with large screen ratio which supports 1: N face authentication, fingerprint authentication, card authentication etc. It can be mainly applied in multiple scenarios, such as dwellings, government buildings, banks, enterprises and so on.

Features

• 7-inch touch screen, 2 Mega pixel wide-angle lens
• Adjusts supplement light brightness manually
• Face recognition in dark environment
• Face recognition distance: 0.3m to 3m
• Suggested height for face recognition between 1.4 m and 1.9 m
• Deep learning algorithm
• 6,000 face capacity, 5,000 fingerprint capacity, and 50,000 event capacity
• Face anti-spoofing
• Multiple authentication modes
• Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
• Stand-alone operation
• Transmits data to the client software via TCP/IP communication and saves the data on the client software
• Capture linkage and captured pictures saving
• Manage, search and set device data after logging in the device locally
• Connects to one external card reader or access controller via RS-485 protocol
• Connects to external access controller or Wiegand card reader via Wiegand protocol
• Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
• Two-way audio with client software, indoor station, and master station
• Remote live view via RTSP protocol; encoding mode: H.264
• NTP, manually time synchronization, and auto synchronization
• Audio prompt
• Watchdog design and tamper function
• Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
• Supports multiple languages: English, Spanish, Arabic, Thai, Indonesian, and Russian
• Supports EHome 5.0 (ISUP 5.0), and ISAPI protocol
• Configuration via web browser
