POSMarket SKU: Z17934
This model is available in 5 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

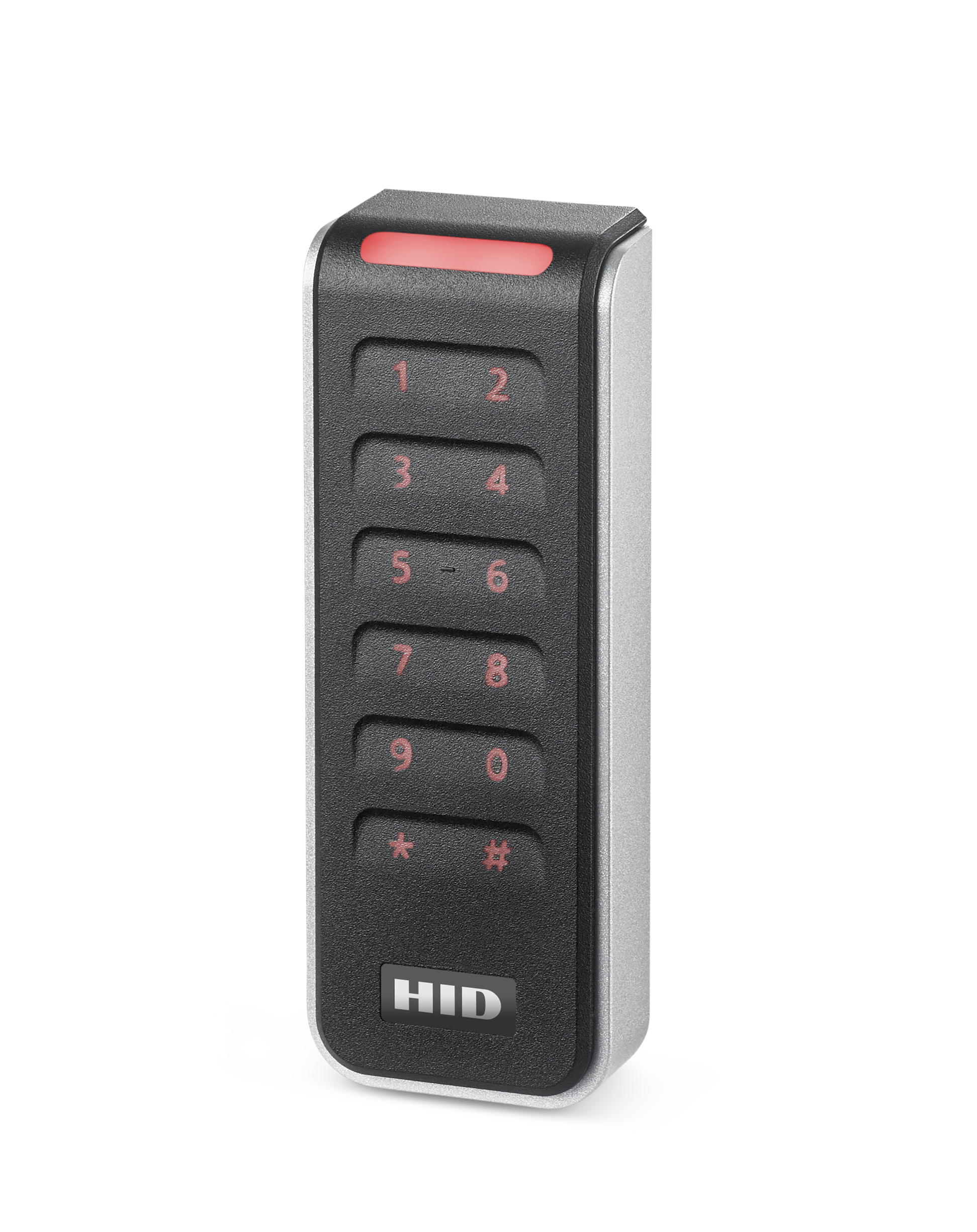

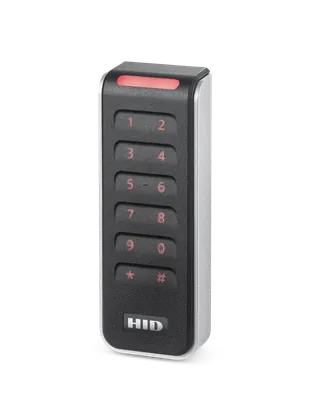

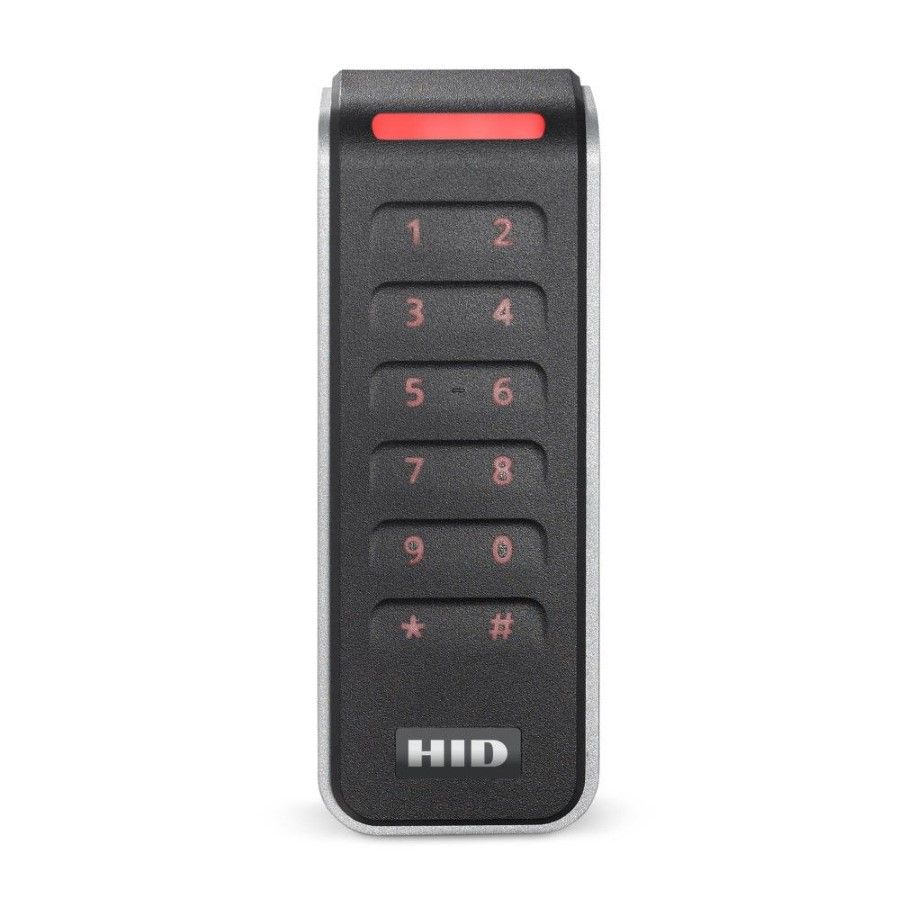

The contactless smartcard keypad reader – multi-technology, mobile ready, mullion mount
| HID Signo Reader Model | 20K |
| "00" Standard Profile | 13.56MHz SEOS, iCLASS SE®, iCLASS®, MIFARE (Classic, DESFire EV1/EV2 with SIO encoding), Mobile, CSN |
| "02" Smart Profile | 13.56MHz SEOS, iCLASS SE®, iCLASS®, MIFARE (Classic, DESFire EV1/EV2 with SIO encoding), Mobile |
| "01" SEOS Profile | 13.56MHz SEOS, Mobile |
| Typical Read Range | Seos®, MIFARE Classic, MIFARE DESFire EV1/EV2 & ISO14443A Single Technology Cards – 4 to 10 cm (1.6 to 4 in) HID / AWID Proximity®, Indala Proximity®, EM Proximity & 125 kHz Single Technology Cards –6 to 10 cm (2.4 to 4 in) |
| Mounting | Suited for mullion-mount door installations or any flat surface mounting |
| Color | Black bezel with silver trim baseplate |
| Keypad | Yes (2 x 6 layout) |
| Dimensions (width x length x depth) | 45 mm x 121.5 mm x 21.5 mm (1.78 in x 4.79 in x 0.85 in) |
| Product Weight | Pigtail: 110 g (3.88 oz) Terminal: 90 g (3.17 oz) |
| Operating Voltage | 12V DC |
| Current Draw | NSC4: 65 mA Peak: 250 mA Max. Avg: 75 mA IPM5: 48 mA |
| Device Input and Output | Input: Tri-color LED, Buzzer, Hold @ Active Low Output: Tamper Relay 0-60V DC @ 100mA Max (Dry Contact) |
| Operating Temperature & Humidity | -35° C to +66° C (-31° F to +150° F) 0%to 95% non-condensing |
| Storage Temperature | -40° C to +85° C (-40° F to +185° F) |
| Environmental Rating | UL294 Outdoor and Indoor rated, IP65 |
| Transmit Frequency | 125 kHz, 13.56 MHz, and 2.4 GHz |
| Communications & Panel Connection | Wiegand and RS-485 Half Duplex (OSDP) via Pigtail (18 in / 0.5 m) or Terminal Strip |
| Device Management | HID Reader Manager / OSDP configuration |
| Certifications | UL294/cUL (US), FCC (US), IC (Canada), CE (EU), RCM (Australia, New Zealand), SRRC (China), KCC (Korea), NCC (Taiwan), iDA (Singapore), RoHS, MIC (Japan), GreenCircle, Bluetooth SIG, and additional regions. |
| Security Ratings | EAL 6+ Certified Secure Element Hardware |
| Housing Materials | Polycarbonate – UL94 V0 |
| UL Reference Number | 20 |
| Warranty | Limited Lifetime |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 20KNKS-00 | Signo 20K Slim 2x6 Keypad Reader, Standard Profile, Pigtail | $620.81 | Add to Cart | |
| 20KTKS-00 | Signo 20K Slim 2x6 Keypad Reader, Standard Profile, Terminal | $620.81 | Add to Cart | |
| 20KNKS-26EM | Signo 20K Slim 2x6 Keypad Reader, Standard Profile, Pigtail, 26 Bit EM format | $620.81 | Add to Cart | |
| 20KNKS-02 | Signo 20K Slim 2x6 Keypad Reader, Smart Profile, Pigtail | $576.54 | Add to Cart | |
| 20KNKS-01 | Signo 20K Slim 2x6 Keypad Reader, SEOS Profile, Pigtail | $532.26 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
Signo Reader Datasheet.pdf | 360KB | Download |
