POSMarket SKU: Z17578

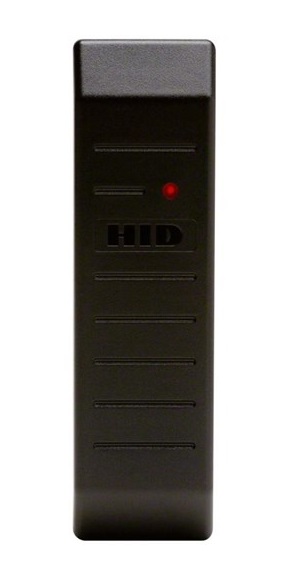

The MiniProx that is mullion mount proximity card reader
| MiniProx® | |
| Model Number | 5365 (Wiegand interface) |
| Read Range | ProxCard® II card - up to 5.5” (14 cm) ISOProx® II card - up to 5” (12.7cm) DuoProx® IIcard – up to 5” (12.7 cm) Smart ISOProx®/DuoProx® cards –upto 5” (12.7 cm) Proximity & MIFARE® card - up to 5” (12.7 cm) ProxCard® Plus card - up to 2” (5.1 cm) ProxKey® II key fob - up to 2” (5.1cm) MicroProx® Tag - up to 2.5” (6.4 cm) |
| Mounting | Unobtrusive design mounts directly onto metal including door mullions |
| Color | CLASSIC series cover in gray, beige, black or white (or) Designer series cover in grey, wave blue, black or white |
| Keypad | No |
| Dimensions | 6.0†x 1.7†x 1.0†(15.2 x 4.3 x 2.54 cm) |
| Power Supply | Standard MiniProx: 5-16 VDC Haz. Loc. MiniProx: 5-16 VDC Linear power supplies are recommended |
| Power Requirements (Standard Power) | Current (DC) Average 30 mA, Peak 75 mA |
| Operating Temperature | -22° to 150° F (-30° to 65° C) |
| Operating Humidity | 0-95% relative humidity noncondensing |
| Transmit Frequency | 125 kHz |
| Environmental | IP55 |
| Cable Distance | Wiegand interface: 500 feet (150 m) Clock-and-Data interface: 50 feet (15 m) Recommended cable is ALPHA 1295 (22 AWG) 5 conductor minimum stranded with overall shield or equivalent. Additional conductors may be required for LED or beeper control. |
| Termination | Pigtail or Terminal strip |
| Certifications | UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), C-tick (Australia, New Zealand), SRRC (China), MIC (Korea), NCC (Taiwan), MIC (Japan), iDA (Singapore), RoHS |
| Housing Material | UL94 Polycarbonate |
| Warranty | Lifetime |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 5365EKP00 | MiniProx 125 kHz Mullion Mount Proximity Reader (Wiegand Output), | $296.45 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
MiniProx Reader Datasheet.pdf | 497KB | Download |
|
HID Prox Reader Comparison Chart.pdf | 148KB | Download |
