POSMarket SKU: Z17605
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

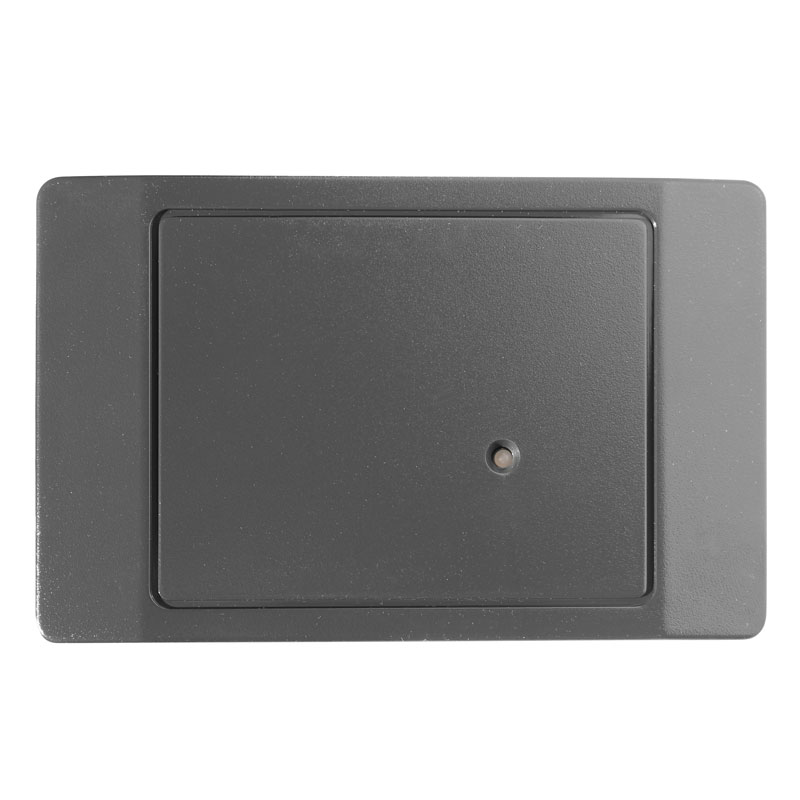

Is a 125 kHz Proximity Wall Switch Low profile proximity card reader
| ThinLine® II | |
| Model Number | 5395 Wiegand interface |
| Read Range | ProxCard® II card - up to 5.5” (14 cm)<br>ISOProx® II card - up to 5” (12.7 cm) <br>DuoProx® II card - up to 5”(12.7 cm) Smart ISO®/DuoProx® cards - up to 5” (12.7 cm) Proximity & MIFARE® card - up to 5” (12.7 cm) ProxCard® Plus card - up to 1.5” (3.8 cm) ProxKey® II key fob - up to 2” (5.1 cm) MicroProx® Tag - up to 3” (7.6 cm) |
| Mounting | Mounts on a single-gang electrical box for easy installation. Mounts directly on metal with minimal impact on read range performance. |
| Color | CLASSIC series cover in gray, beige, black or white (or) Designer series cover in grey, wave blue, black or white |
| Keypad | No |
| Dimensions | 4.70†x 3.00†x 0.68†(11.9 x 7.6 x 1.7 cm) |
| Power Supply | 5-16 VDC (Linear power supplies are recommended.) |
| Power Requirements (Standard Power) | Average: 30 mA (5 VDC); 20 mA (12 VDC) Peak: 110 mA (5 VDC); 115 mA (12 VDC) |
| Operating Temperature | -22° to 150° F (-30° to 65°C) |
| Operating Humidity | 0-95% relative humidity noncondensing |
| Transmit Frequency | 125 kHz |
| Environmental | IP55 |
| Cable Distance | Wiegand interface: 500 feet (150 m) Clock-and-Data interface: 50 feet (15 m) Recommended cable is ALPHA 1295 (22 AWG) 5 conductor minimum stranded with overall shield or equivalent. Additional conductors may be required for LED or beeper control. |
| Certifications | UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), C-tick (Australia, New Zealand), SRRC (China), MIC (Korea), NCC (Taiwan), MIC (Japan), iDA (Singapore), RoHS |
| Housing Material | UL94 Polycarbonate |
| Warranty | Lifetime |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 5395CK100 | ThinLine II 125 kHz Wall Switch Proximity Reader (Wiegand Output), Grey | $348.43 | Add to Cart | |
| 5395BLK | Thinline 125 kHz Wall Switch Proximity Reader (Wiegand Output), Black | $348.43 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
5395 Thinline Datasheet.pdf | 514KB | Download |
|
HID Prox Reader Comparison Chart.pdf | 148KB | Download |
