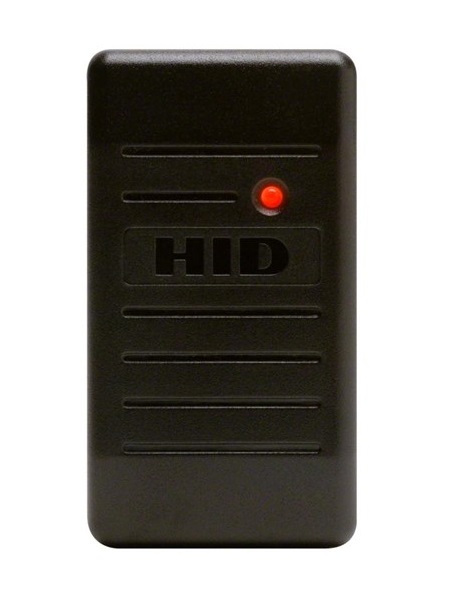

HID 6005B ProxPoint Plus

from $205.98 (incl. GST)

POSMarket SKU: Z17565

This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

Value priced 125 kHz mini mullion proximity card reader

Product Rating
Product Overview
HID's ProxPoint® Plus reader combines multiple configuration options with an attractive, inconspicuous design and economical price. Its secure potted electronics are ideal for both indoor and outdoor applications.
  • Small sized, low cost reader features a beeper and multicolor LED which can be host and/or locally controlled.
  • Potted reader suitable for indoor or outdoor use.
  • 18" (45 cm) wire pigtail standard; consult factory for 9' (2.7 m) pigtail available by special order.
  • Classic Series covers available in black, gray, white or beige. Designer Series covers available in black or gray.
Features
  • Features a beeper and multicolor LED which can be hostand/ or locally controlled.
  • Enables various beeper and LED configurations, depending on individual site requirements.
  • Can read HID cards with formats up to 85 bits.
  • Designed for mounting directly onto metal with no change in read range performance.
  • Available with either Wiegand or Clock-and-Data (magnetic stripe data) output.
  • Compatible with all standard access control systems.
  • Aesthetic design available in two cover designs and in four colors to match any decor.
  • Includes multilingual installation manual.
Product Specifications
Prox Point® Plus
Model Number 6005B Wiegand Interface
6008B Clock-and-Data Interface
Read Range ProxCard® II card - up to 3” (7.6 cm)
ISOProx® II card - up to 2.5” (6.35 cm)
DuoProx® II card – up to 2.5” (6.35 cm)
Smart ISOProx®/DuoProx® II cards – up to 2.5”(6.35 cm)
Proximity& MIFARE® card - up to 2.5” (6.35 cm)
ProxCard® Plus card - up to 1.0” (2.5 cm)
ProxKey® II key fob - up to 1.5”(3.8 cm)
MicroProx® Tag - up to 2”(5.1 cm)
Mounting Unobtrusive design can be mounted directly onto metal such as door mullions.
Color CLASSIC series cover in gray, beige, black or white (or)
Designer series cover in grey, wave blue, black or white
Keypad No
Dimensions 3.14” x 1.72” x 0.66” (7.96 x 4.37 x 1.68 cm)
Power Supply 5-16 VDC, Linear supply recommended
Power Requirements (Standard Power) Current (DC)
Average 30 mA, Peak 75 mA
Operating Temperature -22° to 150° F (-30° to 65° C)
Operating Humidity -95% relative humidity noncondensing
Transmit Frequency 125 kHz
Environmental IP55
Cable Distance Wiegand/Clock-and-Data Interface 500ft (150m) 22 AWG
Termination Pigtail
Certifications UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), C-tick (Australia, New Zealand), SRRC (China), MIC (Korea), NCC (Taiwan), MIC (Japan), iDA (Singapore), RoHS
Housing Material UL94 Polycarbonate
Warranty Lifetime
ModelDescriptionPriceStock
6005BLK ProxPoint 125 kHz Mini Million Proximity Reader (Wiegand Output), Black $235.81
Call
 Add to Cart
6005BKB00 ProxPoint 125 kHz Mini Mullion Proximity Reader (Wiegand Output), Grey $235.81
Call
 Add to Cart
6008BKB00 ProxPoint 125kHz Mini Mullion Proximity Reader (Clock & Data Output) $205.98
Call
 Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document ProxPoint Plus Datasheet.pdf 578KB Download
