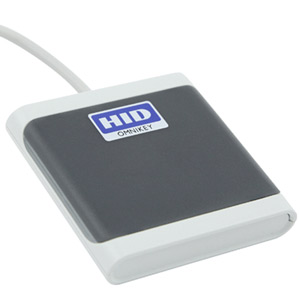

HID Omnikey 5027

$390.78 (incl. GST)

POSMarket SKU: Z17927

R50270001: Omnikey 5027 Contactless Reader, USB, Grey

Preconfigured USB high-frequency contactless reader

Product Rating
Product Overview
The HID Omnikey 5027 reader is an ideal solution for healthcare, pharmaceutical, financial services, enterprise, government and other organisations seeking higher security and access management. Through the use of the native human interface driver, the reader eliminates the need to install drivers, and can be used with standard PCs and workstations, as well as with thin and zero clients.

The HID Omnikey® 5027 high-frequency contactless reader with keyboard wedge interface is designed for customers seeking easy integrations with higher security and access management who want to utilize their existing access control badges for authentication to computers, networks or cloud applications beyond physical access control. For common cards and use cases, the reader comes preconfigured and ready to use out of the box. Easy configuration is available for different operating systems and card populations, as well as integration for various existing environments (ideal for SSO). Typical environments for the reader include healthcare, financial services, enterprise and government.

The reader comes preconfigured and can be used out of the box for the most common cards and use cases.

Features
  • Easy to integrate – straightforward utilization of existing access control credentials based on keyboard wedge
  • High-frequency credentials supported– including iCLASS Seos®, iCLASS SE®, MIFARE Classic® and MIFARE® DESFire® EV1/EV2 as well as NFC
  • Preconfigured – by default , for an easy output of most common credentials
  • Ease of configuration – with the Workbench Tool, configuration file or cards
Product Specifications
Omnikey 5027
Contactless Smart Card Interface
Protocols HID iCLASS, iCLASS Elite, iCLASS Seos
ISO 14443A/B, T=CL
MIFARE Classic, Ultralight, DESFire 0.6, EV1, EV2
ISO 15693 eg. Tag-It, MY-D, iCODE
NFC Tag 1,2,3,4*,5
Output Capabilities
Card Serial Number CSN (UID) Raw and Formatted
Physical Access Data (eg. Building ID) Raw and Formatted
Number of Output Fields Up to three output values configurable
Usage Indicator LED and/or Buzzer activation
Host Interface
USB Interface USB 2.0 Full Speed Device (12 Mbps)
USB 3.0 extended operability, tested with hubs/controllers
Connector / Cable USB Type A connector; 59.1" (150 cm) cable
Operating Systems (Keyboard Wedge Mode) Windows 10/8.1/8/7/Server 2016/Server 2012/Server 2008R2
Linux Debian 6.0+ / Ubuntu 11.04+/ Fedora 15+; Open SUSE 11.4+
Mac OS X; Android™4.x-8.x
Driver Native keyboard (Human Interface Device) driver from operating system
Configuration Options OMNIKEY Workbench Tool on MS Windows
Configuration API / Remote Management
Configuration cards
Human Interface
Status indicator White LED and Buzzer
Output Speed less than 300ms from card presentation to output start
Housing
Housing Poly Carbonate
Body Light Grey / Blue Colored Cover Plate
Customer-specific logo or color on request
Dimensions 2.32" x 2.32" x 0.44" (59 x 59 x 11,4 mm)
Weight ~71 g (2.5 oz)
Operating Conditions
Operating Temperature 32-158 F (0-70°C)
Operating Humidity 10-95% rH (not condensing)
Storage Temperature -40 - 176 F (-40 - 80°C)
Meantime between Failure (MTBF) 500.000 hours
Compliance and Regulatory
Compliance / Certification USB 2.0, (USB3.0 tested), TAA+B15
Regional Certifications CE, FCC, UL, RCM, ICES (Canada)
Environmental WEEE, RoHS3, Reach
Ordering Information
Warranty Two-year manufacturer warranty
Optional Mounting accessories kit
ModelDescriptionPriceStock
R50270001 Omnikey 5027 Contactless Reader, USB, Grey $390.78
Call
Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document Omnikey 5027 Datasheet.pdf 303KB Download
PDF Document Omnikey 5027 Software Developer Guide.pdf 1MB Download
