POSMarket SKU: Z17545
This model is available in 5 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

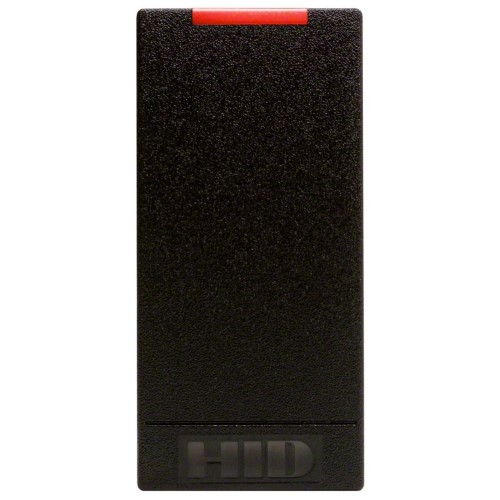

Is an iCLASS SE Mullion reader for secure high frequency Credentials.
| iCLASS SE® Express R10 | |
| General | |
| Model Name | R10 |
| Base Part Number | 900NxxxxF |
| Typical Contactless Read Range1 | 13.56 MHz Single Technology ID-1 Cards iCLASS® Seos: 2” (5cm) MIFARE DESFire® EV1 / MIFARE DESFire EV2: 2”(5cm) MIFARE® Classic: 2” (5cm) 13.56 MHz Single Technology Tags / Fobs iCFARE® Classic: 2” (5(3cm) MIFARE® Classic: 1.6” (4cm) Mobile IDs using Bluetooth & Seos[Gray fill] Twist and Go 6.6ft (2m) Tap 5.9" (15cm) |
| Mounting | Ideally suited for mullion-mounted door installations or any flat surface |
| Color | Black |
| Keypad | No |
| Dimensions | 1.9" x 4.1" x 0.9" (4.8 cm x 10.3 cm x 2.3 cm) |
| Product Weight (Pigtail) | 92g |
| Performance | |
| Operating Voltage | 12V |
| Current Draw - Standard Power 2 (mA) | 46 @ 12V |
| Current Draw - Intelligent Power Management (IPM) Mode2 (mA) | 28 @ 12V |
| Peak Current Draw - Standard Power or IPM Mode2 (mA) | 250 @ 12V |
| NSC3 Power Consumption – Standard Power Mode (W) | 0.55 @ 12V |
| NSC3 Power Consumption – w/ IPM (W) | 0.35 @ 12V |
| Environmental | |
| Operating Temperature | -35°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 5% to 95% relative humidity non-condensing |
| Environmental Rating | Environmental Rating Indoor/Outdoor IP55; IP65, if installed with optional gasket IP65 Transmit Frequency |
| Transmit Frequency | 13.56 MHz, 2.4GHZ |
| 13.56 MHz Card Compatibility | Secure Identity Object™ (SIO) on Seos®ISO14443A (MIFARE CLASSIC, MIFARE DESFire EV1 & MIFARE DESFire EV2) UID |
| Communications | Wiegand |
| Panel Connection | Pigtail |
| Reader Management | HID Reader Manager Mobile App for configuration, firmware upgrade and diagnostics |
| Certifications | UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), RCM (Australia, New Zealand), RoHS |
| Cryto Processor Hardware Common Criteria Rating | EAL5+ |
| Patents | www.hidglobal.com/patents |
| Housing Material | UL94 Polycarbonate |
| UL Ref Number | R10F |
| Warranty | Limited Lifetime |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 900NMP | iClass SE R10 Mini Million Reader, SE/SEOS, Mobile Ready, Terminal Block, OSDP for Integration | $254.10 | Add to Cart | |
| 900NTP-INT | iClass Legacy R10 Mini Mullion Reader, SE/SEOS, OSDP for Integration | $228.11 | Add to Cart | |
| 900NBNNFK | iCLASS SE Express R10 BLE Reader with SEOS Only, CSN Supress, No Mobile Key | $182.88 | Add to Cart | |
| 900NNN | R10 Mini Mullion Reader, SIO & SEOS, Wiegand, High Security, Config card required | $169.40 | Add to Cart | |
| 900NSNNFK200 | Express R10 Reader with SEOS Only, CSN Supress | $124.16 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
iCLASS SE Express R10 Reader Installation Guide.pdf | 2MB | Download |
|
iCLASS SE Express R10 Reader Datasheet.pdf | 306KB | Download |
|
iCLASS SE Express Readers vs. iCLASS SE Readers Comparison Chart | 136KB | Download |
