POSMarket SKU: Z17581

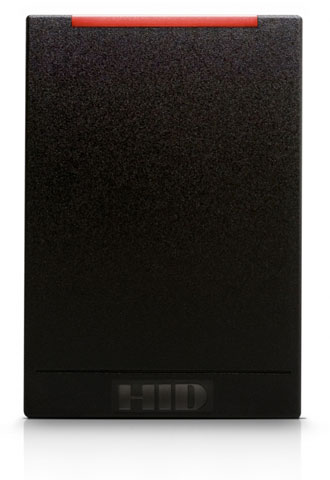

The multiCLASS SE that is contactless smart card reader - wall switch
| multiCLASS SE® RP40 | |
| Base Part number | 920P |
| Typical Read Range1 |
13.56 MHz Single Technology ID-1 Cards – SIO Model Data
iCLASS Seos: 2.0" (5 cm) iCLASS: 4.7" (12 cm) MIFARE Classic: 4.7" (12 cm). MIFARE DESFire EV1: 2.0" (5 cm) 13.56 MHz Single Technology Tags/Fobs – SIO Data Model iCLASS: 2.4" (6 cm) MIFARE Classic: 2.0" (5 cm) 125 kHz Single Technology ID-1 Cards HID Prox: 2.8" (7 cm) Indala Prox: 2.0" (5 cm) EM4102 Prox: 4.3" (11 cm) 125 KHz Single Technology Tags/Fobs HID Prox: 2.0" (5 cm) Indala Prox: 1.2" (3 cm) EM4102 Prox: 2.8" (7 cm) |
| Mounting | Wall Switch Size; designed to mount and cover single gang switch boxes primarily used in the Americas and includes a slotted mounting plate for European and Asian back box spacing |
| Color | Black |
| Keypad | Yes (4x3) |
| Dimensions | 3.3" x 4.8" x 1.0" 8.4 cm x 12.2 cm x 2.8 cm |
| Product Weight (Pigtail) | 7.8oz (222g) |
| Product Weight (Terminal Strip | 7.6oz (216g) |
| Operating Voltage Range | 5-16 VDC, Linear supply recommended |
| Operating Temperature | -31º to 150º F (-35º to 65ºC) |
| Storage Temperature | -67º to 185º F (-55º to 85º C) |
| Operating Humidity | 5% to 95% relative humidity non-condensing |
| Environmental Rating | Indoor/Outdoor IP55; IP65 if installed with optional gasket (IP65GSKT) |
| Transmit Frequency | 13.56 MHz & 125 kHz |
| 13.56 MHz Card Compatibility | Secure Identity Object™ (SIO®) on iCLASS Seos, iCLASS SE/SR, MIFARE DESFire EV1 and MIFARE Classic (On by Default) ) standard iCLASS Access Control Application (order with Standard interpreter) ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN MIFARE Classic and MIFARE DESFire EV1 custom data models FeliCa™4 CSN, CEPAS4 CSN or CAN |
| 125 kHz Card Compatibility | HID Prox4, AWID4, Indala, EM41024 |
| Communications | Optional OSDP with SCP over RS4854 Wiegand/Clock-and-Data Interface 500ft (150m) (22AWG) - Use Shielded cable for best results |
| Panel Connection | Pigtail or Terminal Strip |
| Certifications | UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), C-tick (Australia, New Zealand), SRRC (China), MIC (Korea)4, NCC (Taiwan)4, iDA (Singapore)4, RoHS , FIPS-201 Transparent FASC-N Reader |
| Cryto Processor Hardware Common Criteria Rating | EAL5+ |
| Patents | US7180403, US7439862, US7124943, US5952935, US6058481, US6337619 |
| Housing Material | UL94 Polycarbonate |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 920PTN | iClass SE RP40 Wall Switch Reader, SIO & SEOS with Legacy , Std Prox, Wiegand, Black | $342.65 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| Honeywell 12V 7A Power Supply for CT60 RP2 RP4 | 12V/7A Power Supply for CT60/RP2/RP4, without power cord (sold separately). | $120.18 | View Product |
| Honeywell Edge Service Plat RP4 2D 5Y | RP4, Edge Service, Platinum, 2 Day, 5 Year, New Contract | $683.10 | View Product |
| Honeywell Edge Service Plat RP4 2D 1Y RNW | RP4, Edge Service, Platinum, 2 Day, 1 Year, Renewal | $145.48 | View Product |
| Fuji Xerox Edge Service Gold RP4 5D 5Y | RP4, Edge Service, Gold, 5 Day, 5 Year, New Contract | $651.75 | View Product |
| Honeywell Edge Service Gold RP4 5D 3Y | RP4, Edge Service, Gold, 5 Day, 3 Year, New Contractv | $297.28 | View Product |
| Honeywell Edge Service Gold RP4 5D 1Y RNW | Honeywell RP4, Edge Service, Gold, 5 Day, 1 Year, Renewal | $120.18 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
HID multiCLASS SE Reader Datasheet.pdf | 324KB | Download |
|
iCLASS SE_multiCLASS SE Installation Guide.pdf | 2MB | Download |

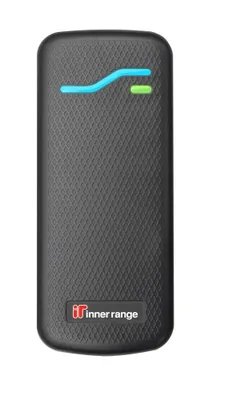

Integriti 994720
Access Control > Card Enrollment Station and Reader

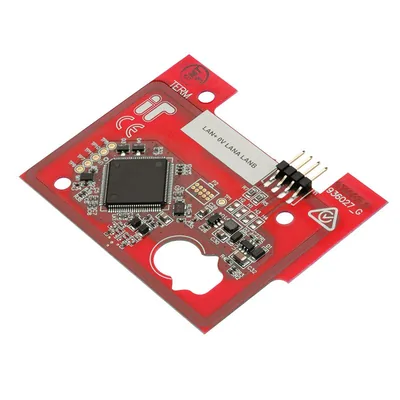

Integriti 994721PCB&K
Access Control > Card Enrollment Station and Reader

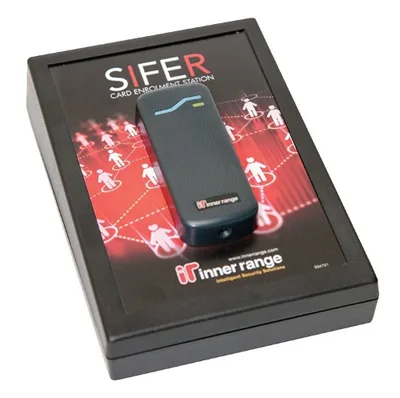

Integriti 994751AU
