POSMarket SKU: Z17761

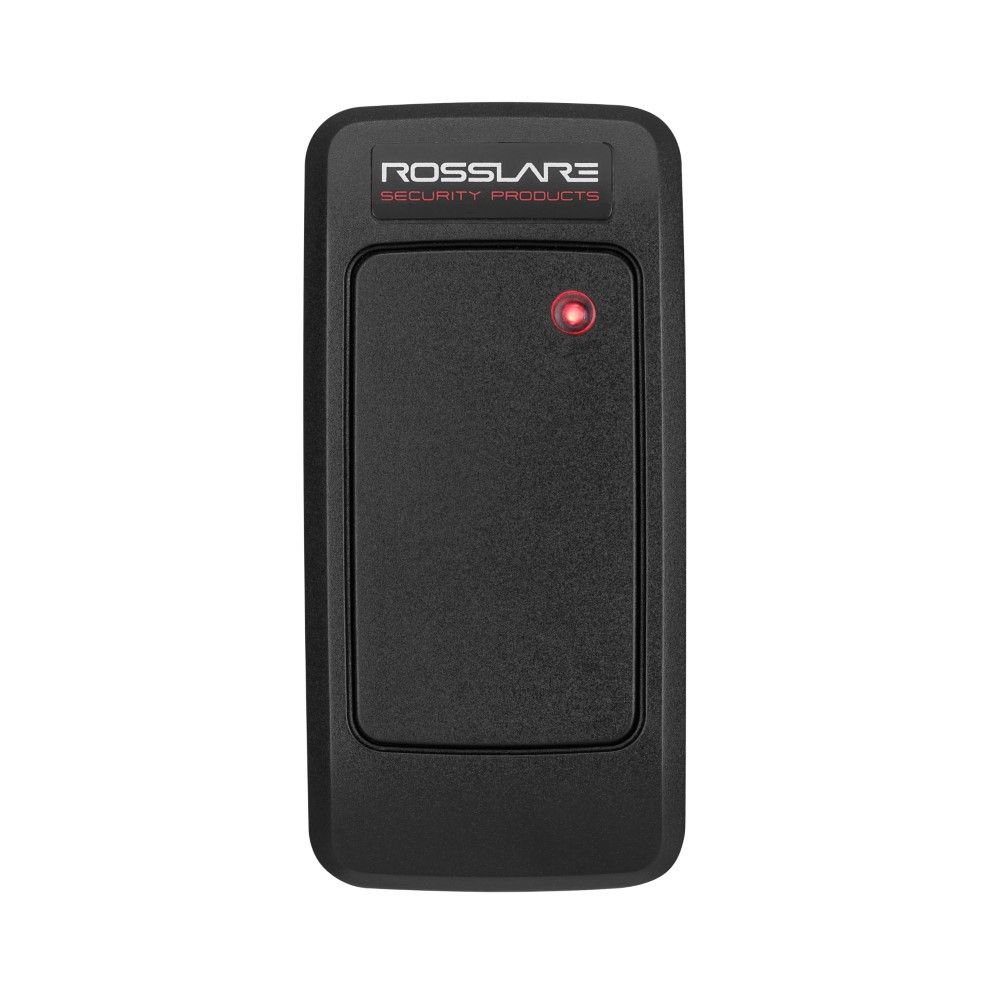

Proximity Readers Series 125 kHz
| AY-x12C | |
| Electrical Specifications | |
| Operating Voltage Range | 5 – 16 VDC, from a regulated power supply |
| Standby Input Current | 60 mA @ 12 V |
| Maximum Input Current | 120 mA @ 12 V Maximum read range*: 8 cm (3.2 in.) to 10 cm (3.9 in.) Modulation: ASK at 125 kHz |
| Proximity Card Reader | Compatible cards: 26-Bit EM cards * Measured using a Rosslare proximity card or equivalent. Range also depends on electrical environment and proximity to metal. |
| Tamper | Output Open collector, active low, max. sink current 16 mA |
| LED Control Input | Dry Contact, N.O. |
| Operational Specifications | |
| Output Format | Wiegand 26-Bit, RS-232, or Clock & Data |
| Audio/Visual | Tri-colored LED indicator, built-in sounder |
| Design | Epoxy-potted, fully-sealed in a rugged polycarbonate enclosure. Suitable for harsh environments. |
| Environmental Specifications | |
| Operating Environment | Water resistant, suitable for outdoor use (IP65) |
| Operating Temperature | -31ºC to 63ºC (-25ºF to 145ºF) |
| Operating Humidity | 0% to 95% (non-condensing) |
| Physical Specifications | |
| AY-K12C | Dimension: 80 x 40 x 12.8 mm (3.2 x 1.6 x 0.5 in.) Weight 70.5 g (2.5 oz) |
| System Components | The AY-x12C series is compatible with a variety of Rosslare's controllers, as well as with many third-party access control systems. A mounting spacer is available for installations over metallic surface for selected models. |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| AY-K12C | Micro-Mullion Proximity Reader, Wiegand, IP65 | $63.53 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
AYx12C Datasheet.pdf | 362KB | Download |
