Rosslare AYC-Q6355

$279.13 (incl. GST)

POSMarket SKU: Z17957

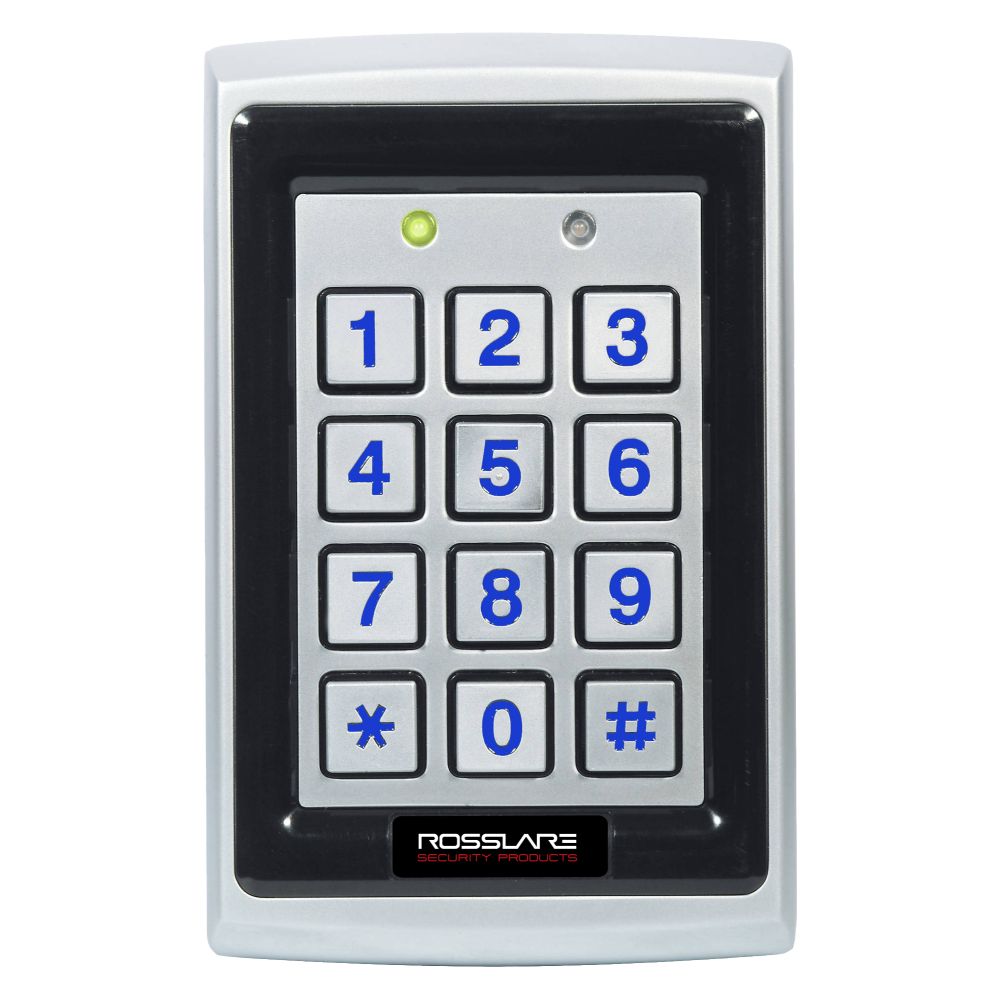

AYC-Q6355: Anti-Vandal Mifare Smartcard Contactless Reader with Keypad , CSN Select, Convertible

CSN Select Convertible Smart Card Readers

Product Rating
Product Overview
The CSN SELECT AYC-x6355 is a series of multi-credential technology contactless smart card (13.56 MHz) readers with backlit keypad for use in access control system solutions and includes Rosslare’s convertible technology. They support access by an NFC compatible Android smartphone app*. The readers have the flexibility to read the Card Serial Number (CSN) from many smart card RFID standards, perfect for transitioning from one technology to another. UV resistant and with an IP65 rated sleek and modern design, the readers can be used comfortably in any installation environment whether indoors or outdoors.

The Rosslare ROS-AYCQ6355 is an anti-vandal Mifare smartcard contactless reader with keypad, which provides the capability of serial ID reading from many smart card RFID standards which is great for Mifare cards to any standard access control system. With 7 programmable output formats, it will fit almost any existing system's needs and required read information, making it a very simple, reliable and cost effective way to upgrade your system to smartcard standard.

This fully sealed, epoxy potted unit provides a weatherproof and vandal-resistant solution for extremely harsh environments.

Features
  • Selectable Wiegand output formats using the CS-HCT hardware configuration tool for the DR-6255 application
  • Eight keypad transmission formats are available and can be locally selected via keypad programming
  • Features Rosslare's convertible technology
  • NFC android smartphone is supported with the android app for host card emulation (HCE)
  • Sleek and modern design
  • Addressable OSDP connectivity, up to 32 addresses using DIP switches
  • Customisable control and status lines available with the CSN SELECT Configuration Card Tool for DR-6255
  • Two tri-colored LED operation
  • Optical wall tamper detection
  • Blue backlit keypad with power saving options (On, Off, Dimming)
  • IP65 rated and made of tough polycarbonate UV-resistant plastic
  • Comes with mounting template and installation kit for easy installation
Product Specifications
AYC-Q6355
Electrical Specifications
Operating Voltage Range 8 to 16 VDC from a regulated power supply
Current at 12 VDC AY-Q6355: Standby 145 mA, Maximums: 200 mA
Read Range* AY-Q6355: 5 cm (2.5 in.)
Tamper Output Open collector, active low, max. sink current 16 mA
Control Inputs Dry Contact, N.O.
Keypad 3x4 matrix backlit keypad (used also for local programming)
Reader Data Output Formats CSN Wiegand 26-Bit* and keypad with eight common output formats
RS485 – OSDP
Environmental Specifications
Operating Environment Weather-resistant, UV-resistant, meets IP65, epoxy-potted, suitable for indoor and outdoor use
Operating Temperature Range -35°C to 66°C (-31°F to 150°F)
Operating Humidity Range 0% to 95% (non-condensing)
Physical Specifications
Dimensions (H x W x D) 120 × 76 × 21.5 mm (4.7 x 3 x 0.9 in.)
Weight 430 g (15.2 oz.)
Weight 430 g (15.2 oz.)
System Components The AYC-x6355 readers are compatible with a variety of Rosslare controllers, as well as with many third-party access control systems supporting Wiegand or OSDP interfaces.
Product Warranty 5-Year Limited Product Warranty
ModelDescriptionPriceStock
AYC-Q6355 Anti-Vandal Mifare Smartcard Contactless Reader with Keypad , CSN Select, Convertible $279.13
Call
 Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document AYCx6355 Datasheet.pdf 2MB Download
PDF Document AYCx6355 Series Installation Guide.pdf 1MB Download
