POSMarket SKU: Z15956
This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
Security Controller
| Security Controller (ISC) | ||
| Physical | ||
| Enclosure Dimensions | Medium size enclosure 460(L) x 358(W) x 85(D) (mm) | |
| PCB Dimensions | 200(L) x 200(W) x 45(D) (mm) | |
| Shipping Weight | 6.5kg (In medium enclosure with mains transformer and cover) | |
| Installation Environment | 0ºC - 50ºC @15% - 90% Relative humidity (non-condensing) | |
| Cabinet Battery Bracket | To suit 12V 7AH sealed lead acid battery | |
| Electrical | ||
| Power Supply Type | Type A (EN50131-1) | |
| Transformer Input Voltage | 240V AC -10% / +10%. 50Hertz | |
| Transformer Output | 16.5V AC. 50 Hertz | |
| Current Consumption | Maximum 500 mA from 240V AC Source | |
| Fuse Protection | Separate AC mains input fuse. 1.0 AMP Slow Blow M205 (20mm) | |
| PCB AC Input Voltage | 16 to 18V AC. 50/60 Hertz | |
| Battery Charger Output | 13.75VDC -0.15/+.05 V (AC power required) | |
| 12V, Sealed Battery Capacity | Use 7.2AH or 18AH Lead Acid Type: Max 18AH | |
| Battery Input Fuse | 5 Amperes | |
| Low Battery Alarm | < 11V DC +/- 100mV | |
| Deep Discharge Protection | Activates at 10.4 V +/-100mV. Restores at 12.4V +/- 100mV | |
| LAN “POS†& DET+ | Output Voltage: 13.75V DC -0.15/+.05 V (When AC power Present) | |
| LAN “POS†& DET+ Smartfuse trip current | 2 Amperes | |
| Maximum Ripple | At maximum ancillary load current: < 200mV P-P / 75mV RMS | |
| Low DC Voltage Alarm | < 11V DC +/- 100mV | |
| Siren Drivers | Each capable of driving a 4 Ohm speaker (or 2 x 8 Ohm in parallel) | |
| RS-485 & UniBus Parameters | ||
| UniBus In-Cabinet Expansion | Up to 6 UniBus devices | |
| RS-485 Sub-LAN | Up to 250 RS-485 Sub-LAN Modules (maximum of 99 of any one type) | |
| Current Consumption | ||
| AC Source JP5 Setting Total Current Limit Static Controller Current Battery Capacit Max Ancillary Current | 1.5A Plug Pack Not Shorted Transformer:shorted 1.3 AMP 275mA 7 AH 700mA Shorted 2.2 AMP 275mA 7 AH 1.2A Transformer: Shorted 2.2 AMP 275mA 18 AH 480mA | |
| 12V 7.0Ah Sealed Lead Acid Battery | ||
| Part number | 1200 | |
| Cells Per Unit | 6 | |
| Voltage Per Unit | 12 | |
| Capacity | 6.5Ah@20hr-rate to 1.75V per cell @25 C | |
| Weight Approx. | 1.9 Kg | |
| Max. Discharge Current | 65A (5 sec) | |
| Internal Resistance | Approx. 35 mΩ | |
| Operating Temperature Range | Discharge: -20 ~60 °Charge: 0 °C~50°C Storage: -20 C~60 C 0°C | |
| Normal Operating Temperature Range | 25 C+/-5 C | |
| Float charging Voltage | 13.7 to 13.9 VDC/unit Average at 25 C | |
| Recommended Maximum Charging Current Limit | 2.0 A | |
| Equalization and Cycle Service | 14.6 to 14.8 VDC/unit Average at 25 C | |
| Self-Discharge | Valve Regulated Lead Acid (VRLA) batteries can be stored for o more than 6 months at 25 C. Self f-discharge ratio less than 3% o per month at 25 C. Pleas e charge bat teries before using | |
| Terminal | Faston Tab 187(F1)/Faston tab 250(F2) | |
| Constainer Material | A.B.S. (UL94-HB) , Flammability resistance of UL94-V2 can be available upon request. | |
| Dimensions | 151(L) 65(W) 100(H) | |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 996001AUPSB | Security Controller (ISC), Medium Enclosure Kit with Battery | $2,310.00 | Add to Cart | |

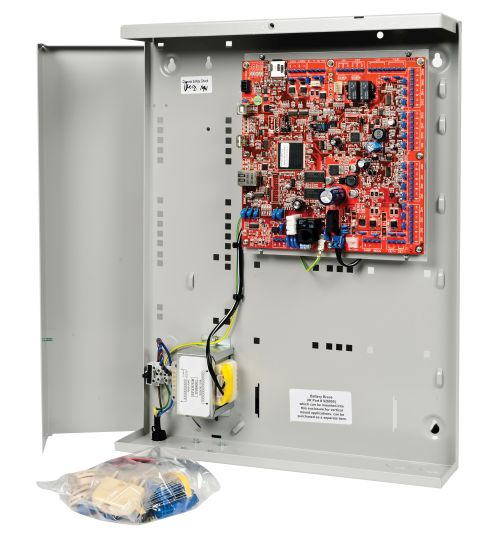

| 996001AUPS | Security Controller (ISC) in Medium Powered Enclosure | $2,279.75 | Add to Cart | |
| 996001AUPCB&K | Integriti Security Controller (ISC) | $2,047.38 | Add to Cart |
