Aperio AU103MU2SC11

The Aperio™ technology is leading the evolution of Online Wireless Door Locks. The new ASSA ABLOY AU100 series (available with the Australian, ANSI and Euro Lockset variants) is a fully commercial grade digital lockset that offers the durability and quality that is synonymous with ASSA ABLOY. Aperio is well known to provide a cost effective migration to an online electronic access control door. Sophisticated battery powered technology communicates wirelessly to a Hub. The Hub is then wired directly to the access control system and enables standard online access control functionality at significantly reduced costs to that of a hard wired door.

Aperio AU100 series is now fully retrofittable with various mortice lock variants without modification to the mortice whatsoever. In addition, for the first time, a capacitive keypad and proximity reader are also included in the one lock. Also available is the capability to wirelessly monitor the internal lever and door positioning. (Optional on the ANSI and Euro versions) The Aperio AU100 series features the V3 platform, which enables high frequency entrance doors to operate for two years on a standard set of batteries; maintaining remote opening functions of typically 5 seconds communication time between the Aperio lock and the access control system throughout the battery life. Aperio's AU100 series provides the benchmark for premium wireless digital locking.

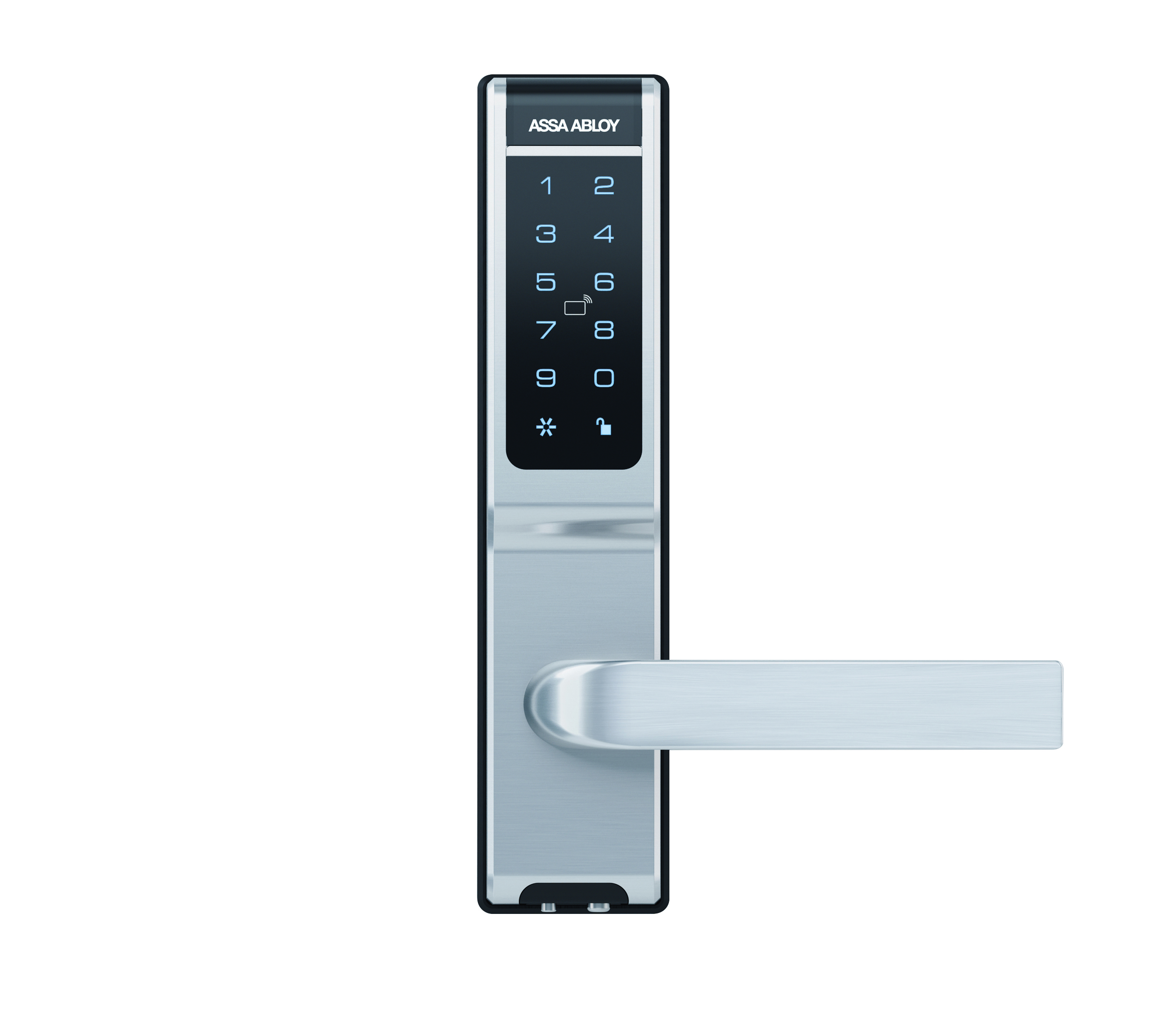

The strong vandal proof keypad is weather rated for outdoor conditions, including protection against light rain, sun and dust. The Aperio AU100 series features ultra smooth lever action provided by the ergonomic Lever which is designed to be compliant with the Disabled Door Act.

• Tubular Latch Version
  AU100-530

Features

• Wireless online access control
• Authorisation changes in real time
• Audit trails and time zones managed through existing system
• Compatible with Lockwood 3772 series mechanical mortice locks
• Smart off line credential cache for last 200 users
• Stores last 200 events and audit trails locally in the cylinder
• LED status indication
• Battery powered 40,000 operations
• Battery low warning sent to EAC system
• 4 x AA Alkaline

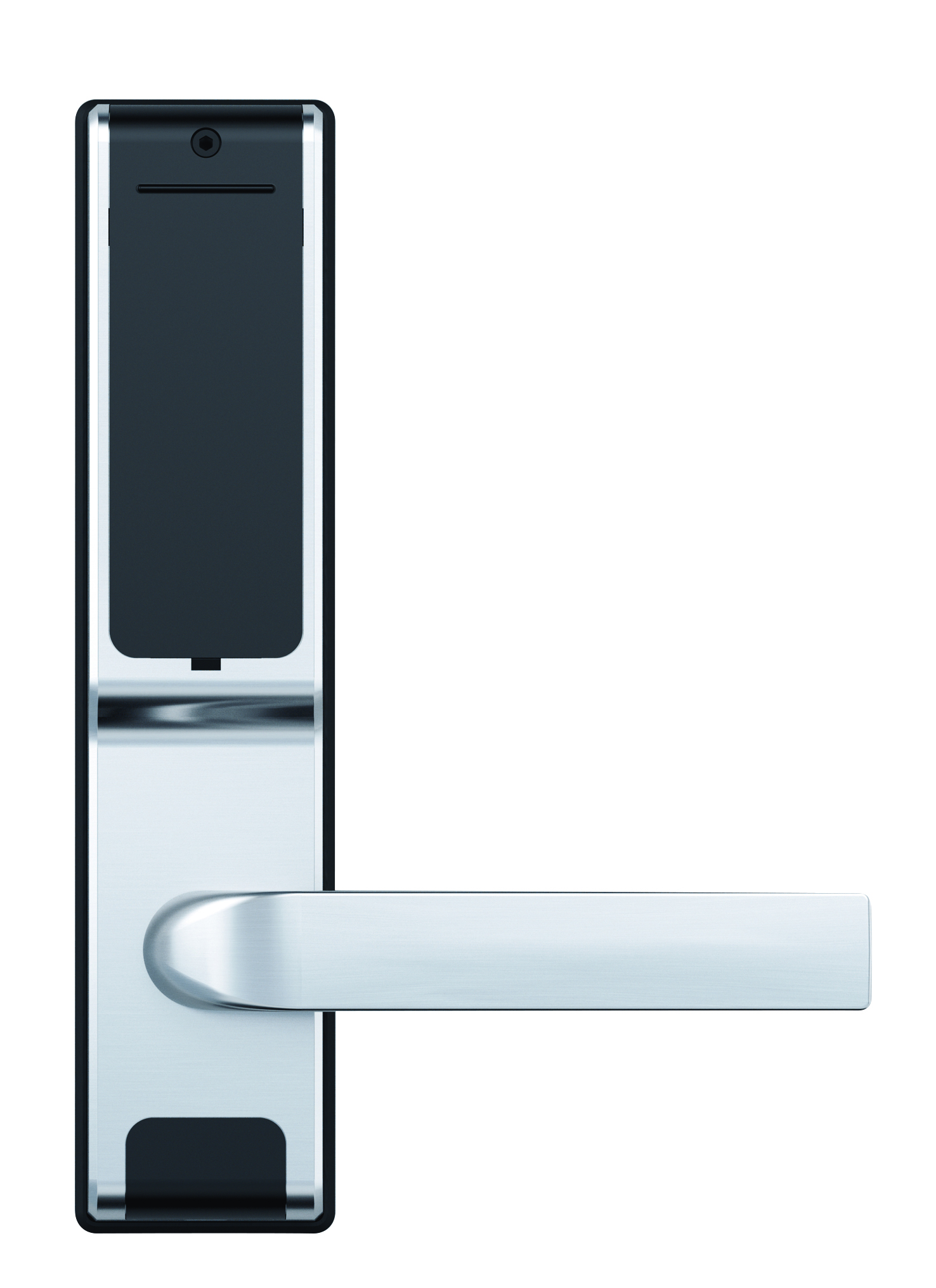

• Internal lever monitoring
• Door position switch
• Emergency egress
• Heartbeat communication: 5-10 seconds
• Supports multiple RFID credentials and NFC mobile access
