Lockwood 3572SC
$154.00 (incl. GST)
POSMarket SKU: Z17345

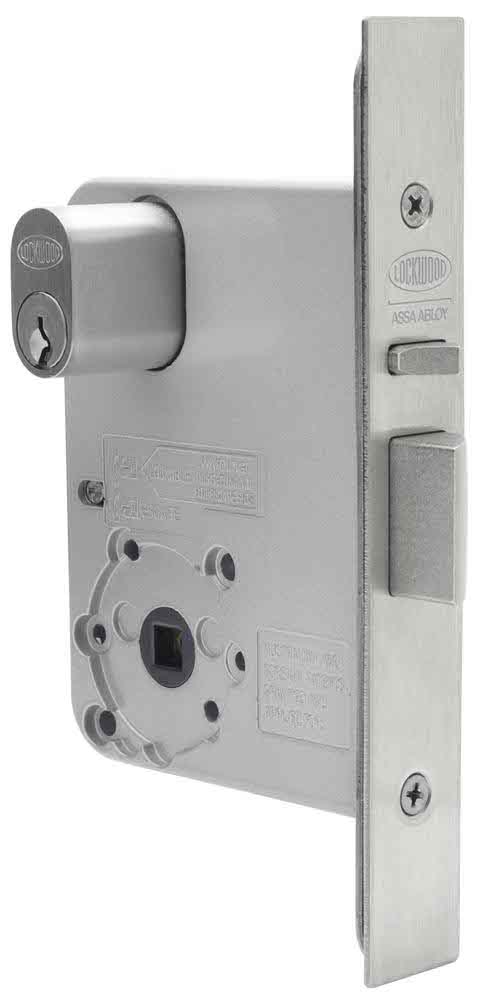

3572SC: 3572 Series Primary Lock
3572 Vestibule Mortice Locks
Our expert team has specialised
training & experience to help
find the right solution for your
business.
POSMarket SKU: Z17345
3572 Vestibule Mortice Locks
| 3572 Series Primary Lock | ||
| Case and Cover Plates | High purity zinc alloy material cases and stainless steel cover plates Brass plates provided for plated finishes available in square and round end | |
| Backset | 60mm standard backset Extended backsets 89 and 127mm are available on application. | |
| Latchbolts | Latchbolts are 15mm, stainless steel. Deadlatching is achieved by an auxiliary stainless steel latchbolt. This auxiliary bolt retracts when the main latchbolt is withdrawn when the door is closed. | |
| Deadbolts | Deadbolts are 19mm, stainless steel. | |
| Springs | High grade spring steel material, corrosion protected. | |
| Cylinder Retaining Pin | Hard-drawn spring steel wire, corrosion protected. | |
| Door Thickness | 32mm to 50mm Locksets to suit thicker doors are available on application. | |
| Door Clearance | To ensure correct functioning of the deadlatching mechanism and security for all locks, the clearance between the door and the frame should be 3mm. However the deadlatching will operate up to 8mm door clearance. | |
| Aluminium Doors | Aluminium door accessory packs and aluminium fix locks are available upon request. Specify SP3570-419 for mounting tabs accessory pack or 3572AFSC. | |
| Security | All 3570 Series Cylinder Mortice Locks conform with Level S2 (Physical Security) Australian Lock Standard (AS-4145.2-1993). Level S3 (Physical Security) is available upon request. | |
| Durability | All 3570 Series Cylinder Mortice Locks conform with level D3 (Durability) Australian Lock Standard (AS 4145.2- 1993). | |
| Fire Rating | Lockwood 3570 Series Mortice Locks have been successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets. | |
| Cylinder | Five pin tumbler mechanism. Standard Lockwood oval shaped brass cylinders and brass barrels. Functions require the use of different cams and adaptors. | |
| Keying | ||
| Standard Keying | Supplied individually keyed with two keys per lock 78,000 key combinations Key blank KB2015P | |
| Restricted Special Keying | Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control. | |
| Lockwood Keying Platforms | ||
| Standard Finishes | Chrome Plate CP Satin Chrome Brushed SC Polished Brass PB | |
| Extended Cylinders | Extended cylinders are available for thicker doors. | |
| Rebate | Rebate kits to suit 13mm standard rebate are available. | |
| Electric Strikes | Lockwood 3570 Series Mortice Locks are compatible with most electric strikes. Refer local sales office for further details. | |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 3572SC | 3572 Series Primary Lock | $154.00 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
Synergy 3572 Vestibule Mortice Locks Datasheet.pdf | 151KB | Download |
|
3572 Series Installation Guide.pdf | 1MB | Download |
