Lockwood 3579ELM0SC
POSMarket SKU: Z17338

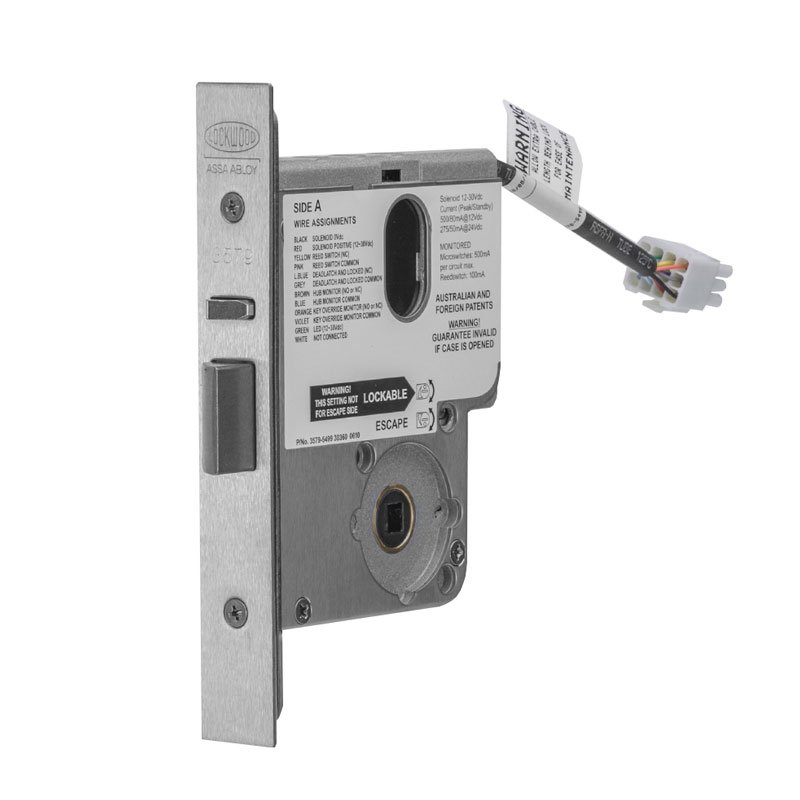

3579 Series Electric Mortice Lock
Product Overview
The 3579 Series Mortice Lock is designed and manufactured in Australia, the 3579 series electric mortice is a high performance lock of superior quality. It is constructed from high grade zinc alloy secured between stainless plates making suitable for high security applications.
The 3579 lock can be operated by push buttons, intercom systems and key switches; or integrated with electronic access control systems for use with higher security devices such as keypads or card readers.
Designed with flexibility in mind, the one lock can cover all functions and is easily configured on site for the required application.
Features
- Stainless Steel Latch and Faceplate
- Stainless steel plates that encapsulate the body against attempted vandalism
- Available in Monitored versions only
- Dead latched and Locked
- Door position/Reed switch
- Dual key override monitoring
- Request to exit/REX
- LED indication
Product Specifications
| 3579 Series Electric Mortice Lock | |
| General | |
| Voltage | 12VDC - 24VDC Operating Voltage |
| Current | 500mA (max) 80mA holding @ 12VDC 275mA (max) 50mA holding @ 24VDC |
| LED Current | When LED’s are fitted, add 15mA (max) to total current draw |
| Monitoring | Dual Key override Deadlatched Locked Door closed Request to exit Microswitches: 500mA (max) @ 30VDC each circuit Reedswitch: 100mA (max) @ 30VDC |
| Environment | |
| Operational temperature range | -20c to + 60c |
| Case/Cover | High purity Zinc alloy construction with Stainless Steel plates |
| Backset | 60mm standard, 89 & 127mm available |
| Latch Bolts | Reversible with Stainless Steel construction |
| Door Clearance | 3 - 6.5mm |
| Door Thickness | Standard applications 32 to 50mm |
| Cylinder Standard | Lockwood oval shaped cylinders |
| Cabling | 1.6 metre length of cable with 12 pin socket supplied with each lock. Recommended cable: 18AWG (0.82mm²) cable runs up to 30m |
| Furniture | Compatible with Lockwood series door furniture |
| Standard Finishes | Satin Chrome (SC) standard |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 3579ELM0SC | Electric Mortice Lock, 60mm Backset, Monitored KOM, PTO/PTL, 12-24V DC (SCEC) | $900.90 | Add to Cart |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
3579 Series Datasheet.pdf | 1MB | Download |
|
3579 Series Installation Guide.pdf | 3MB | Download |
