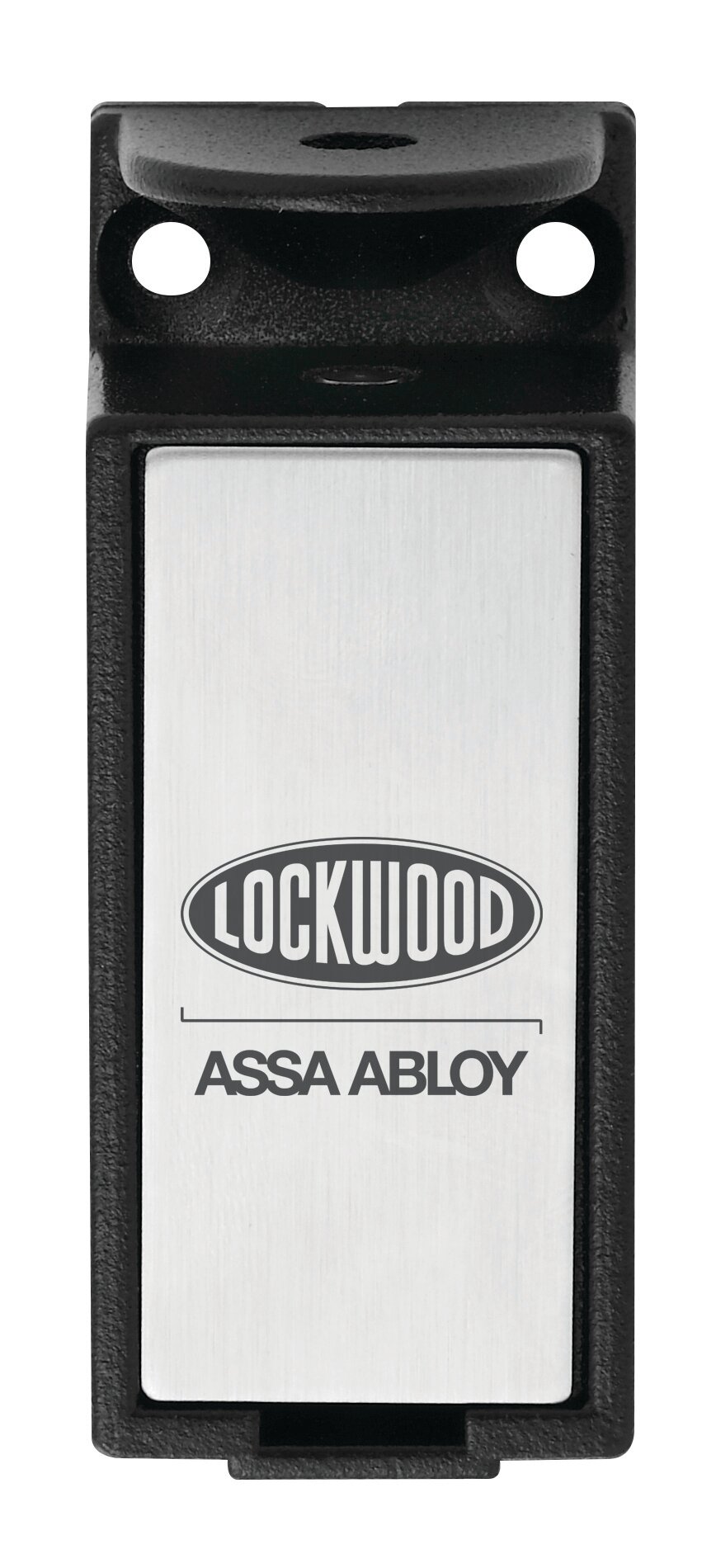

Lockwood EL112-T
POSMarket SKU: Z17353
Electric Cabinet Lock that is non-monitored
Product Overview
Features
- Fail safe/ fail secure changeable on site
- Flexible alignment(has a 5mm XY adjustment after installation.
- Low current consumption: uses only 187mA @ 12Vdc
- Available in 12 or 24Vdc
- self latching in fail secure mode
- Solenoid rated for continuous use
- Tricare 5 year warranty
- Cabinet locking
- Swing or sliding cabinet doors
Product Specifications
| EL110 Electric Cabinet Lock | |
| Part number | 101302-000 |
| General | |
| Voltage | 12Vdc |
| Current | 187mA @ 12Vdc |
| Solenoid | Solenoids are rated for continuous use. |
| Monitoring | None |
| Strength | Holding force 150kg |
| Endurance | Cycle tested to 1,000,000 operations |
| Environment | |
| Operational temperature range | -20c to +60c |
| Body | Cast Aluminium Construction |
| Standards and Compliance | CE Approved C-Tick Certified |
| Specification Statement | The strike which is to be surface mounted and constructed of cast aluminium, should be self latching when used in fail secure mode. The lock must be capable of being changed from fail safe to fail secure on site. Lock alignment must be adjustable up to 5mm in both "x" and "y" directions both during and after installation. The lock should consume not greater than 187mA @12Vdc and have a solenoid rated for continuous use. Electrical certifications must include CE and C -tick. |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 101302-000 | EL110-2 Electric Cabinet Lock, 150kg, PTO, 12V DC | $161.70 | Add to Cart |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
EL110 Electric Cabinet Lock Datasheet.pdf | 134KB | Download |
|
EL110 Electric Cabinet Lock Installation Guide.pdf | 254KB | Download |
