Lockwood EMZ4-SN

from $270.46 (incl. GST)

POSMarket SKU: Z17341

This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

Z4 and Z8 Single Non Monitored Electromagnetic Locks

Product Rating
Product Overview
The Single Series Electromagnetic Locks operate with holding forces from 250kg up to 580kg. Covering a range of applications the Z4 and Z8 Electromagnets are ideal for applications from standard doors through to high use commercial swing doors.

With fixing options including wood, aluminium and steel constructions, as well as glass door applications, the range caters to most electromagnetic needs.

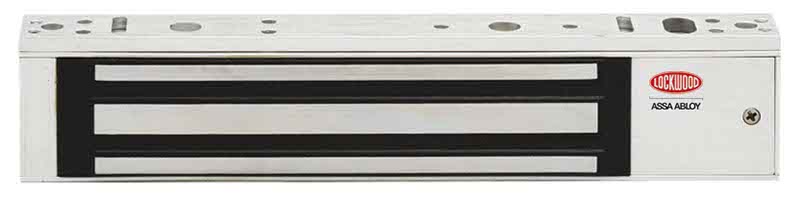

The Lockwood EMZ4-SN is the EMZ4 E/Magnet 12/24Vdc Single Non Monitored version, whilst Lockwood EMZ8-SN is EMZ8 E/Magnet 12/24Vdc Single Non Monitored version.

Features
  • Fail-safe: unlocks when power is removed
  • Easy installation: suitable for both new and retrofit usage
  • High holding force: refer to the technical data overleaf
  • Self-alignment: armature plate pivots to accommodate door drop
  • Silent operation: no humming or buzzing
  • Dual voltage: site selectable 12 or 24 Vdc
  • Instantaneous Release: smart electronics on the Z Series Electromagnets eliminate residual magnetism
Product Specifications

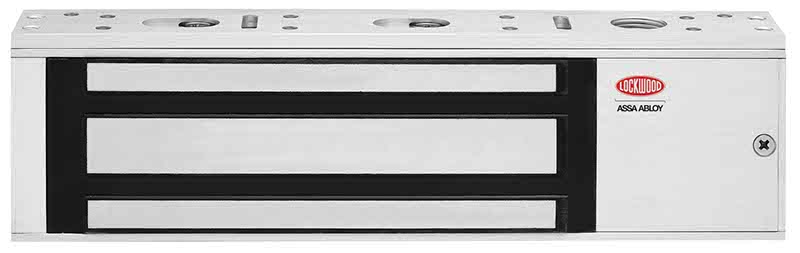

Z8 Magnet
General
Holding Force * 550kg - 580kg
Dimensions (L)266 x (H)72 x (D)40 mm
Voltage 12Vdc/ 24Vdc ±10%
Current 512mA @ (12Vdc) 256mA @ (24Vdc)
Monitoring None
Operating Temperature -10 to 55 Degrees
Operating Humidity 0 - 95%
Holding force is measured directly between armature and magnet, holding force on the door may vary depending on the leverage created.
Applications Aluminium doors
Glass doors
IT Storage rooms
Access control
Surface mount for inswing and outswing doors
Standards and Compliance Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
CE Approved
C-Tick Certified
Specification Statement The Single Series Electromagnetic Lock should be constructed in an aluminium case with heavy duty electromagnet. The range only operates in fail safe mode and relies on a secondary lock or battery backup system. In some cases the magnet armature plate pivots to accommodate door drop. The lock needs to be equipped with "smart electronics" that have zero residual magnetism, (instantaneous release). This is crucial for correct operation.
ModelDescriptionPriceStock
EMZ8-SN Standard Mag, 580kg, Single, Non Monitored, PTL, 12/24V DC $297.41
Call
 Add to Cart
EMZ4 -SN Mini Mag, 280kg, Single, Non Monitored, PTL, Surface Mount, 12/24V DC $270.46
Call
 Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document Z8Z4 Electromagnetic Lock Non Monitored Datasheet.pdf 1MB Download
PDF Document Z4 Electroi Magnetic Lock Assembly.pdf 128KB Download
