POSMarket SKU: Z17326
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

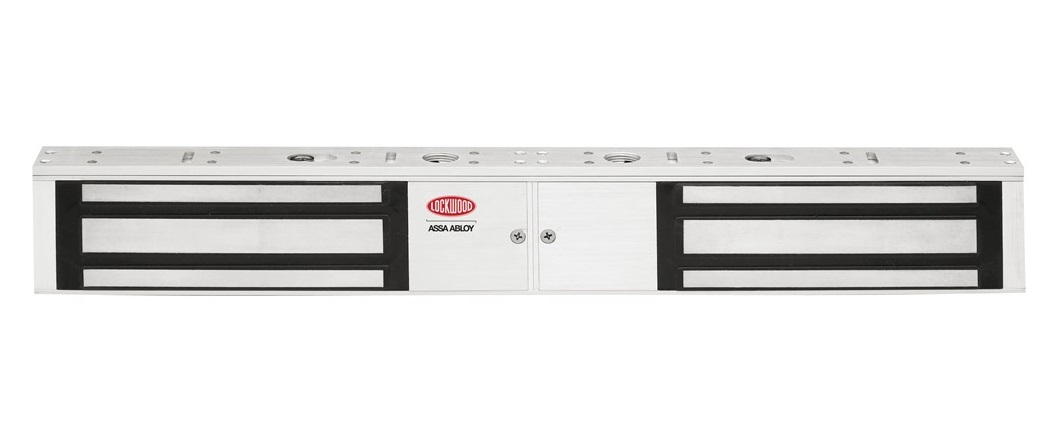

Padde Series Z4 and Z8 Double Monitored Electromagnetic Locks

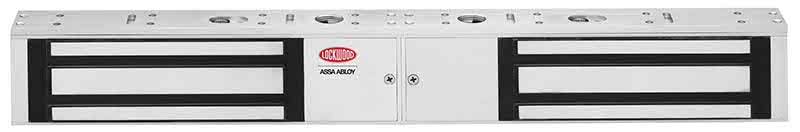

| Z4 Magnet | |
| Holding Force | 500kg - 560kg |
| Dimensions (L) | 476 x (H)48 x (D)27 mm |
| Voltage | 12Vdc/ 24Vdc ±10% |
| Current | 900mA @ 12Vdc 450mA @ 24Vdc |
| Monitoring | Hall-Effect/Bond sensing Reed Switch |
| Operating Temperature | -10 to 55 Degrees |
| Operating Humidity | 0 - 95% |

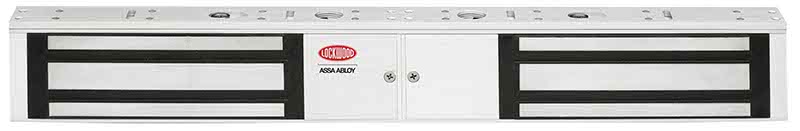

| Z8 Magnet | |
| Holding Force | 1100kg - 1160kg |
| Dimensions (L) | 532 x (H)72 x (D)40 mm |
| Voltage | 12Vdc/ 24Vdc +/-10% |
| Current | 1024mA @ 12Vdc 512mA @ (12Vdc) |
| Monitoring | Hall-Effect/Bond sensing Reed Switch |
| Operating Temperature | -10 to 55 Degrees |
| Operating Humidity | 0 - 95% |
| Holding force is measured directly between armature and magnet, holding force on the door may vary depending on the leverage created. | |
| Specification Statement | The Double Series Electromagnetic Lock should be constructed in an aluminium base with heavy duty electromagnet. The range only operates in fail safe mode and relies on a secondary lock or battery backup system. The lock needs to be equipped with "smart electronics" that have zero residual magnetism, (instantaneous release). This is crucial for correct operation. |
| Standards and Compliance | Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets) CE Approved |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| EMZ8-DM | Standard Mag, 1160kg, Double Monitored, PTL, 12/24V DC | $566.50 | Add to Cart | |
| EMZ4-DM | Mini Mag, 560kg, Double, Monitored, PTL, Surface Mount, 12/24V DC | $488.13 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
Doubles Series Monitored Datasheet.pdf | 1MB | Download |
|
Z8 Double Assembly Guide.pdf | 207KB | Download |
