POSMarket SKU: Z17781

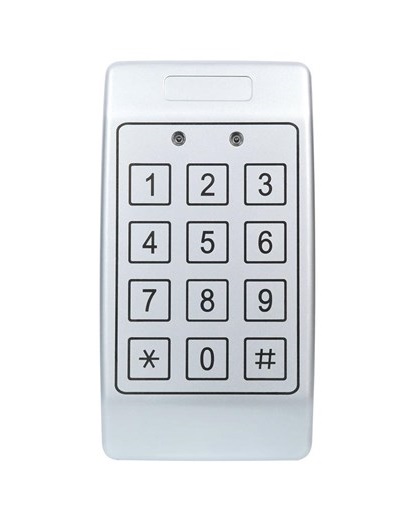

Anti-Vandal Piezoelectric PIN Standalone Controller
| AC-T43 | |
| Electrical Specifications | |
| Operating Voltage Range | 12 to 24VDC, from a regulated power supply 16VAC, from a transformer |
| Input Current | Standby: 15mA, at 12VDC Maximum: 75mA, at 12VDC |
| Tamper | Optical back tamper sensor, O.C. active low 32mA max sink current |
| Relay Outputs | Lock Strike: 3A, N.O. and N.C. Auxiliary: 3A, N.O. and N.C. |
| Inputs | REX: N.O. Dry Contact Auxiliary (In/Monitor): N.O. Dry Contact. 10 Programmable modes |
| Operational Specifications | |
| Keypad | 3x4 Keys for local programming and 4 to 8 digit PIN codes entry |
| Design | Epoxy potted, fully sealed in a rugged metal slim enclosure, high strength construction, High-sensitive Piezo metal keys. Highly suitable for extremely harsh environments. |
| Audio/Visual | Interface for BL-D40 (bell, chime and siren enunciator) Two tri-color LED indicators, Built-in sounder |
| Capacity | 500 Users, single / dual code each |
| User Levels | Normal / Secure, Master |
| Security Modes | Normal, Bypass and Secure |
| Environmental Specifications | |
| Operating Environment | Water resistant, suitable for outdoor use, meets IP65 |
| Operating Temperature | -32°C to 63°C (-25°F to 145°F) |
| Operating Humidity | 0 to 95% (non-condensing) |
| RFI Protection | > 20 V/m up to 1000 MHz |
| Physical Specifications | |
| Dimensions (H x W x D) | 120 x 65 x 27 mm (4.72 x 2.6 x 1.06 in.) |
| Weight | 400g (0.882 lbs) |
| System Components | The BL-D40 alarm, chime and door bell. Push to Exit buttons. |
| Product Warranty | 5-Year Limited Product Warranty |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| AC-T43 | Standalone Piezoelectric IP65 Keypad | $185.76 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
ACT43 Datasheet.pdf | 212KB | Download |
|
ACST43 Family Installation and Programming Manual.pdf | 1MB | Download |
