Concept 995082

$323.40 (incl. GST)

POSMarket SKU: Z16482

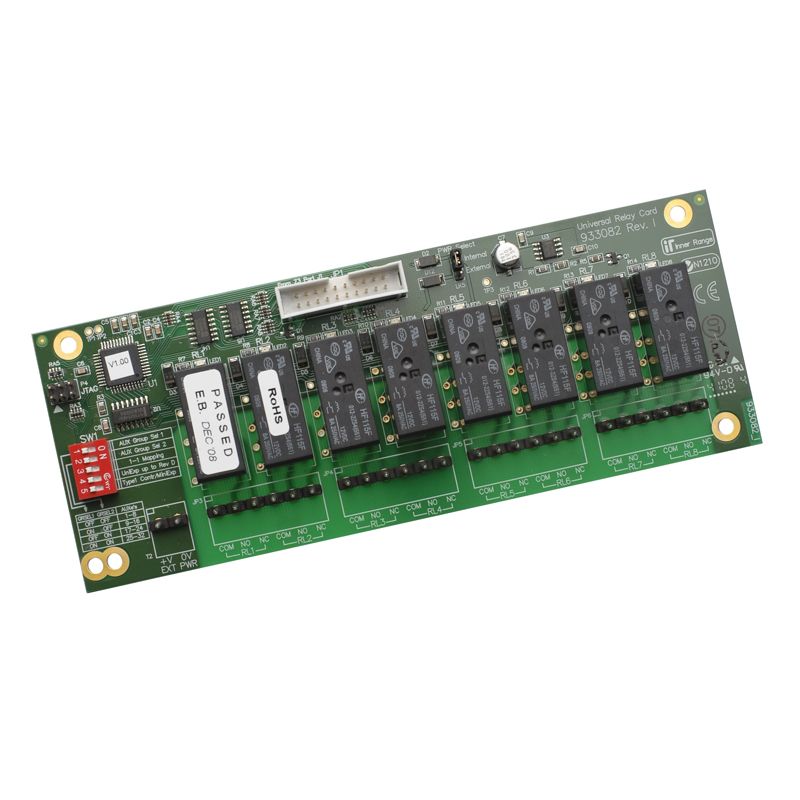

995082: 5 Amp x 8-Way Versatile Relay Board

Versatile 8 Way Relay Board (For Expanders & Control Module)

Product Rating
Product Overview
For general purpose switching applications like process control, warning devices, simple building automation and even control of door locks, etc., the 8 Relay Expander Board adds 8 relays which can switch high-current, low-voltage loads.

One versatile 8-Way relay board can be fitted to a Concept 3000/4000 Control Module and Mini Expander whereas up to 4 may be attached to a single Universal Expander by means of a Relay Extension Cable (995019).

Features
  • 8 Relay outputs
  • Compatible with Concept 3000/4000 Type 0, 1, 2 and 2.5 Controllers
  • Compatible with all Universal Expanders and Mini Expanders
  • Up to four relay cards can be connected to one Universal Expander
  • Ribbon cable and accessories included
  • Powered via host module
Product Specifications
Versatile 8 Way Relay Board
Part number 995082
Physical
PCB Dimensions 180(L) x 68(W) (mm)
Installation Environment 0° – 40°C @ 15% to 85% Relative humidity (non-condensing)
Electrical
Input Voltage to PCB Via host Control Module
Operational Current Min. 60mA (per relay when energised)
Max 480mA (All relays active)
Outputs
Relay outputs 8
Max. switchable current per relay 10A @ 30VDC (resistive load) per relay
Max. combined output current To be included within the constraints of the host Universal Expander
ModelDescriptionPriceStock
995082 5 Amp x 8-Way Versatile Relay Board $323.40
Call
 Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document Catalogue.pdf 7MB Download
PDF Document 995082 Installation Guide.pdf 40KB Download
