Integriti 995087
POSMarket SKU: Z16401
This model is available in 2 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
Concept Fibre Modems
Product Overview
Both Single Mode and Multimode versions of the Fibre Modem are available.
Features
- Multimode Fibre Modems extend Controller LAN up to 3Km
- Single Mode Fibre Modems extend Controller LAN up to 13Km
- Electrical isolation from the remote LAN
- Fibre links immune to earth loops and induced noise
- Immune to propagation of electrical pulses due to lightning
- Supports loop and branch ("Y") configurations
- Redundant LAN path when Fibre Modems used in 'loop' configuration
- Loop Fault’ and ‘Branch Fault’ auxiliary outputs
Product Specifications
| Fibre Modems | |
| Physical | |
| PCB Dimensions | 96(L) x 96(W) (mm) Note: Fibre Connector heads protrude 15mm from PCB |
| Installation Environment | 0° – 50°C@ 15% to 85% Relative humidity (non-condensing) |
| Fibre Optic Connections | Type ST. 62.5/125 820nm multimode cable (Multimode) Type SC. 9/125 1310nm single mode cable (Single Mode) |
| Electrical | |
| Input Voltage to PCB | 11-14VDC (From LAN or separate battery-backed external power supply) |
| Operational Current | Min.: 20mA (idle) Max.: 120mA |
| Optical | |
| Tx Optical Power | -12dBm (typical) |
| Rx Optical Power | -24dBm (minimum for logic operation) |
| Max. Modem to Modem Optical | |
| Cable Distance (Multimode) | 3km |
| Max. Modem to Modem Optical | |
| Cable Distance (Single Mode) | 13km |
| Model | Description | Price | Stock | |
|---|---|---|---|---|

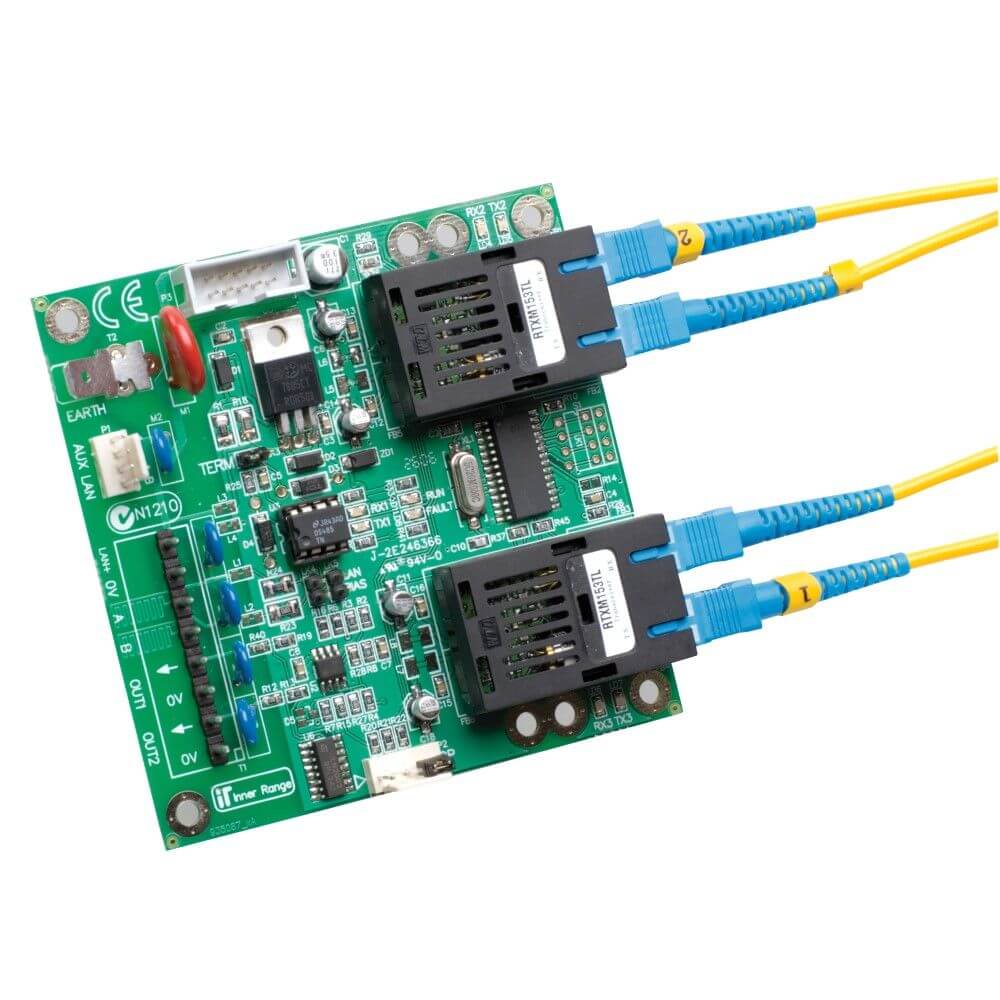

| 995087 | Fibre Modem - Single Mode PCB & Kit | $801.76 | Add to Cart | |

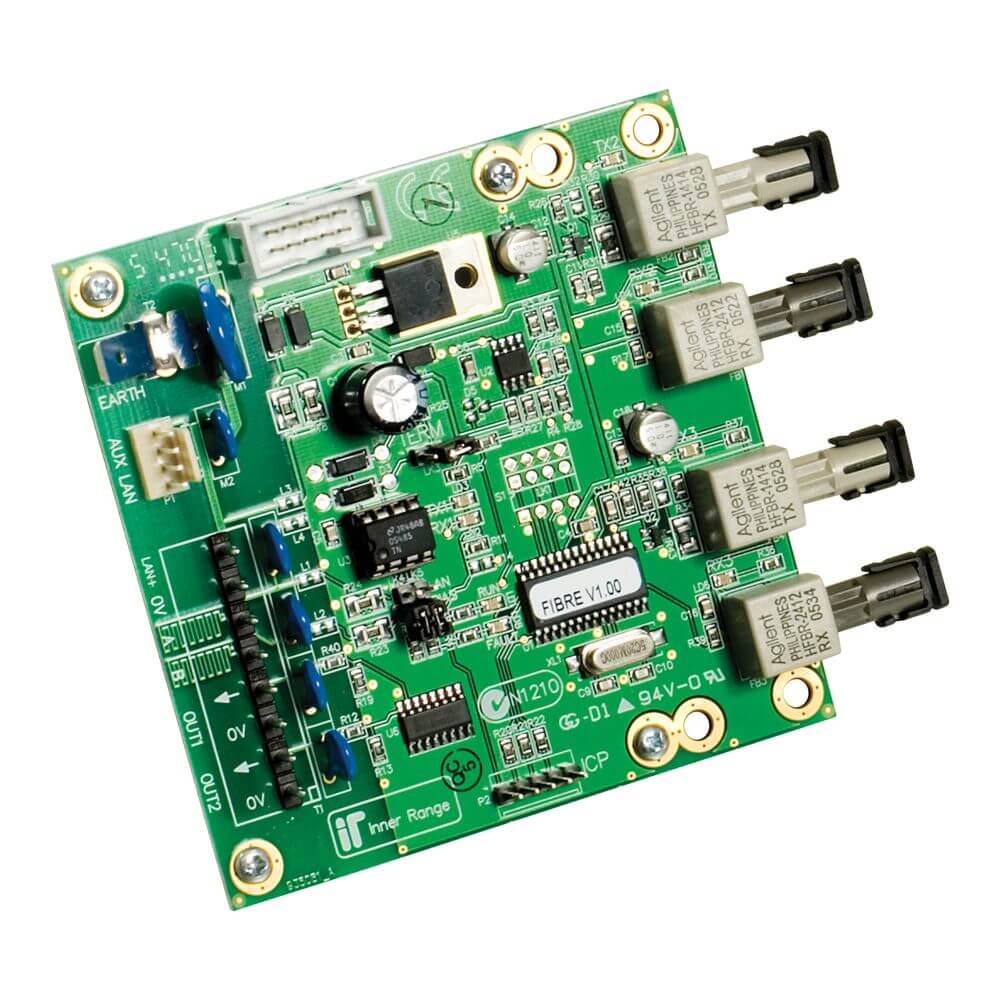

| 995081 | Fibre Modem - Multi Mode PCB & Kit | $801.76 | Add to Cart |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
99508x Fibre Datasheet.pdf | 2MB | Download |
|
995087 Installation Guide.pdf | 63KB | Download |
|
995081 Installation Guide.pdf | 143KB | Download |
Product Videos
Please contact our team for more information using the 'Ask an Expert' form or call us on 1300 737 998.
