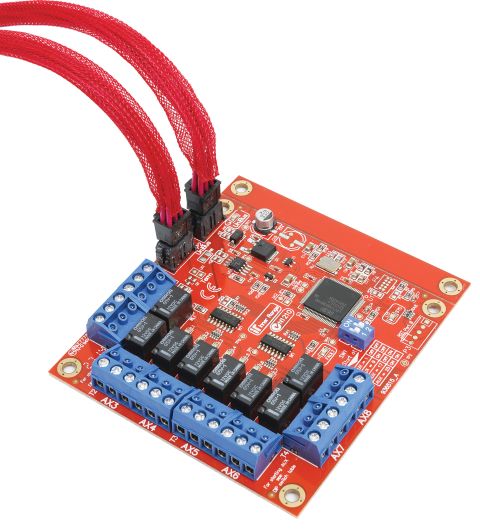

Inner Range Unibus 8 Relay Expander
| Integriti UniBus 8 Relay Output Expander | |
| Pat number | 996515PCB&K |
| Physical | |
| PCB Size Code | Integriti “C†size |
| PCB Size | 94(L) x 94(W) (mm) |
| PCB Size Including Snap Off Strip | 105(L) x 94(W) (mm) |
| Height | 15(D) (mm) (28mm with UniBus cable connected) |
| Shipping Weight | 161grams |
| Installation Environment | 0°C - 70°C @15% - 90% Relative humidity (non-condensing) |
| Electrical | |
| Power Supply Input | 11V to 14V DC via host module |
| Static Current Consumption | 45mA PLUS 16mA per relay Approximately 175mA when all Relays are on. |
| Contact Rating | |
| Maximum Switching Current | 1.0 Amp @ 24VDC. or 0.5 Amp @ 50VAC (Per Relay) NOTE: While the relays have higher AC Voltage contact ratings, the manufacturer does not recommend connection of AC voltages above 50VAC to the relay contact connections. |
| Connections | |
| Relay Contacts | 8 x NO/NC outputs - 24 Connections |
| UniBus Port | 1 |
| UniBus Loop-through Port | 1 |
| Connection to Host Module | Via 270mm UniBus patch lead (supplied) |
| Power Considerations | The UniBus host module supplies DET+ current and static device current to all connected UniBus devices. |
| Total current consumption is, therefore the sum of all | - Static Current of all connected UniBus devices - Static Current of host module - Host module battery charging current - Ancillary devices connected to all DET+ connections - Ancillary devices connected to host module’s RS-485 LAN+ |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 996515PCB&K | UniBus 8 Relay Output Expander to suit ISC / IOEXP | $331.10 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
996515PCBK Installation Guide.pdf | 349KB | Download |
|
996515PCBK Datasheet.pdf | 2MB | Download |
