Integriti 996540PCB&K
POSMarket SKU: Z16189
UniBus Lift Interface (Button Feedback)
Product Overview

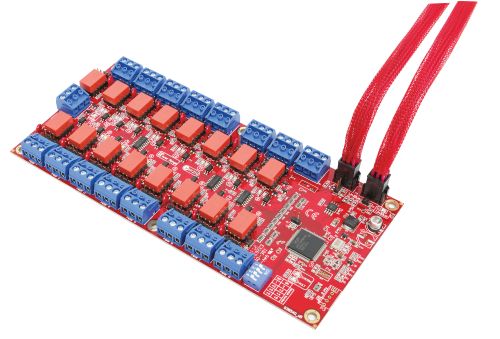

The UniBus Lift Interface device facilitates a low level button feedback interface between Integriti and the lift system. It incorporates input conditioning and switching to provide the isolation required between the two systems.
Using an Integriti UniBus cable, the device connects directly to the Integriti host module or via another UniBus device.
Up to 6 UniBus 16-Floor Lift Interface devices can be connected to a single host module in order to service up to 96 floors per host module. An Integriti Controller can accommodate up to 255 floors.
Features
- Low level with button feedback
- UniBus connectivity
- Compatible with a range of Integriti host modules
- Manage 16 floors per device
- UniBus loop-through connectors
- Connect up to 6 devices per Integriti host module
- Wide range of button input voltages
- Button sense input per floor
- Override input to allow free access mode
- Isolation between lift and Integriti system
- Firmware upgrade over-the-wire
- Integriti 'B' size footprint 200 x 94mm
- Can be installed above other 'B' size PCB's
- This module requires a UNIBUS host (LAN expander - IR-996005PCB&K) when using Inception.
Product Specifications
| UniBus Lift Interface (Button Feedback) | |
| Part number | 996540PCB&K |
| Physical | |
| PCB Size Code | Integriti "B" size |
| PCB Size | 200(L) x 94(W) (mm) |
| Height | 15(D) (mm) (28mm with UniBus cable connected) |
| Shipping Weight | 300grams |
| Installation Environment | 0ºC - 70ºC @15% - 90% Relative humidity (non-condensing) |
| Electrical | |
| Power Supply Input | 11V to 14V DC via host module |
| Static Current Consumption | 55mA PLUS 16mA per relay. Approximately 310mA when all relays are on |
| Contact Rating | |
| Maximum Switching Current | 500mA @ 16 – 48V DC/AC RMS 200mA @ 60 – 110V DC/AC RMS (30W / 62.5VA) 50VAC |
| Connections | |
| Relay Contacts | 16 x NC outputs |
| Override Input | 1 |
| Button Sense Inputs | 16 |
| UniBus Port | 1 |
| UniBus Loop-Through Port | 1 |
| Connection to Host Module | Via 270mm UniBus patch lead (supplied) |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 996540PCB&K | UniBus 16 Floor Lift Interface Card to suit ISC / IOEXP | $906.68 | Add to Cart |
Product Accessories
| Filename | Size | ||
|---|---|---|---|
 |
996540PCBK Datasheet.pdf | 2MB | Download |
