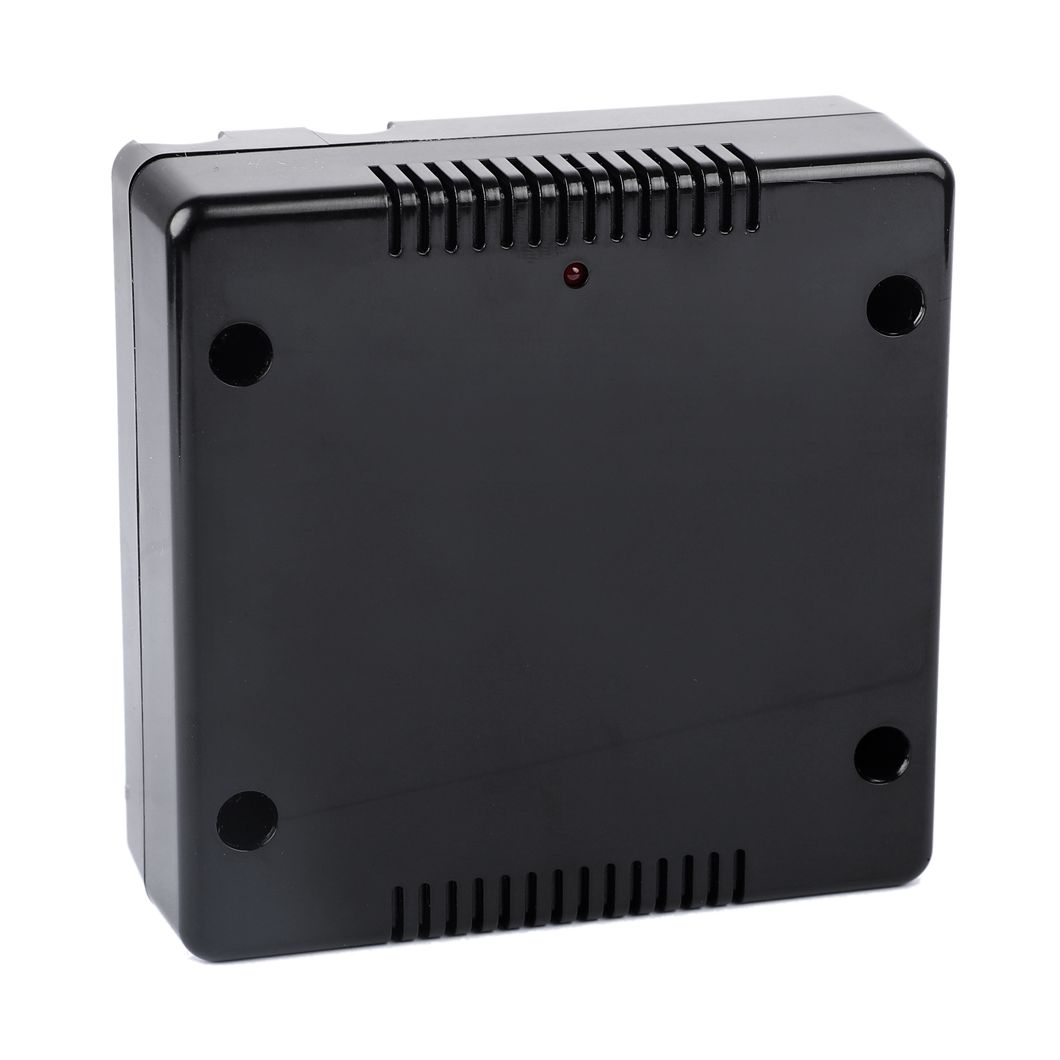

Rosslare MD-25TB

The MD-25TB is a Secure Relay I/O Module for use with Rosslare's Secure Stand-Alone Controller Unit. The secure module provides power to the Controller Unit. The Controller Unit communicates with the secure module through a Rosslare proprietary protocol, providing instructions to activate the lock/auxiliary relays and a built-in speaker (with bell and siren tones).

The secure module also communicates the REX input status to the Controller Unit. A red LED indicates the secure module power status. The secure module includes removable terminal blocks for ease of wiring and installation. The MD-25TB isolates the lock from the Controller Unit, securing lock functionality even if the Controller Unit is tampered with. If the data line between the Controller Unit and the secure module is cut, the system detects the data line has been tampered with and generates a one-minute siren and closes the lock output. In addition, the auxiliary relay can be activated by the Controller Unit.

The MD-25TB is designed to be used together with Rosslare's ME-0515M Multipurpose Power Management Enclosure, providing optimum performance and convenience together with universal AC input and a UPS using a Sealed Lead Acid backup battery inside a spacious metal enclosure.

Features

• Secure Relay I/O Module for use with Rosslare's convertible series readers (AYC)
• Activates the Lock / Auxiliary Relays and the BuiltIn Speaker for Bell, Chime and Siren tones
• Returns REX status back to the controller unit
