Inner Range 994200

$116.46 (incl. GST)

POSMarket SKU: Z16275

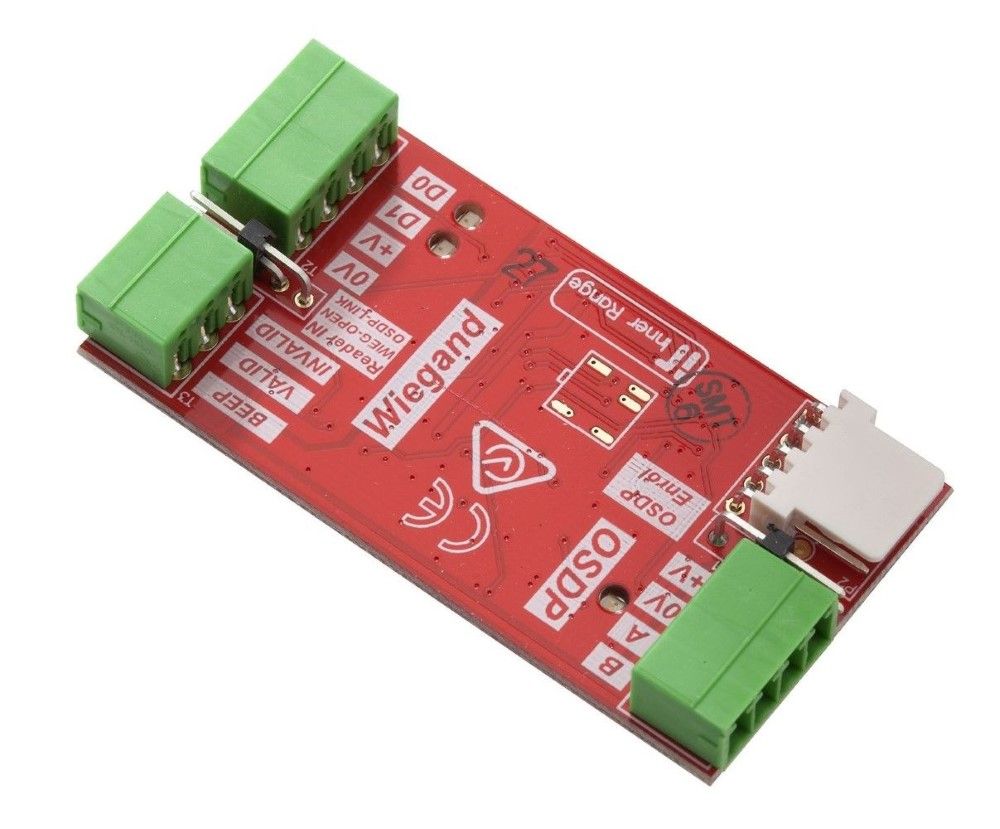

994200: OSDP to Wiegand Converter

OSDP <> Wiegand Converter

Product Rating
Product Overview
The Inner Range OSDP to Wiegand converter is designed to convert credential reader data from OSDP to Wiegand or Wiegand to OSDP.

The device can be configured to provide the following functions:
  • Convert data from a SIFER OSDP reader to Wiegand data for connection to a standard Wiegand reader input.
  • Convert data from any OSDP reader to Wiegand data for connection to a standard Wiegand reader input.
  • Convert data from a Wiegand reader to Inner Range SIFER data for connection to the RS-485 reader input on Integriti or Inception products.
The OSDP <> Wiegand converter is compatible with following Inner Range products
  • Integriti Access Controller (IAC)
  • Standard LAN Access Module (SLAM)
  • Intelligent LAN Access Module (ILAM)
  • Inception Controller
Features
  • Default configuration is preset for use with Inner Range SIFER & RS-485 Reader ports
  • Auto enroll function for SIFER/OSDP Readers
  • Configuration settings for other OSDP readers can be edited including:**
  • BAUD Rate
  • LED Colour assignment
  • LED Brightness
  • Speaker Volume
**Configuration settings are adjusted via a Hyper terminal connection. (Using a 993030USB-Port 0 Lead)
Product Specifications
OSDP <> Wiegand Converter
Part number 994200
Physical
PCB Size 85(L) x 35(W) x 15(D) (mm) Included connectors
Mounting Method Within a secure location - can be mounted using velcro strips
Installation Environment 0º to 65º Celsius. 15-85% Relative humidity (non-condensing)
Reader Protocols
Device Communications OSDP, SIFER & Wiegand
Connections
OSDP Port 4 pin connector +V, 0v, A, B
Wiegand Reader 4 pin connector D0, D1, +V, 0
Wiegand LED & Beeper 3 pin connector Invalid LED, Valid LED, Beeper
Port 0 5 pin connector to suit Port 0 cable (996030USB)
Reader Security
OSDP Communications Bus 128bit AES encryption
Device Configuration
Configurable options include RS-485 OSDP Baud Rate, Wiegand bit length, OSDP reader primary LED colour, OSDP reader 2nd LED colour, SIFER reader LED brightness, SIFER reader speaker volume
Power Requirements
Input 11-14V DC
Current Consumption Idle 20mA - Peak 35mA (Not including any connected readers, LEDS or beepers)
ModelDescriptionPriceStock
994200 OSDP to Wiegand Converter $116.46
Call
 Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document 994200 Datasheet.pdf 3MB Download
