POSMarket SKU: Z16328

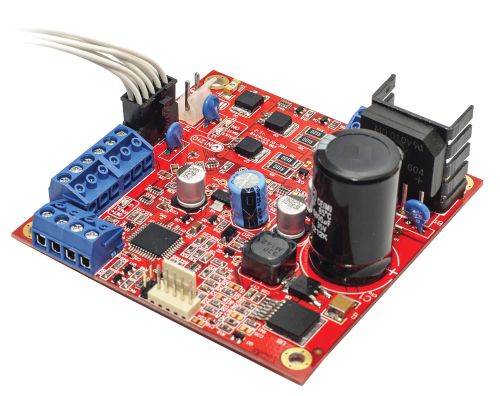

3Amp SMART Power Supply
| 3Amp SMART Power Supply | |
| Part number | 996091PCB&K |
| Physical | |
| Size | 95(L) x 95(W) x 45(D) (mm) |
| Mounting | 4 x M3 screws to Inner Range chassis clips |
| Installation Environment | 0°C - 50°C @15% - 90% relative humidity (non-condensing) |
| Working Temperature Range | -25°C to +50°C ambient unforced ventilation |
| High-Level PSU Status Monitoring (Available when connected to Integriti LAN modules via 10-way Quick-Connect cable) | |
| Status Alarms | AC Failure, Power Supply Low Volts, Battery Fault, Battery Low, Battery Not Present, Power Supply Failure, LAN+ Smart Fuse Tripped, Detector+ Smart Fuse Tripped, Battery Failed Test, Trigger Battery Test |
| Battery Alarm Thresholds | |
| Low Battery Alarm | 11.0VDC |
| Deep Discharge Protection | 10.4VDC |
| Recovery From Deep Discharge | 12.2VDC |
| Connections | |
| Outputs | 10-way Quick-Connect socket for Integriti modules 1 x DET +/- 13.75VDC & 1 x LAN +/- 13.75VDC Battery charger connection (for 12V lead acid battery) Low-level AC Failure output (open collector output) Low-level Battery Fail output (open collector output) External Earth terminal for connection to enclosure |
| Inputs | Start Battery Test Input Trigger (zero volt dry contact input) |
| LED Indicators | |
| Status Indicators | AC OK Battery Charging |
| Fault Indicators | Battery Fault Fault on DET+ Connection Fault on LAN + Connection |
| Power Specifications | |
| Input Voltage | 16VAC, 50hz |
| Input Current | 3Amp with 4Amp transformer fitted and LK1 jumper fitted 1.5Amp with 1.5Amp plug-pack fitted and LK1 jumper removed |
| Output Voltage | 13.75VDC +/-5%, up to 3Amp. (battery fully charged) |
| Max Output Current | 3Amp with LK1 fitted 1Amp with LK1 removed |
| Switching Frequency | 370 kHz. approx. |
| Load Regulation | +0 / -500mV @ Iout = 0.1A to 3.0A |
| Conversion Efficiency | 85%. approx |
| Output Ripple | < 100mVRMS @ full load |
| Battery Types | |
| Recommended Battery | 1 x 7Ah, 9Ah or 18Ah 12V Sealed Lead Acid Only |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 996091PCB&K | 3 Amp SMART Power Supply - PCB & Accessories Kit | $217.53 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
996091PCBK Datasheet.pdf | 4MB | Download |
|
996091PCBK Installation Guide.pdf | 113KB | Download |
Inception 999066AU
Access Control > Power Supply
Tensor 1218
Access Control > Power Supply

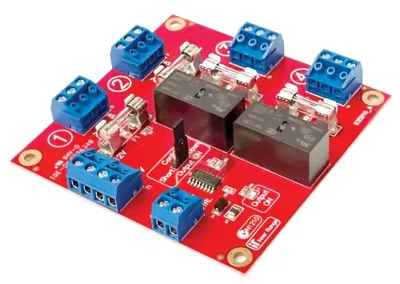

Inner Range 995916
