POSMarket SKU: Z17787

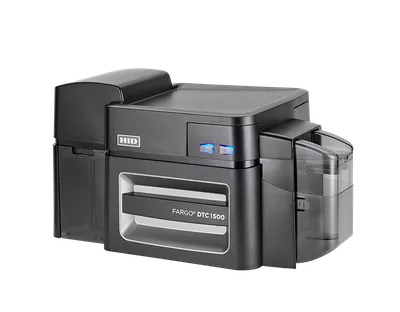

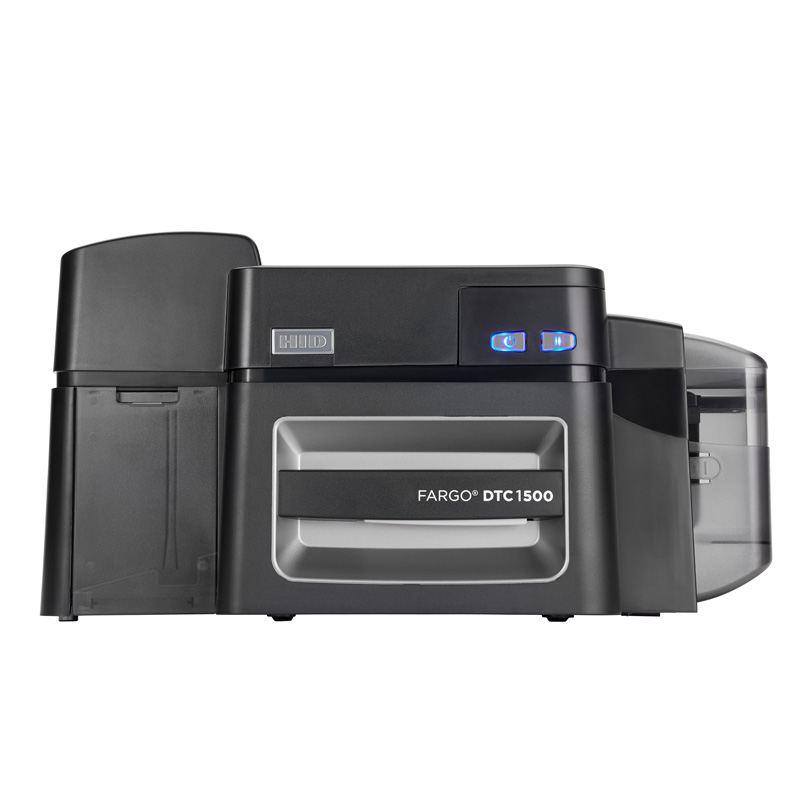

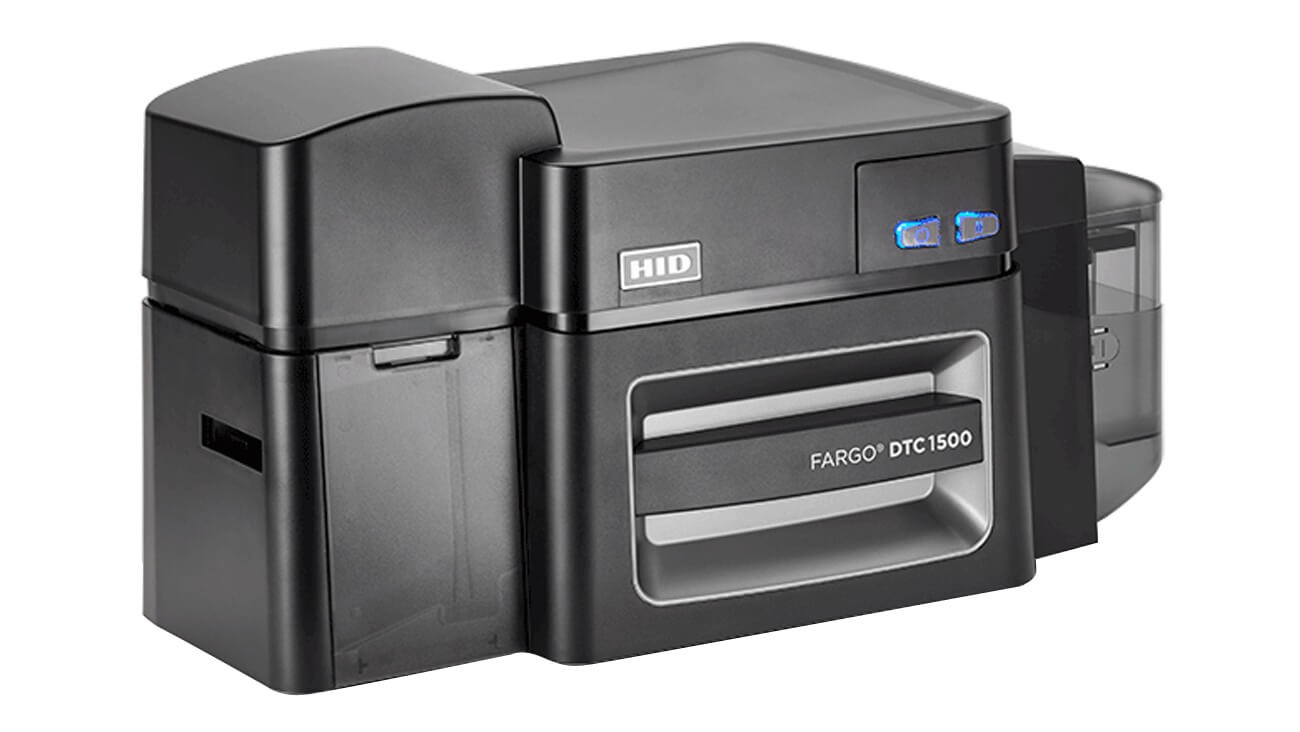

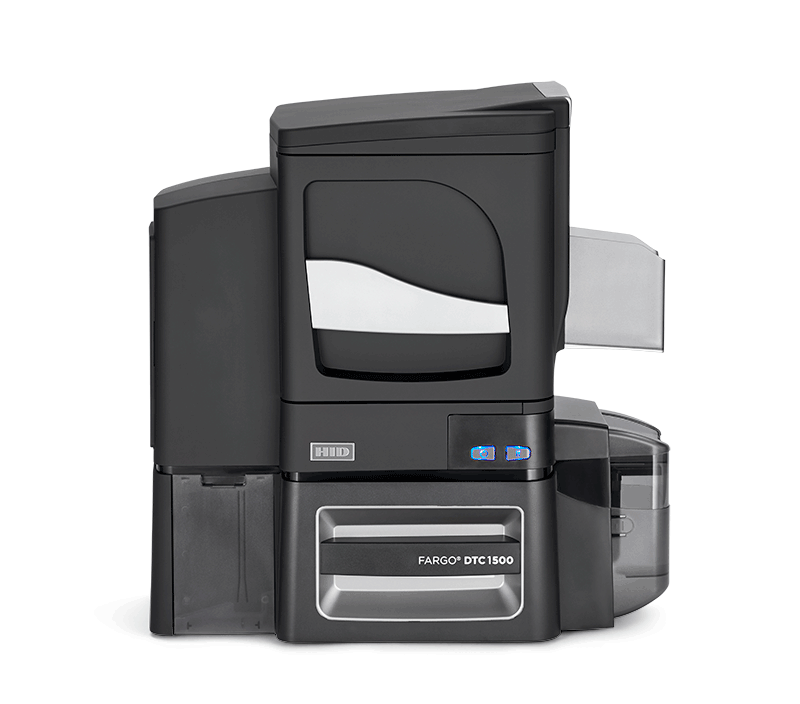

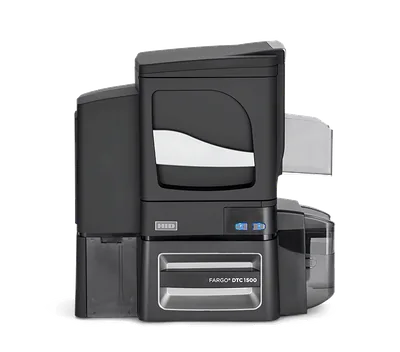

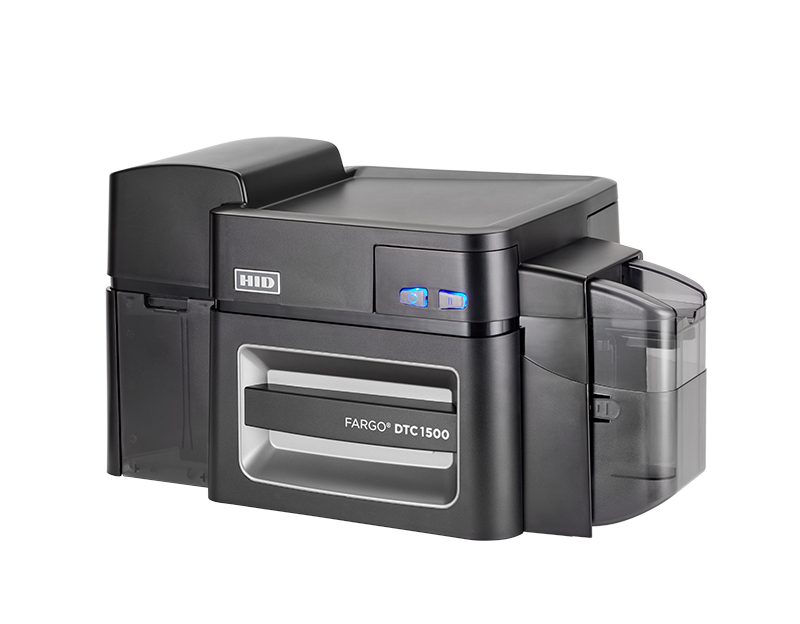

ID Card Printer & Encoder that provides versatility, cost-effective, secure card printing
| DTC1500 | |
| Print Method | Dye sublimation / resin thermal transfer |
| Resolution | 300 dpi (11.8 dots/mm) continuous tone |
| Colors | Up to 16.7 million / 256 shades per pixel |
| Print Ribbon Options | Wide array of eco-friendly, high-capacity print ribbons from K to YMCKOKO. Laminate patch options from full card coverage and half panel polyester overlaminates to off-the-shelf and fully custom holographic overlaminates are all available from HID. |
| Available print ribbons include: | • Full-color with resin black and overlay panel, YMCKO*, 500 prints • Full-color with two resin black panels and overlay panel, YMCKOK*, 500 prints • Full-color with two resin black panels, YMCKK*, 500 prints • Full-color half-panel with resin black and overlay panel, YMCKO*, 850 prints • Full-color half-panel with two resin black panels and overlay panel, YMCKOK*, 650 prints • Full-color half-panel with two resin black panels and overlay panels, YMCKOKO*, 500 prints • Resin black, K*, 3000 prints • Resin white, W*, 2000 prints |
| Print Speed | 6 seconds per card (K*); 16 seconds per card (YMCKO*); 24 seconds per card (YMCKOK*) |
| Accepted Standard Card Sizes | CR-80 (3.375ËL x 2.125ËW / 85.6 mm L x 54 mm W); CR-79 (3.313" L x 2.063" W / 84.1 mm L x 52.4 mm W) |
| Print Area | CR-80 edge-to-edge (3.36"L x 2.11ËW / 85.3 mm L x 53.7 mm W); CR-79 (3.3" L x 2.04" W / 83.8 mm L x 51.8 mm W) |
| Accepted Card Thickness | .009" - .040" / 9 mil - 40 mil / .229 mm - 1.016 mm |
| Accepted Card Types | PVC or polyester cards with polished PVC finish; 100% polyester cards (monochrome resin required); rewrite |
| Input Hopper Card Capacity | 100 cards (.030" / .762 mm) |
| Output Hopper Card Capacity | Up to 100 cards. (.030" / .762 mm) |
| Card Cleaning | Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change |
| Memory | 32 MB RAM |
| Software Drivers | Windows® 7, 8, 8.1 and 10 (32 bit & 64 bit) / Windows Server 2003, 2008, 2012 / Linux* |
| Interface | USB 2.0, Standard Ethernet with internal print server (Ethernet is optional on BIS-certified units) |
| Operating Temperature | 65° to 80° F / 18° to 27°C |
| Humidity | 20 –80% non-condensing |
| Dimensions | Printer: 9.8" H x 18.7" W x 9.2" D / 249 mm H x 475 mm W x 234 mm D Printer + lam: 18.9" H x 18.7" W x 9.2" D / 480 mm H x 475 mm W x 234 mm D |
| Weight | Printer: 11 lbs. / 5 Kg Printer + lam: 20 lbs. / 9.1 Kg |
| Agency Listings Safety | UL 60950-2, CSA C22.2 (60950-07), and CE; EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC |
| Supply Voltage | 100-240Vac, 50-60Hz, 1.6 Amps max |
| Supply Frequency | 50 Hz / 60 Hz |
| Environmental Features | GreenCircle Certified card printer (base models only without encoders), refillable supply cartridges (ECO), and rewrite technology - no ribbon required |
| Warranty | Printer: three years*; Printhead: three years*, unlimited card passes with UltraCard™ |
| Encoding Options (HID Encoders) | Supported smart card and magnetic stripe technologies: 125 kHz (HID Prox) reader; 13.56 MHz (iCLASS Standard / SE / SR / Seos, MIFARE Classic, MIFARE Plus, MIFARE DESFire, MIFARE DESFire EV1/EV2, ISO 14443 A/B, ISO 15693) read/write encoder; contact smart card encoder reads from and writes to all ISO7816 1/2/3/4 memory and microprocessor smart cards (T=0, T=1) as well as synchronous cards; ISO magnetic stripe encoding, dual high- and low-coercivity, tracks 1, 2 and 3 |
| Options | USB 2.0 interface for inline printing and encoding; dual-sided printing module; single- or dual-sided lamination module; smart card encoding modules (contact/contactless); magnetic stripe encoding module; printer cleaning kit; secure proprietary consumables system |
| Software | FARGO Workbench diagnostic utility with Color Assist spot-color matching |
| Display | Color-changing status buttons |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 51400 | DTC1500 Base Model Card Printer with Ethernet | $4,531.45 | Add to Cart |
| Model | Description | Prices From | |
|---|---|---|---|
| POSMarket Card Printer Ribbons | Card Printer Ribbons supplies. | $51.74 | View Product |
| Filename | Size | ||
|---|---|---|---|
 |
DTC1500 Datasheet.pdf | 314KB | Download |
|
DTC1500 Linux User Guide.pdf | 2MB | Download |
|
DirecttoCard Printers Comparison Chart.pdf | 272KB | Download |
|
DTC1500 Consumables Datasheet.pdf | 150KB | Download |
