POSMarket SKU: Z17906
This model is available in 5 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.
The ideal solution for printing on technology-rich smart cards
| HDP5000 | |
| Print Method | HDP® Dye-Sublimation / Resin Thermal Transfer |
| Resolution | 300 dpi (11.8 dots/mm) |
| Colors | Up to 16.7 million / 256 shades per pixel |
| Print Ribbon Options | ** Full-color, YMC*, 750 prints ** Full-color with resin black, YMCK*, 500 prints ** Full-color with two resin black panels, YMCKK*, 500 prints, ** Full-color with resin black and heat seal panel for difficult-to-print surfaces, YMCKH*, 500 prints ** Full-color with resin black and inhibit panel for signature or other non-printing areas, YMCKI*, 500 prints ** Full-color with fluorescing and resin black, YMCFK*, 500 prints ** Resin black, K, 3000 prints |
| HDP Film Options | **Clear (1,500 prints) ** Standard Holographic (500 prints) ** Custom Holographic, special order (500 prints) |
| Overlaminate Options | ** Thermal Transfer Overlaminate, .25 mil thick, 500 prints ** PolyGuard® Overlaminate, 1.0 mil and .6 mil thick, 250 prints (PolyGuard available in a CR-80 patch size) All overlaminates available in clear, standard holographic design or custom holographic design |
| Print Speed | |
| Batch Mode | **Up to 24 seconds per card / 150 cards per hour (YMC with transfer) ** Up to 29 seconds per card / 124 cards per hour (YMCK with transfer)* ** Up to 40 seconds per card / 90 cards per hour (YMCKK with transfer) ** Up to 35 seconds per card / 102 cards per hour (YMCK with transfer and dual-sided, simultaneous lamination) ** Up to 48 seconds per card / 75 cards per hour (YMCKK with transfer and dual-sided, simultaneous lamination)* |
| Accepted Standard Card Sizes | CR-80 (3.370â€L x 2.125â€W / 85.6mmL x 54mmW) |
| Print Area | Over-the-edge on CR-80 cards |
| Accepted Card Thickness | ** Print only: .030†(30 mil) to .050†(50 mil) / .762mm to 1.27mm ** Print/Lamination: .030†(30 mil) to .050†(50 mil) / .762mm to 1.27mm |
| Accepted Card Types | ABS, Laminated PVC, PET, PETG, proximity, smart and mag stripe cards, optical memory cards |
| Note | ABS and PVC cards are not recommended for use in the HDP5000 Lamination Module. |
| Input Card Cartridge Capacity | 100 cards (.030†/ .762mm) |
| Output Hopper Card Capacity | 200 cards (.030†/ .762mm) |
| Card Cleaning | Replaceable cleaning roller (included with each print ribbon) |
| Display | User-friendly, SmartScreenâ„¢ LCD Control Panel |
| Software Drivers | Windows 8/ 7/ Vista (32bit & 64 bit) / Server 2008 & 2003/ XP; Mac OS X v10.6 / v10.5 / & Linux* |
| Single Wire | USB 2.0 |
| Encoding Options | **ISO Magnetic Stripe Encoding, dual high- and low-coercivity, Tracks 1, 2 and 3 ** Contactless Smart Card Encoder (HID iCLASS® and MIFARE) ** ISO 7816 Contact Smart Card Encoder ** Prox Card Reader (HID read-only) |
| Interface | USB 2.0 (high speed) and Ethernet with internal print server |
| Operating Temperature | 65° to 90° F / 18° to 32° C |
| Humidity | 20 - 80% non-condensing |
| Dimensions: | HDP5000: 11.50â€H x 12.25â€W x 9.25â€D / 292mmH x 313mmW x 235mmD ** HDP5000 + Dual-Sided Module: 11.50â€H x 17.50â€W x 9.25â€D / 292mmH x 445mmW x 235mmD ** HDP5000 + Single-Sided Lam Module: 12.75â€H x 25â€W x 9.25â€D / 324mmH x 635mmW x 235mmD ** HDP5000 + Dual-Sided Module + Dual-Sided Lam Module: 12.75â€H x 30â€W x 9.25â€D / 324mmH x 762mmW x 235mmD ** Lam Module: 12.75â€H x 12.25â€W x 9.25â€D / 324mmH x 313mmW x 235mmD |
| Weight | ** HDP5000: 16 lbs. / 7.3 kg, HDP5000 + Dual-Sided Module: 22 lbs. / 10 kg, HDP5000 + Single-Sided Lam Module: 28 lbs. / 12.7 kg, ** HDP5000 + Dual-Sided Module + Dual-Sided Lam Module: 36 lbs. / 16.4 kg |
| Certifications | UL, CE, IC, FCC Class-A, CCC, BSMI, KC, MIC |
| Supply Voltage | 100-240 VAC, 3.3A |
| Supply Frequency | 50 Hz / 60 Hz |
| Warranty | **Printer – Three years including one year of free printer loaner support (U.S. only); optional Extended Warranty Program (U.S. only), ** Printhead – Lifetime; unlimited pass |
| FARGO Secure Materials | FARGO Card Printer/Encoders require highly specialized media to function properly. To maximize printed card quality and durability, printhead life and printer/encoder reliability, use only HID Secure Materials. HID warranties are void, where not prohibited by law, when non-HID Secure Materials are used. |
| Options | **Dual card input hopper module ** Card lamination module – single-sided or dual-sided (simultaneous)* ** Magnetic stripe encoding ** 200-card input hopper ** Smart card encoding (contact/contactless) ** Dual-sided printing ** Door and cartridge locks ** Printer cleaning kit ** Secure proprietary consumables system • Custom secure holographic HDP Film and over laminate |
| Software | FARGO Workbench diagnostic utility with Color Assist spot-color matching |
| Model | Description | Price | Stock | |
|---|---|---|---|---|
| 89680 | HDP5000 Base Model, Dual Sided Card Printer with Dual Side Laminator | $17,982.39 | Add to Cart | |

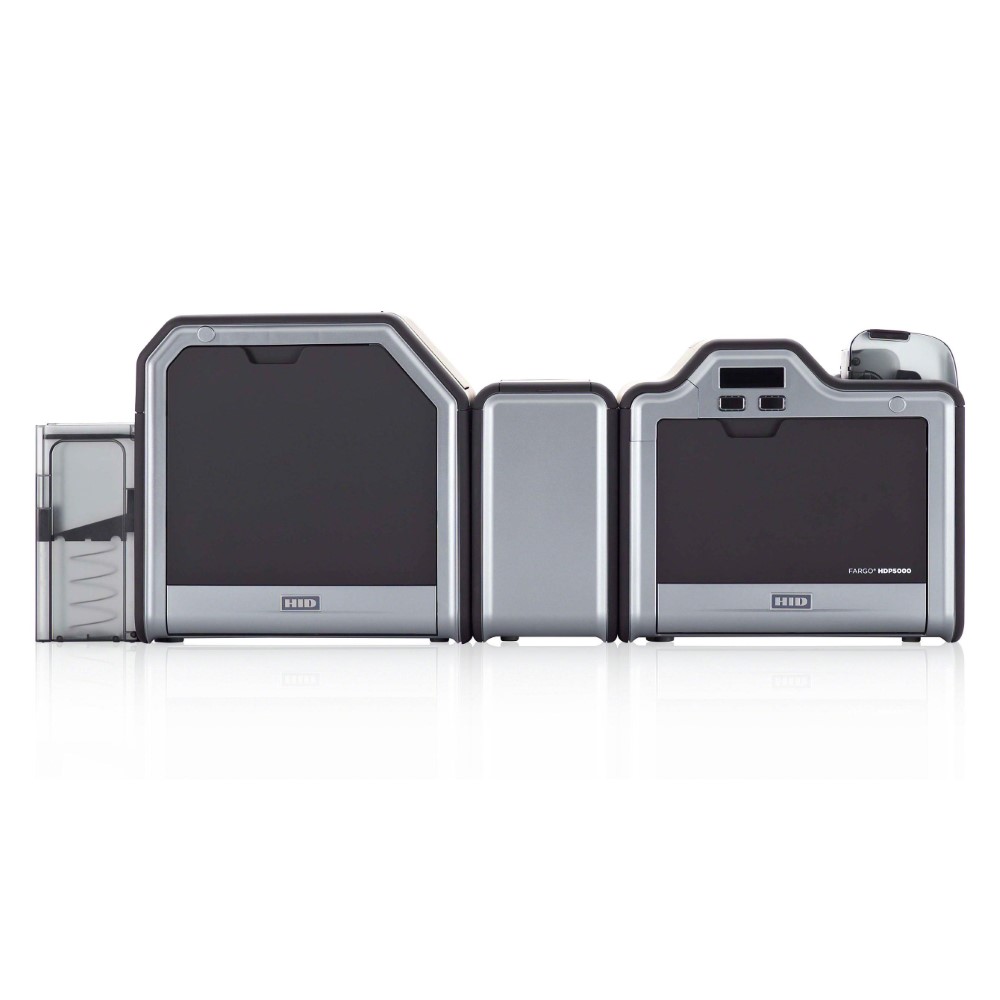

| 89660 | HDP5000 Base Model, Dual Sided Card Printer with Single Side Laminator | $16,135.35 | Add to Cart | |

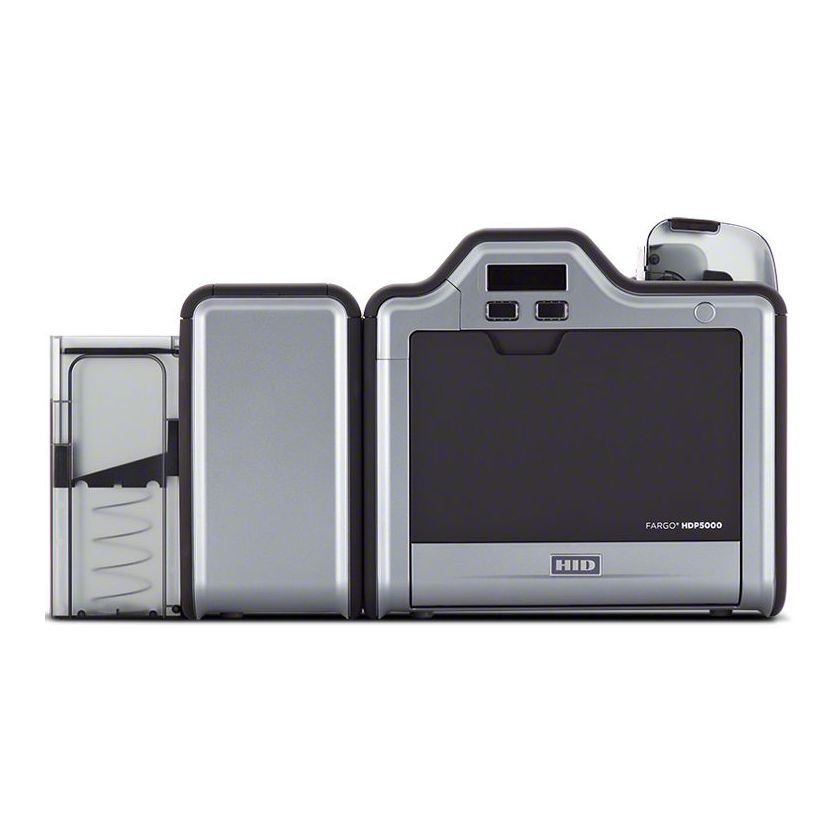

| 89603 | HDP5000 Base Model, 16MB Memory, Dual Sided, 110-240V AC, HID Prox, Omnikey | $10,433.50 | Add to Cart | |
| 89601 | HDP5000 Base Model, ISO Magnetic Stripe Encode | $8,825.16 | Add to Cart | |

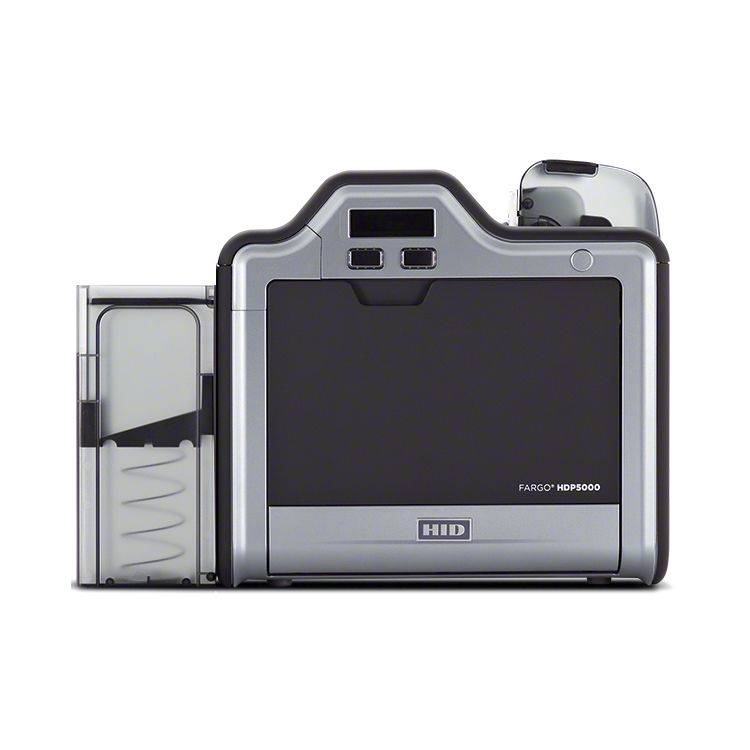

| 89600 | HDP5000 Base Model, 16MB Memory, 110-240V AC | $7,710.59 | Add to Cart |
| Filename | Size | ||
|---|---|---|---|
 |
HDP5000 Consumables.pdf | 140KB | Download |
|
HDP5000 Datasheet.pdf | 85KB | Download |
|
DP5000 Brochure.pdf | 631KB | Download |
|
HDP5000 User Manual.pdf | 4MB | Download |
Fargo DTC1250e
Access Control > Printer

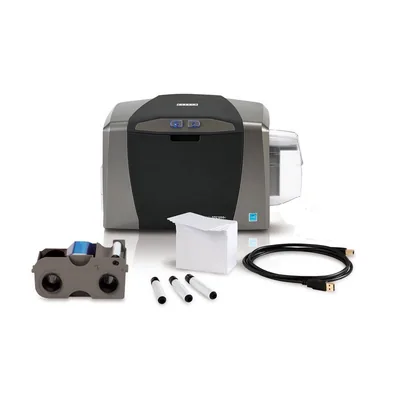

Fargo DTC1250e ID Kit
Access Control > Printer

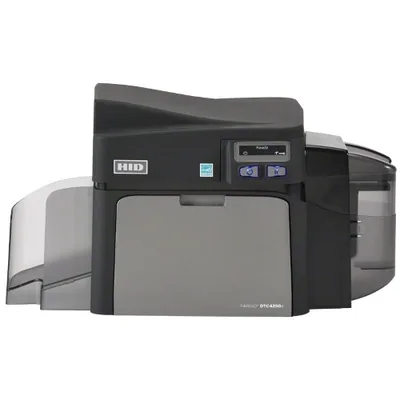

Fargo DTC4250e
