Fargo FlexSmart

from $5.87 (incl. GST)

POSMarket SKU: Z17908

This model is available in 3 different configurations. Select a configuration from the list below or contact one of our experts on 1300 737 998 for help.

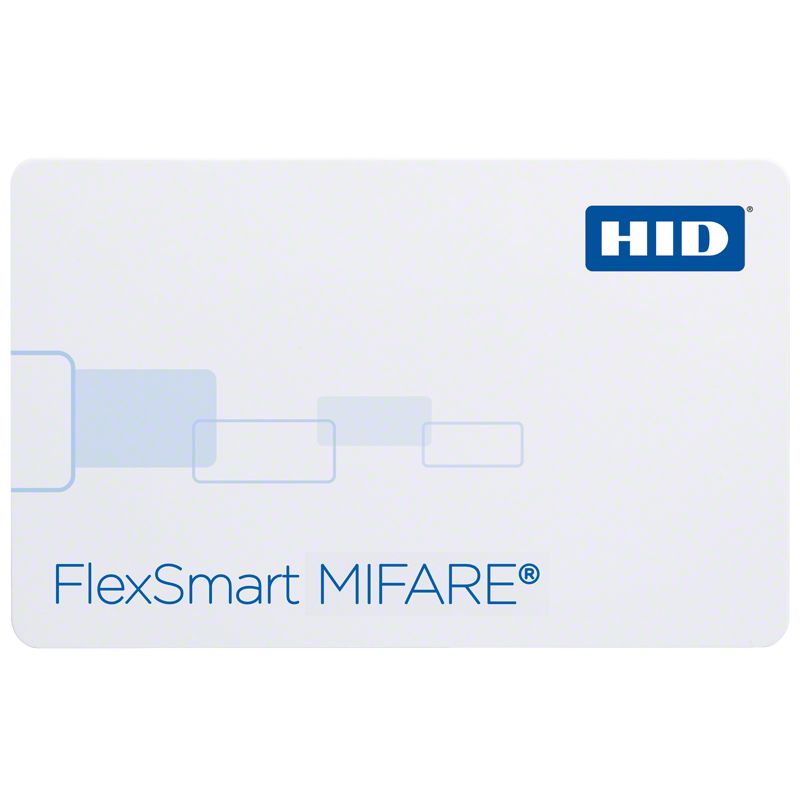

13.56 MHz Contactless FlexSmart MIFARE® Cards

Product Rating
Product Overview
The HID's FlexSmart MIFARE offerings encompass the industry's broadest range of open standard contactless smart card products. HID MIFARE is a credit card-sized credential ideal for diverse applications such as access control, cashless vending, public transportation, corporate and campus applications, event ticketing, customer loyalty and photo ID cards.

Manufactured to the highest quality standards, HID MIFARE credentials have the memory structure and capacity to store multiple applications on a single credential. Securely separated sectors, each protected by a set of two keys and programmable access conditions, allow complex applications and provide for future expansion. The data on the card is protected with encryption keys used in the mutual authentication process. Therefore, no important data will be shared until the card and reader have been authenticated to each other.

When security and performance count most, HID's FlexSmart MIFARE cards can be produced with visual security and anti-counterfeiting features such as holograms, ultra-violet fluorescent inks, micro-printing or a custom logo to quickly and easily identify genuine cards.

Features
  • High Security - Mutual authentication, data encryption and unique 32-bit serial number
  • Read/Write Functionality - Ideal for e-Purse functions
  • Offers extremely consistent read range. Use is unaffected by body shielding or variable environmental conditions, even when close to keys and coins
  • Can be used with all direct image and thermal transfer printers
Product Specifications
Dimensions 2.125” x 3.375” x .03” (5.4 x 8.57 x 0.076 cm)
Weight 0.20 oz. ( 6 g )
Typical Maximum Read Range Up to 4” (10 cm)
Operating Temperature Model 1430, 1440 PVC Cards: -40 to 122o F (-40 to 50o C)
Model 1436, 1446 Composite Cards: -40 to 158o F (-40 to 70o C)
Operating Humidity 5%-95% Non-condensing
Operating Frequency 13.56 MHz
RF Interface ISO 14443 A, Parts 1-3
Transaction Time < 100 ms
Baud Rate 106 kbps
Memory Type EEPROM, 1Kbyte (8,192 bits) or 4 Kbytes (32,768 bits)
Multi-Application Memory MIFARE 1K: memory arranged in 16 64-byte Sectors
MIFARE 4K: memory arranged in 40 Sectors: 32 sectors of 64 bytes, 8 sectors of 256 bytes
Write Endurance 100,000 cycles min.
Data Retention 10 years min.
Material and Finish Gloss white/white PVC or PVC/Polyester Composite
Card Marking Inkjet Standard, Laser Engraving optional
Custom Graphics Optional
Slot Punch Vertical slot punch optional
Programming Factory or Field Programmable
Part Number Model 1430 PVC MIFARE 1K Card
Model 1440 PVC MIFARE 4K Card
Model 1436 Composite PET/PVC MIFARE 1K Card
Model 1446 Composite PET/PVC MIFARE 4K Card
Description MIFARE Card, ISO Thick, Photo Imageable
Warranty Lifetime - see Sales Policy for complete details
ModelDescriptionPriceStock
1440 MIFARE Contactless Smart Card, 4k Memory with 40 Sectors $11.17
Call
Add to Cart
1430 MIFARE Contactless Smart Card - 1k Memory with 16 Sectors, Blank, Local $9.63
Call
Add to Cart
1430HPROG MIFARE Contactless Smart Card - 1k Memory, 16 Sectors, (Custom Prog by HID), MOQ 100 $5.87
Call
Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document FlexSmart MIFARE Cards Datasheet.pdf 136KB Download
PDF Document FlexSmart Credential Comparison Chart.pdf 151KB Download
