HealthSafe BVBBN4B

$378.13 (incl. GST)

POSMarket SKU: Z16624

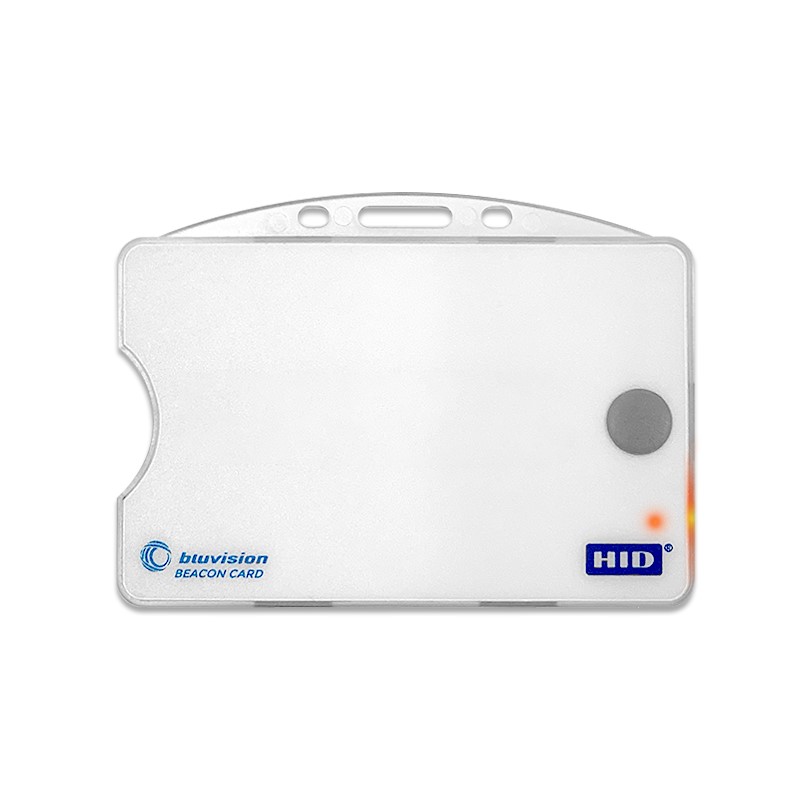

BVBBN4B: HID BluVision BEEKs Duress Badge, BLE Beacon with Provisioning

Duress Badge

Product Rating
Product Overview

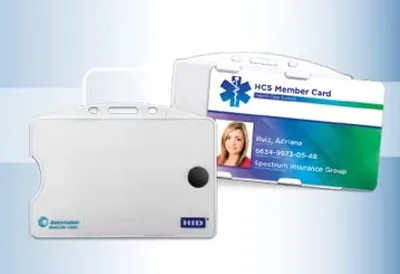

The HealthSafe BVBBN4B HID BluVision BEEKs duress badge is designed to hold a personalised ISO card (with optional RFID) and contains a duress button on the back side of the badge which generates emergencies onsite. While providing the real time location of individuals, it also provides full transparency of who is onsite and where whilst giving the individual the capability to advise emergency situations.

The duress badge is designed to hold a personalized ISO card (with optional RFID) in horizontal format. BEEKs Keyfob provides an audible alert in addition to the LED and may be used either for duress applications or for physical distancing applications (BEEKs Aware function) to help keeping people safe from infectious diseases. BEEKs BLE beacons are available in multiple form factors and sensor configurations for different applications like Real-time Location (RTLS) for assets, condition monitoring of motorized equipment or retail use cases to interact with smartphones in an Apple iBeacon or Google Eddystone compatible format.

Features
  • Supports Eddystone, iBeacon and sBeacon protocols
  • Built in duress call button and LED
  • Location precision down to 2m
  • Fast and easy roll out
  • Usage options include: personalised (for locating individuals) or anonymously (for utilising in reports)
  • Water and UV resistant
Product Specifications
Duress Badge
Part number BVBBN4B
Electronic
BlueTooth communication Bluetooth Low Energy 4.1, 2.4 GHz ISM
BLE Protocols Eddystone, iBeacon, sBeacon
Sensitivity -97dBm
Transmission power -40dBm to +5dBm (~3 m to ~150 m line of sight range)
Processor type ARM Cortex M3 and M0
Data rates 1Mbit/s / 2Mbit/s
Memory 55KB Flash
Sensors Motion, 3 axis Accelerometer, step counter
Special Features Duress alert button + LED
Physical
Length x Width 2.5 in x 3.5 in x 0.19 in (64 mm x 89 mm x 5 mm)
Mounting Method Clip
Housing Material Polycarbonate and ABS
Color White + transparent frame
Weight 0.85 oz (24 g)
Battery
Type Six CR2016, rated at 90 mAh each. Total 540mAh
Life RTLS mode, dynamically advertisement when walking adv every 500ms and when no motion adv every 5000ms: 2 years
Chemical and mechanical resistance
Water IP67, 68° F (20° C), 3.3 ft (1 m) x 1 h
Withstands Exposure To Water and UV resistant
Thermal
Storage -4° to +170° F (-20° to +77°C)
Operating Temperature -4° to +170° F (-20° to +77° C)
Other
Standards FCC / CE; BLE
Options
Possible reactions to button press 1. Email as part of policy
2. Alert to screen and to alert report
3 API call to activate / present alert on custom dashboard or customers legacy systems.
Box Size 10 pcs.
Warranty 1 year
ModelDescriptionPriceStock
BVBBN4B HID BluVision BEEKs Duress Badge, BLE Beacon with Provisioning $378.13
Call
 Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document HID BluVision BEEKs Duress Badge Datasheet.pdf 397KB Download
