HID 1431

$10.49 (incl. GST)

POSMarket SKU: Z17591

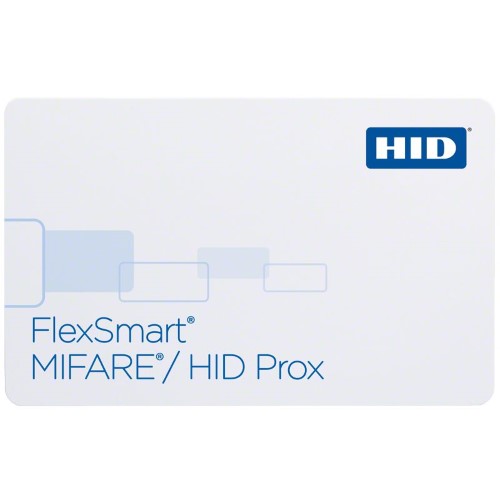

1431: Proximity and MIFARE Contactless Smart Card - 1k Memory with 16 Sectors

The FlexSmart MIFARE Classic®/HID Prox® Combo Card

Product Rating
Product Overview
HID's Proximity and FlexSmart® MIFARE Classic contactless smart card combines smart card technology with the benefits of HID's proven proximity smart card technology. The contactless proximity smart card can be used for diverse applications such as access control, cashless vending, public transportation, event ticketing, customer loyalty and photo ID cards. Securely separated sectors enable multiple applications and support future growth. Different keys can protect read/write operations to build key hierarchies in the system.

As a transition solution, the proximity smart card is ideal for companies that want to add MIFARE Classic smart card applications to an existing HID proximity technology access control system. Manufactured to the highest quality standards, HID Proximity and MIFARE Classic smart card credentials have the memory structure and capacity to store multiple applications on a single smart card credential. The data is protected with encryption keys used in the mutual authentication process. Therefore, no important data will be shared until the proximity smart card and reader have been authenticated to each other.

When security and performance count most, HID's FlexSmart MIFARE Classic contactless proximity smart cards can be produced with visual security and anti-counterfeiting features such as holograms, ultraviolet fluorescent inks, micro-printing or a custom logo to quickly and easily identify genuine cards.

Features
  • Multiple Formats - Supports all HID proximity card formats, including Corporate 1000,
  • Transition Solution - Add smart card applications to existing HID proximity card technology access control system,
  • High Security - Mutual authentication, data encryption and unique 32-bit serial number.
  • Proven, Reliable Technology - Offers extremely consistent proximity card read range. Unaffected by body shielding or variable environmental conditions, even when proximity smart card is close to keys and coins.
  • Multiple Memory Types - Available in MIFARE Classic 1K and 4K.
  • True Credit Card Thickness - Use with all direct image and thermal transfer printers.
Product Specifications
MIFARE Classic®/HID Prox®1431 Combo Card
Typical Maximum Read Range MIFARE Classic: Up to 4" (10 cm)
Prox: 2" - 4.5" (5.0 - 11.4 cm)
Dimensions 2.125" x 3.375" x .03" (5.4 x 8.57 x 0.084 cm)
Card Construction Gloss white/white PVC or PVC/Polyester Composite
Operating Temperature Model 1431, 1441 PVC Cards: -40 to 122° F (-40 to 50° C)
Operating Humidity 5%-95% Non-condensing
Operating Frequency 125 kHz Prox and 13.56 MHz MIFARE
RF Interface ISO 14443 A, Parts 1-3
Transaction Time < 100 ms
Baud Rate 106 kbps
Memory Type EEPROM, 1Kbyte (8,192 bits) or 4 Kbytes (32,768 bits)
Multi-Application Memory MIFARE Classic 1K: memory arranged in 16 64-byte Sectors
MIFARE Classic 4K: memory arranged in 40 Sectors: 32 sectors of 64 bytes, 8 sectors of 256 bytes
Warranty Lifetime
ModelDescriptionPriceStock
1431 Proximity and MIFARE Contactless Smart Card - 1k Memory with 16 Sectors $10.49
Call
Add to Cart
Product Accessories
Not all accessories and consumables are listed on our website. Please contact one of our experts using the 'Ask an Expert' form or call us on 1300 737 998 if you don't find what you're looking for.
FilenameSize
PDF Document Card Technology Guide.pdf 2MB Download
PDF Document MIFARE_HID Prox Combo Card Datasheet.pdf 125KB Download
PDF Document FlexSmart Credential Comparison Chart.pdf 151KB Download
