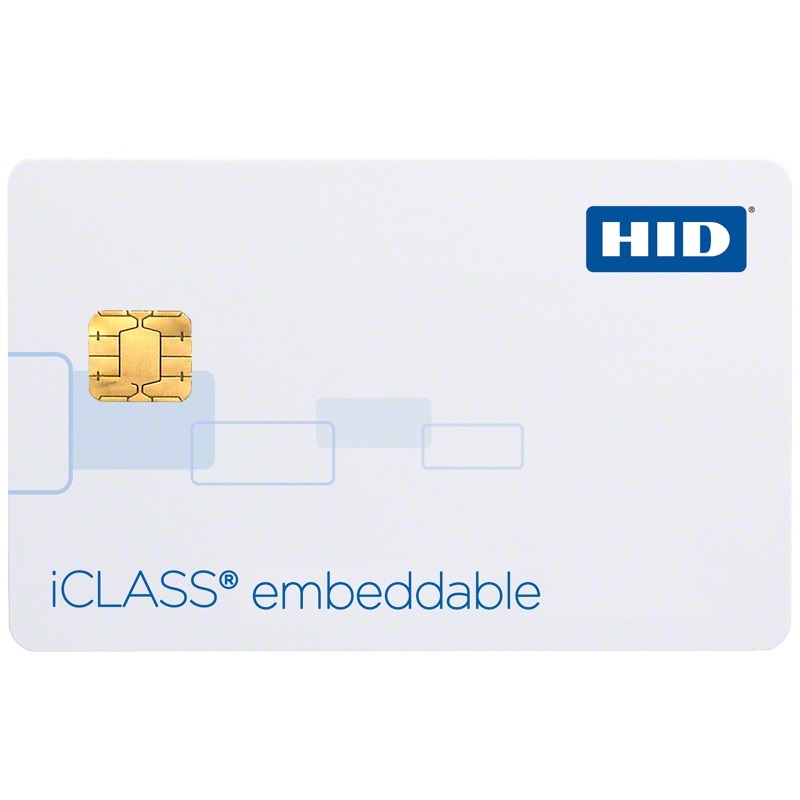

iCLASS ® Embeddable Card | |
Typical Maximum Read Range* | R10 2-3†R30/RW300 2.0-3.5†R40/RW400 2.5-4.5†RK40/RWK400 1.0†- 3.0-4.0†Dependent upon installation conditions. |
Dimensions | 2.127" x 3.375" x 0.033" max. (5.40 x 8.57 x 0.084 cm) |
Weight | 0.20 oz. (5.7g) |
Card Construction | Durable composite PVC/PET, optimized for HID HDP 5000 printer |
Operating Temperature | -40° to 158° F (-40° to 70° C) |
Operating Humidity | 5-95% non-condensing |
Operating Frequency | 13.56 MHz |
RF Interface | As suggested by ISO/IEC: 15693 read/write 14443B read/write (16k only) |
Transaction Time | <100 ms typical |
Baud Rate | 14443 B2 mode - 212 kbps 1444B mode-106 kbps 15693 read/write - 26 kbps |
Memory Type | EEPROM, read/write |
Multi-application Memory | 2k bit (256 Byte) card – 2 application areas 16k bit (2k Byte) card– 2 or 16 application areas 32k bit (4k Byte) card – 16k bits in 2 or 16 application areas plus 16k bits user configurable. |
Write Endurance | Min. 100,000 cycles |
Data Retention | 10 years |
Model | Description | Price | Stock | |
---|---|---|---|---|
2111 | iClass Composite Embeddable Smart Card, 16k bit with 2 app areas | $21.86 | Add to Cart |
Filename | Size | ||
---|---|---|---|
![]() |
iClass Composite Embeddable Smart Card Datasheet.pdf | 234KB | Download |
![]() |
iCLASS Credential Comparison Chart.pdf | 138KB | Download |
